Video to ASI, IP and QAM Converter
Converts Video signals to ASI, IP and QAM. This encoder/converter will take multiple input types, SDI, HDMI, VGA, Component, or Composite (High and Standard Definition) and convert them to an ASI, IP and QAM output.
- General Details

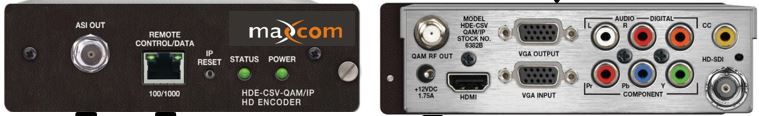

The HDE-CSV-QAM/IP accepts one (1) high-definition (HD) program from any of the following inputs: 1xComponent, 1xHD-SDI, 1xHDMI (unencrypted), 1xVGA, and 1xComposite.The DSE24A is a single channel HD encoder with RF QAM and IP outputs. The unit encodes an uncompressed video source from devices with HD-SDI, HDMI, high-resolution component, composite or VGA outputs. It encodes the incoming video to MPEG2. It will simultaneously output an ASI and IP stream, it is then internally connected to a QAM modulator and low-noise upconverter. The HDE-CSV-QAM/IP comes as a small, modular desktop model but can be rack-mounted in just 1RU of height by using the optional 19” rack mounting panel. Control and access is through a GUI-based menu via Web browser.
Distribution is over legacy coaxial networks or via IP, and provides DVB-ASI output as well. This provides instant access to an extensive network of digital displays capable of viewing valuable ad-based or informational video in a vibrant high-definition format.
FEATURES
• Accepts one program from any of the following inputs:
- 1xComponent
- 1xHD-SDI
- 1xHDMI (unencrypted)
- 1xVGA
- 1xComposite
• Simultaneously delivers:
- 1xQAM
- 1xIP
- 1xASI
- Provides +40 dBmV QAM RF output level
- Provides full QAM output coverage from 5 to 1002 MHz (sub channels T7-T14, and 2-158)
- Supports custom video and transport stream bit rate settings
- Supports user-defined PSIP configuration
- Supports Real-time Dolby® Digital audio encoding
- Supports Closed Captioning EIA-608 and EIA-708
- Provides comprehensive GUI-based monitoring and control via standard Web browsers
- Compact design permits installation of up to 3 Encoder modules in 1R

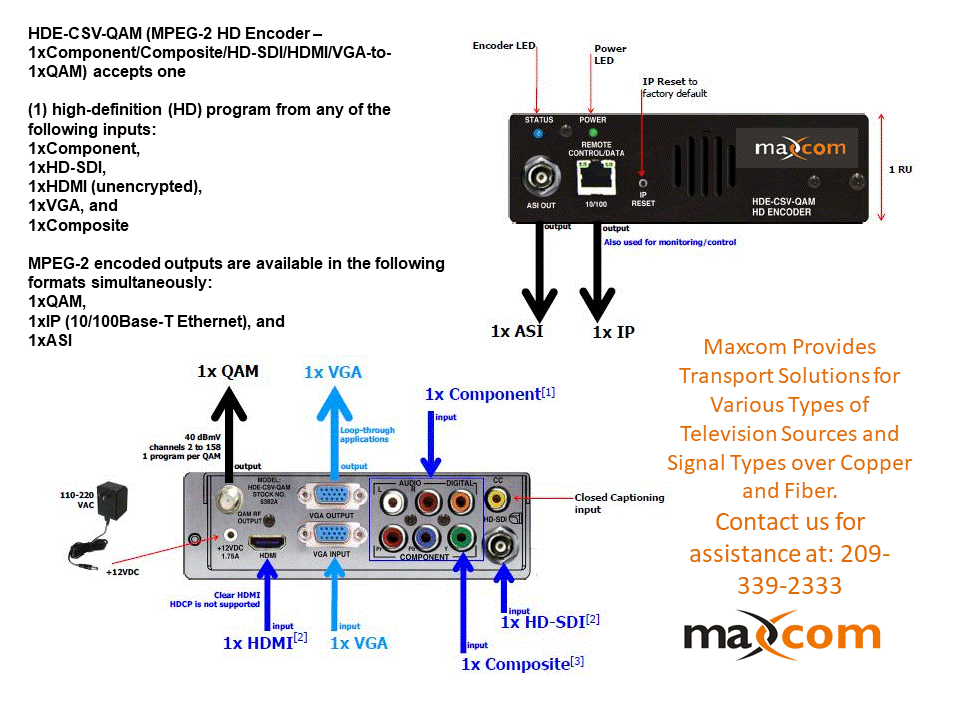

- Example Application
- Model Selection
- HDE-CSV-QAM (Main MPEG-2 HD Encoder unit)
- HDE-3MCH (optional 1RU Rack Mount Chassis, can hold 3 units in 1RU)
- Specifications
INPUTS:
HD-SDI
- Connector(s): 1x BNC
- Standard: SMPTE 292M
- Video Resolution: 480i, 720p, & 1080i
- Audio: Embedded PCM and pass-through Dolby® Digital only
Component
- Connector(s): 3x RCA for Video (Y, Pb, Pr)
- Video Resolution: 480i, 720p, & 1080i
- Video Aspect Ratio: 4:3 & 16:9
- Audio: 2x RCA for Analog Audio (L, R)
1x RCA for Digital Audio (PCM)
HDMI
- Connector(s): 1x HDMI
- Bit Rate: Variable and Constant
- Video Resolution: 480i, 720p, & 1080i
- HDCP Encryption: Not Supported
- Audio: Embedded PCM & pass-thru Dolby® Digital only
VGA
- Connector(s): 2x Female VGA (Input + Loop-through Output)
- Video Resolution: 640×480 @ 60 fps
800×600 @ 60 fps
1024×768 @ 60 fps - Audio: 2x RCA for Analog Audio (L, R)
1x RCA for Digital Audio (PCM)
Composite
- Connector(s): 1x RCA for Video (Y)
- Video Resolution: 480i
- Audio: 2x RCA for Analog Audio (L, R)
1x RCA for Digital Audio (PCM)
ENCODING PROFILE
Video
- Output Format: MPEG-2 HD MP@ML; ISO 13818-2
- Chroma: 4:2:0
- Resolution: 480i, 720p, & 1080i
- Frame Rate: 29.97 fps (480i); 29.97 fps (1080i); 59.97 fps (720p)
- Aspect Ratio: 4:3 & 16:9
- GOP Structure: I & P frames (user selectable)
- Transport Rate: Variable (user selectable)
- Video Bit Rate: Variable (user selectable)
- Video Pre-filter: Variable (user selectable)
- Color Space: YCbCr and RGB
Audio
- Output Format: Dolby® Digital
- Sampling Rate: 48 kHz
- Bit Rate: Variable; 96 – 448 Kbps
Closed Captioning
- Component: EIA- 608; 1x RCA (CC)
- SDI: EIA-708; Embedded in HD-SDI input
- HDMI: EIA- 608; 1x RCA (CC)
- VGA: EIA- 608; 1x RCA (CC)
- Composite: EIA- 608
OUTPUTS
RF QAM
- Connector(s): 1x “F” Female (Rear-panel)
- Modulation: QAM 16, 32, 64, 128, and 256
- Standards: ITU-T J.83; Annex A and B
- Frequency Range: 5 to 1002 MHz
- Tuning: CATV Channel Selectable (T7 to T14, 2 to 158)
- Channel Bandwidth: 6 MHz
- RF Level: +40 dBmV ±1 dB
- RF Level Adjustment: +35 to +42 dBmV, 0.5 dB increment
- Frequency Stability: ± 5 kHz over 32 to 122 °F (0 to 50 °C)
- Frequency Tolerance: ± 0.5 kHz @ 77 °F (25 °C)
- Phase Noise: -98 dBc (@ 10 kHz)
- Spurious: -60 dBc
- Broadband Noise: -70 dBc (@ +40 dBmV output level, 5.5 MHz bandwidth)
- Impedance: 75 Ω
- Return Loss: 14 dB typical
- Signal-to-Noise Ratio (SNR): 40 dB typical
- MER: 40 dB typical
- I/Q Phase Error: Less than 1 degree
- I/Q Amplitude Imbalance: Less than 1%
IP
- Connector(s): 1x RJ45 (Rear-panel)
- Standard: 100/1000Base-T Ethernet
- TS Bitrate: Variable (user-selectable)
- UDP/RTP: Supported (user-selectable)
ASI
- Connector(s): 1x BNC (Front-panel)
- Format: DVB-ASI
- Standard: Variable (user-selectable)
- TS Bitrate: Variable (user-selectable)
GENERAL
Mechanical
- Dimensions: (W x D x H): 5.65 x 14.10 x 1.72 inches (143.5 x 358.1 x 43.7 mm)
- Weight: 1.75 lbs (0.795 kg)
- Operating Temperature: 32 to 122 °F (0 to 50 °C)
- Storage Temperature: -13 to 158 °F (-25 to 70 °C)
- Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
- Storage Humidity: 0 to 95% RH @ 35 °C max, non-condensing
Power
- Power: External Power Supply
(Input 115-230VAC / Output 12VDC @ 3 Amp) - Dissipation: 20 W
Alarms/Monitoring/Control
- Local Monitoring: 1x Power LED
1x Status LED - Local Control: 1x IP Reset Button
- Remote Monitoring/ Control: GUI-based menu via Web browser
(1x RJ45 (rear-panel); 100/1000Base-T, also used for IP output)
