Return Path Transmitter 5~204 MHz RF over Fiber
The MX-TR1x10-R5-204 is a one way return path optical transmitter. Primarily used to transmit return RF signals (5~204MHz) over fiber.
- General Details
The MX-TR1x10-R5-204 is a one way return path optical transmitter. Primarily used to transmit return RF signals (5~204MHz) from a hub or OTN to a headend over fiber.

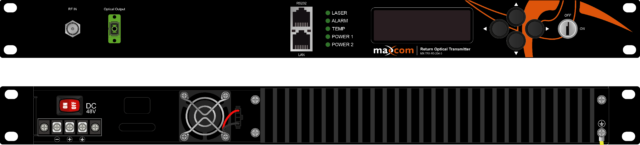

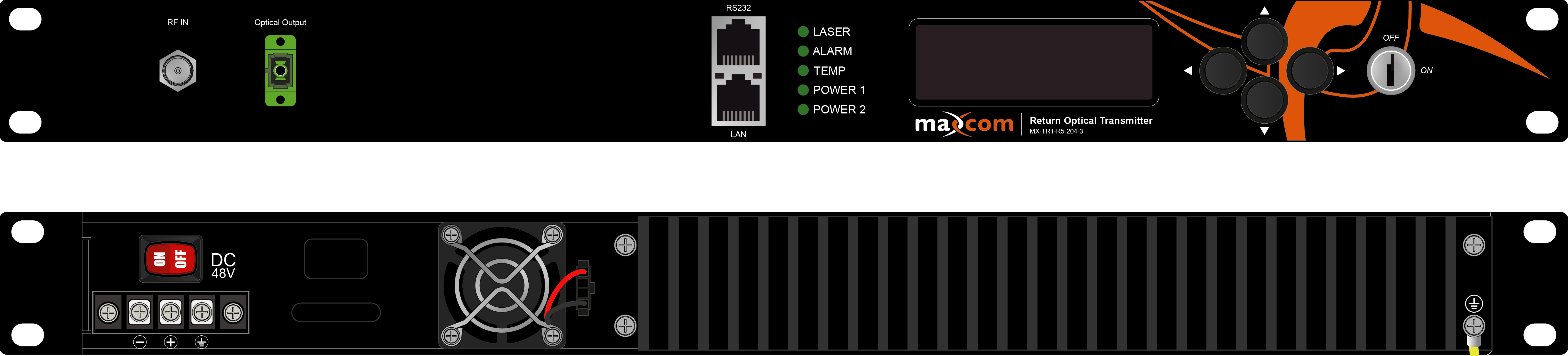

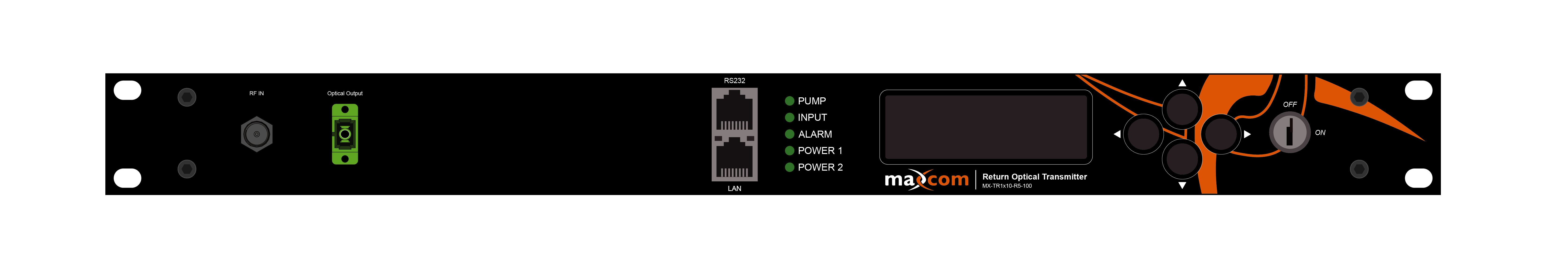

The transmitter has an LCD display interface, four buttons, and an RJ45 network interface.
Simple plug and play ease of operation. Reliable 1550nm laser, with temperature stabilization provided by a thermoelectric cooler ensures maximum performance and longer laser life. The unit is packaged in slim 1RU 1.75-inch high, 19-inch rack-mounted enclosure. Each unit is fitted with a self-contained power supply with 110 VAC input (-48 VDC available)

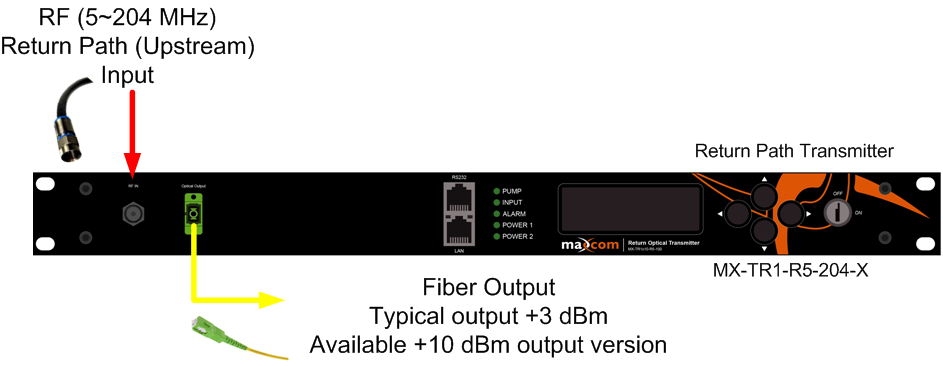

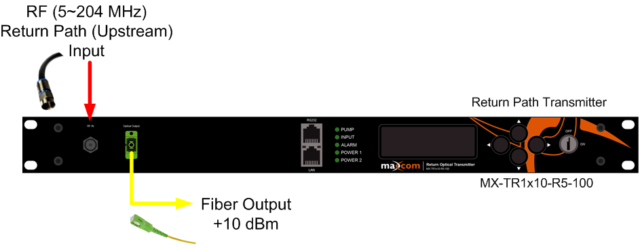

- Example Application
- Model Selection
- MX-TR1x10-R5-204-10 – CATV RF Return Path (5~204 MHz) Fiber Optic Transmitter with +10 dBm output power
- MX-TR1x10-R5-204-3 – CATV RF Return Path (5~204 MHz) Fiber Optic Transmitter with +3 dBm output power
- *Optical Output Power may be customized per customer request
- Specifications
FEATURES
- Return Spectrum RF Bandwidth (5~204 MHz)
- 1550nm Optical Operation
- Front Panel LED Indicators
- +3 to +10 dBm optical output (based on model ordered)
OPTICAL PARAMETERS
- +10 dBm (Model MX-TR1-R5-204-10)
- +3 dBm (Model MX-TR1-R5-204-3)
- 1550nm
OPTICAL WAVELENGTH
- 1550 +/- 20nm
RF PARAMETERS
RF Input Level
- Typical +30 dBmV
Input Impedance
- 75 Ohm
Return Loss
- <14dB RF
- ≥55 Optical
Connection Type
- F Type for RF input
- SC/APC for Fiber output
Bandwidth
- 5 to 204 MHz
Flatness
- +/- 1dB
