SD / SDI to Gigabit Ethernet Converter
MX SDI-IP and MX IP-SDI transports in real-time broadcast quality SD /SDI (SMPTE 259M) or SDTI (SMPTE305M) over standard Gigabit Ethernet networks.
- General Details
MX SDI-IP and MX IP-SDI transports in real-time broadcast quality SD /SDI (SMPTE 259M) or SDTI (SMPTE305M) over standard Gigabit Ethernet networks. It is ideal for transporting SDTV and HDTV content over managed Layer 2 VLAN’s.
- MX SDI-IP auto-detects incoming SD/SDI video signals, converts them quickly and efficiently to IP, and pumps them live over a managed Ethernet LAN/WAN.
- Embittered digital audio and timing information, is also converted.
- Multicast transmission is fully supported , enabling the same video stream to be distributed simultaneously to multiple destinations.
- The system does not compress or decompress the signal, and there are no video quality compromises.
- Jitter control is exceptional, transfer is lossless
- End-to-end latency is low and predictable.
- Any packets dropped by the network are automatically recovered.
- MX –SDI-IP is supported by the a comprehensive management utility for configuring and managing multiple units deployed at different sites through a WAN or VLAN. It offers advanced network and status
monitoring.

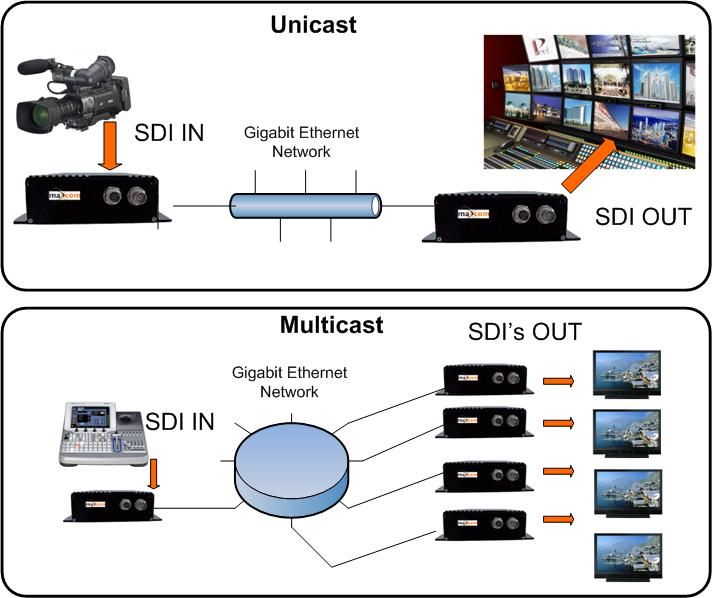

- Example Application
- Model Selection
- MX SDI IP – SD/SDI (SMPTE 259M ) to Gigabit Ethernet converter
- MX IP SDI – Gigabit Ethernet to SD/SDI (SMPTE 259M) converter
- Specifications
APPLICATIONS
- SD/SDI transport over Layer 2 VLAN
- Live or stored content distribution
- Simultaneous unicast or multicast
- Transport of dailies to post facilities
- Telepresence videoconferencing
COMPLIES
- SMPTE 259M and SMPTE305M
- Data rate – SD / SDI 270 Mb/s
SUPPORTS
- Uncompressed SD-SDI video and compressed SDTi video
- Transfers SDI data at full 270 Mb/s rate
DATA INTEGRITY
- Full SD-SDI , All SD-SDI data is transported across the link, including ancillary data such
as digital audio and timing information
MULTICASTING
- Simultaneous distribution through a switch of one video stream to multiple MX IP-SDI
CONFIGURABLE
- Configurable as a transmitter (MX-SDI-IP) or a receiver (MX IP -SDI)
LATENCY
- Tunable
- Adjustable from 750 microseconds to 233 milliseconds
JITTER
- Superior jitter control PCR jitter as low as +/- 100 ns, steady state
- Excellent jitter tolerance +/- 0.3 UI
HOT PLUGGABLE
- Fast, automatic recovery from cabledisconnects or system faults
CLOCK RECOVERY
- Clock frequency on receiver locked over Ethernet link to clock frequency on transmitter
LOST PACKETS DETECTION
- Any packets dropped by the network are automatically recovered.
MANAGEMENT
- Comprehensive utility provided with the unit for configuring and managing.
- Allows configuration of all devices deployed in a LAN/WAN from one PC
- Advanced network and status monitoring capabilities, including number of sent and received packets, packet
re-send requests, lost packets, bandwidth use (up and down stream), etc.
POWER
- 12V DC , 3.95W
