DWDM Mux
Dense wavelength division multiplexing (DWDM) incorporates multiple light wavelengths to transmit and-or receive signals over a single optical fiber. DWDM is a very efficient component of optical networks because it maximizes the use of existing fiber cable and allows new services to added.
- General Details
More Bandwidth over a Strand of Fiber Optic cable

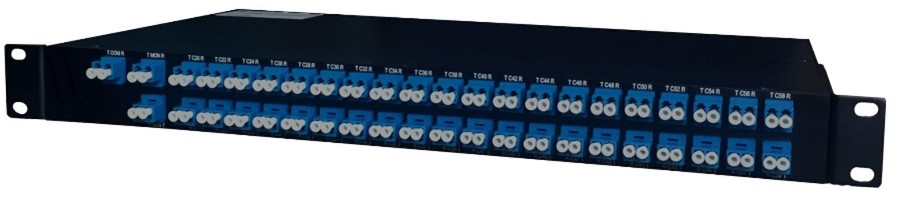

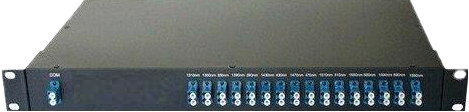

Maxcom Muxes and DeMuxes are a high density, ultra-low loss and standalone passive optical devices. They are configured for up to forty 100GHz spaced channels in a 1U package, maximizing the capacity of the C-band range.

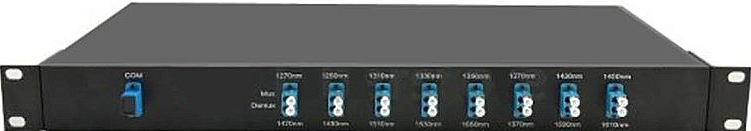

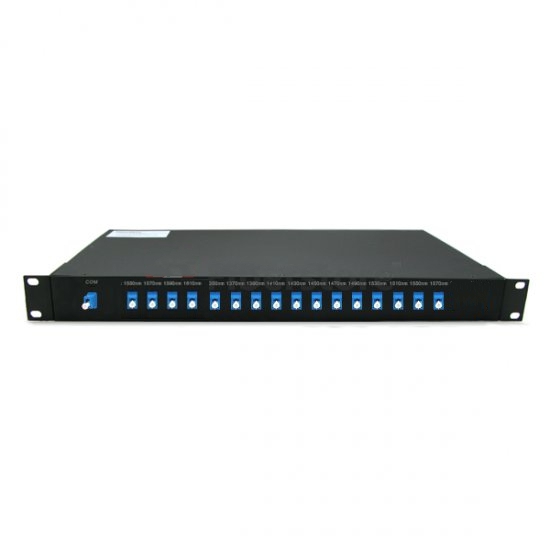

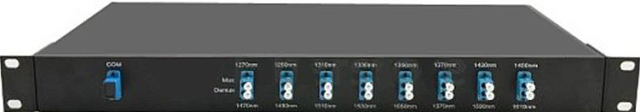

Multiplexer products combine multiple data signals (wavelengths) for transport over one fiber. De-multiplexers separate the signal at the other end. To manage bandwidth and expand capacity of existing fiber optic backbones, Wavelength Division Multiplexing (WDM) works by simultaneously combining and transmitting multiple signals at different wavelengths through the same fiber in either direction. WDM-based networks can carry different types of traffic at different speeds. The MUX/DEMUX is deployed in dense wavelength division multiplexing (DWDM). The device is passive when it comes to electricity and measures as 1RU 19” device. The device comes with optional LC/UPC, LC/APC and some models are available with SC connectors. The MUX devices are available 8, 16, and 40 channels. Custom versions are available upon request.

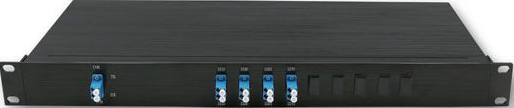

Muxes are available in Single Fiber versions (Mux or Demux)

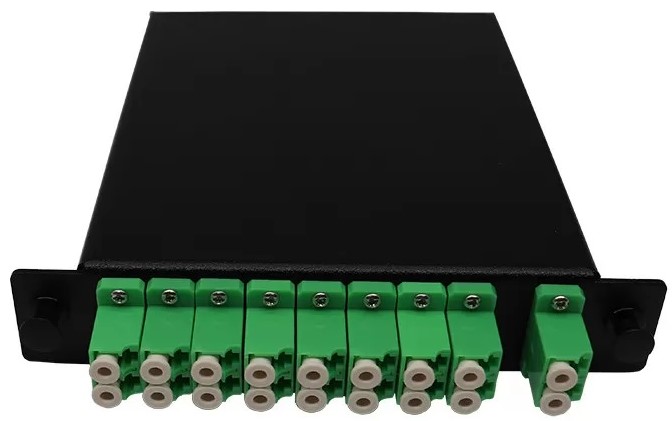

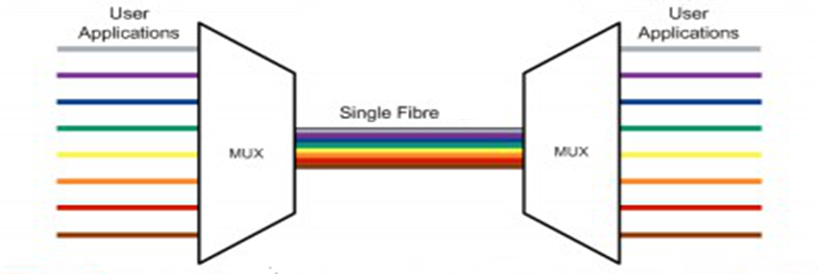

and Dual Fiber (Built in Mux and Demux) - Example Application

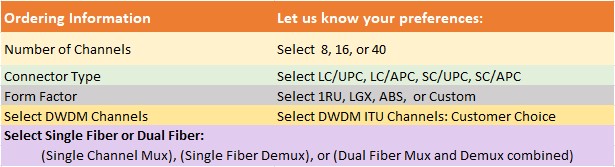

- Model Selection
Any wavelength may be ordered and customized, standard models are built in a 19” 1U rackmount chassis with LC/UPC connectors.
- Specifications
FEATURES
- Passive DWDM multiplexer with 8, 32 or 40 channels
- Optional extension and cascading ports for network upgrade or add-and-drop
- Easy integration of new services over existing fiber optic lines
- Fully transparent to all data rates and protocols
- Entirely passive device, no power supply needed
- Enterprises and Carriers/Telcos with Fiber Infrastructure
- Access to Additional Applications via Existing Links
- ATM, Escon, Fiber-Channel, Giga-Ethernet Simultaneously
- Cost-Effective Transmission of High Data Volumes
- Ideal Solution for Metro-Core, Metro-Access and Enterprises
See Spec sheet for additional details
