CWDM Mux
The flexible express CWDM/OADM concept provides the ideal enhancement for your current fiber optic infrastructure.
- General Details
More Bandwidth over a Strand of Fiber Optic cable
The flexible express CWDM/OADM concept provides the ideal enhancement for your current fiber optic infrastructure.
It will transmit up to 16 connections of different standards, data rates or protocols over one single fiber optic link, and supports bi-directional transmissions as well. RF, Data, SDI, ASI, ATM, Fiber Channel, Gigabit Ethernet, 10Gig are supported simultaneously, without disturbing each other..
Due to its purely passive technology, the express CWDM series is well-prepared for building a fail-safe and maintenance-free backbone architecture.
The new MX-CWDM single-fiber concept in this series is especially made for the situation that only a single fiber is available for transmitting the demanded applications.

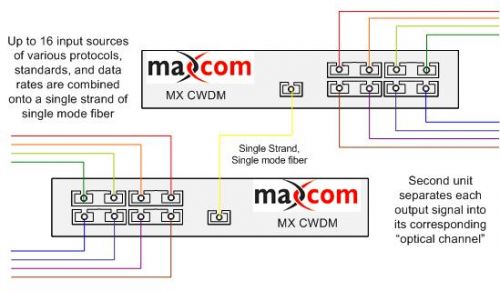

This new technology utilizes wavelengths for connecting each one channel bidirectional over one fiber optic line. A matching pair of multiplexers allows the point-to-point transmission of CWDM channels in both directions.
Customizable 4, 8, and 16 port Muxes. Muxes are based on the Thin Film Filter (TFF) technology and operate at 20nm channel spacing ITU Grid CWDM wavelengths from 1270nm to 1610nm. Maxcom provides a series of customized CWDM Mux DeMux within a 19” 1U rackmount, or optional metal LGX box.

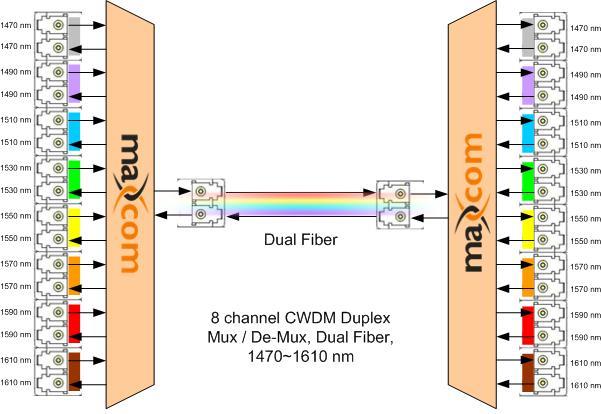

- Example Application

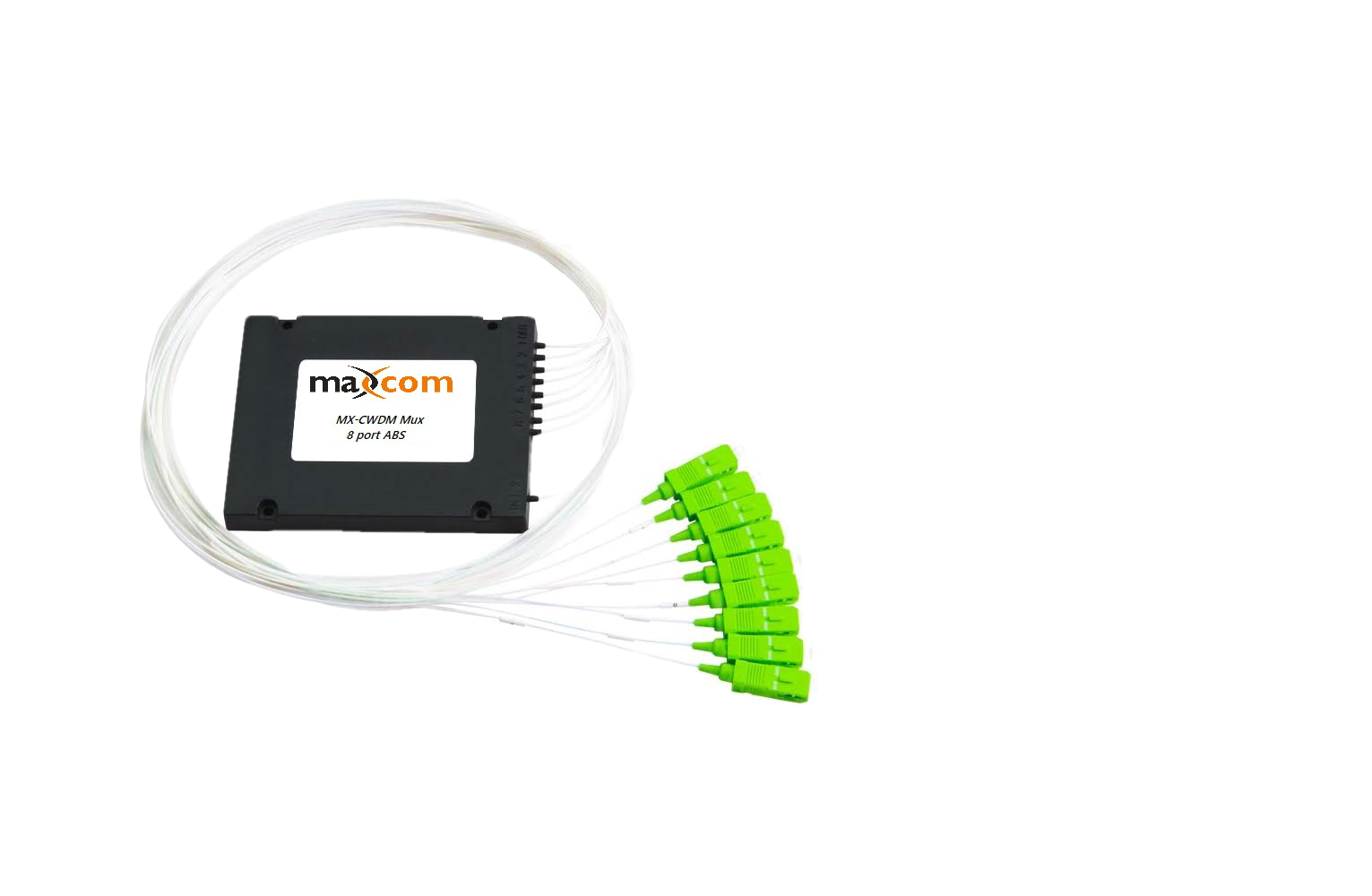

- Model Selection

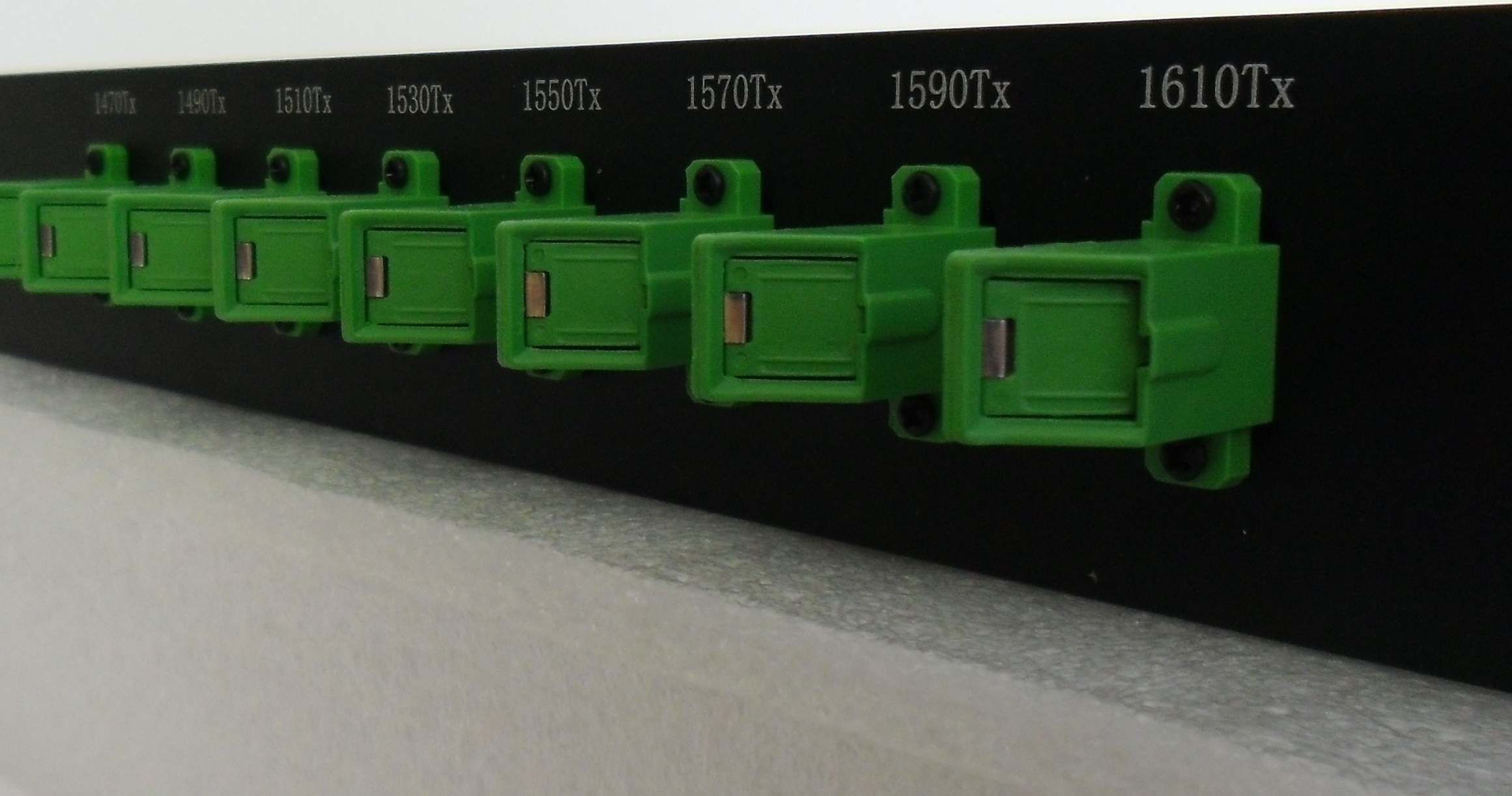

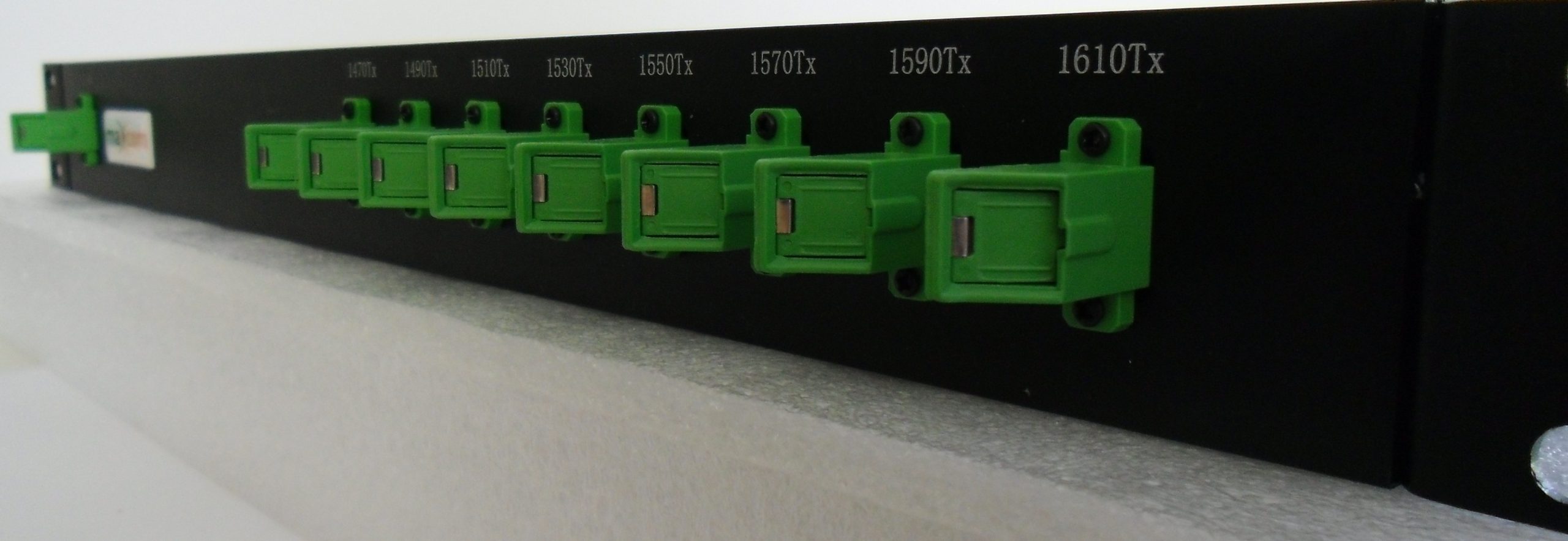

Any wavelength may be ordered and customized, standard models are built in a 19” 1U rackmount chassis with LC/UPC connectors as follow:
4 port (1550, 1570, 1590, 1610nm)
8 port (1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm)
16 port (1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610nm)
- Specifications
FEATURES
- Passive CWDM multiplexer with 2, 4, 8 or 16 channels
- Optional extension and cascading ports for network upgrade or add-and-drop
- Up to10 Gbit/s per channel
- Compliant to ITU-T G.694.2 CWDM standard
- Easy integration of new services over existing fiber optic lines
- Low-cost transceivers applicable, existing equipment can still be used
- Metro distance, up to 80 km
- Fully transparent to all data rates and protocols
- Entirely passive device, no power supply needed
- Enterprises and Carriers/Telcos with Fiber Infrastructure
- Access to Additional Applications via Existing Links
- ATM, Escon, Fiber-Channel, Giga-Ethernet Simultaneously
- Cost-Effective Transmission of High Data Volumes
- Ideal Solution for Metro-Core, Metro-Access and Enterprises
CWDM CHANNELS
- 2/4/8/16 Duplex LC Connector, Max. 10 Gbit/s, Channel Separation 20 nm
- Supports ITU-T G.694.2
WAVELENGTHS
- 1271, 1291, 1311, 1331,
- 1351, 1371, 1431, 1451,
- 1471, 1491, 1511, 1531,
- 1551, 1571, 1591, 1611nm
CWDM NETWORK PORT
- 1 Simplex SC/APC Connector
POWER SUPPLY
- Not Needed
MECHANICAL
- 19″ 1HU, Depth 260 mm
ENVIRONMENTAL
- Temperature -40~+85C, Humidity max. 90%, Non-condensing
See Spec sheet for additional details
