1550nm EDFA for CATV

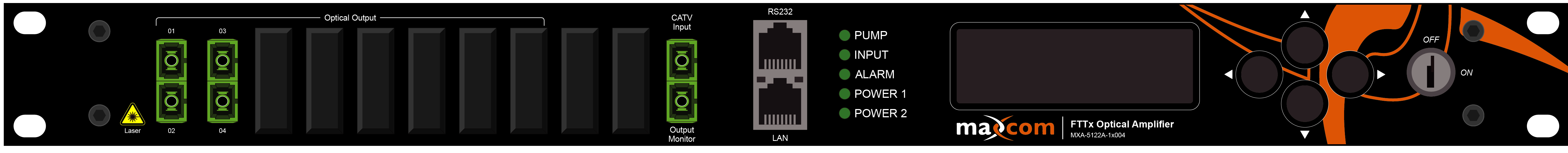

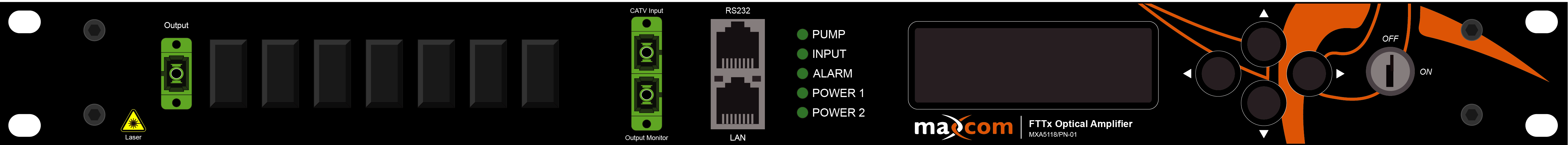

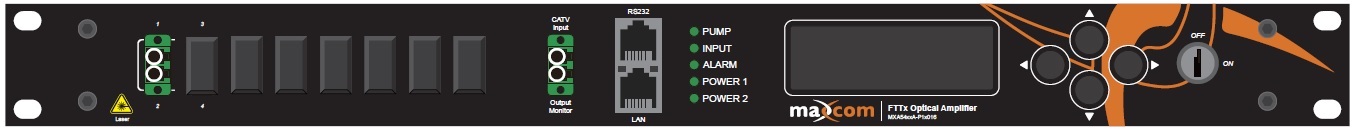

The EDFA is booster amp for long haul transmission networks or FTTH distribution networks. This optical amplifier is packaged in a 19” rack mount housing to provide a complete optical communications solution. Maxcom offers our MX-A51 platform which can be ordered with various output powers between +13 and +26 dBm.
- General Details
The Maxcom MX-A51 Erbium Doped Fiber Amplifier (EDFA) has been designed for CATV, FTTH and HFC applications. The EDFA is suitable for long haul transmission networks or FTTH distribution networks. This optical amplifier is packaged in a 19”, 1 RU rack mount housing, and can be optionally ordered with an outdoor casing to provide a complete optical communications solution. Maxcom also offers our MX-A54 platform which can be ordered with 4, 8, 16 and 32 output ports.
The output power available is from 13 dBm to 26 dBm.
The EDFA is designed to extend a 1550 nm CATV system fiber without the need to convert back to RF. Combined with our MX-T8500 series externally modulated laser transmitter, system ranges of over 200 km are possible when using multiple EDFA’s.
The MX-A51 series is a CATV booster EDFA with a gain spectrum band within 1540~1565nm. The EDFA is designed for the application of single channel, or 1~8 continuous ribbon channels (ITU wavelength). Typically, a fiber CATV system operates in single wavelength in the 1550nm CATV range. The MX-A51 booster amplifier is featured with low NF and high-saturated output power. It is applicable for Primary Headends, Secondary Headends, Hubs, OTN’s, as well as other optical communication networks. The MX-A51 is interchangeable and compatible with other 1550nm EDFA’s and Transmitters in a CATV system.
The MX-A51 series EDFA’s have excellent performance, single wavelength EDFA’s designed for analog and digital CATV QAM signals. Maxcom’s 1550nm optical amplifiers and EDFA’s adopt world class pump lasers and American OFS erbium-doped optical fiber components. Excellent APC, ACC and ATC control, superb design in the ventilation and heat-dissipation ensure long life and reliable operation of the pump laser.
The LCD at the front panel offers equipment status and warning alarms. Equipped with Dual power supplies, adjustable output power, SNMP monitoring, and port monitor. The laser will switch off automatically if optical power is lost offering protection for the laser.
- Example Application

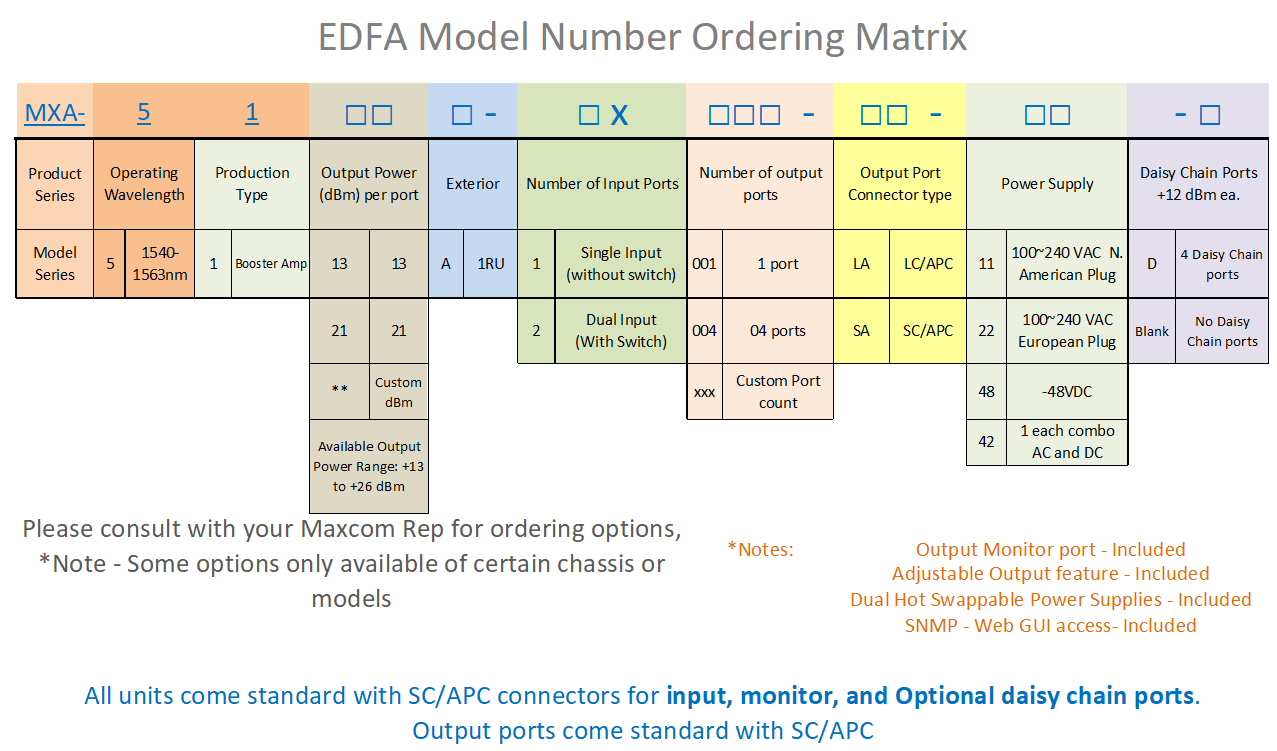

- Model Selection
- MX-A5100(A) EDFA – 1RU chassis, total output power can be ordered between +13 and + 26 dBm. Equipped with SNMP and Dual Power Supplies. *Specify AC or -48 VDC Power Supplies by adding “-AC” or “-DC” to the end of the part number
MX-A5113-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 13dBm Output MX-A5114-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 14dBm Output MX-A5115-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 15dBm Output MX-A5116-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 16dBm Output MX-A5117-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 17dBm Output MX-A5118-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 18dBm Output MX-A5119-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 19dBm Output MX-A5120-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 20dBm Output MX-A5121-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 21dBm Output MX-A5122-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 22dBm Output MX-A5123-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 23dBm Output MX-A5124-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 24dBm Output MX-A5125-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 25dBm Output MX-A5126-xx EDFA, 1550nm Booster, Single output port, SNMP, Dual PS, 1RU, 26dBm Output - Specifications
PRODUCT FEATURES
- 1540~1563nm operating bandwidth for optical amplifier
- +13 to +26 dBm output power
- Low noise figures ( Typ ≤4.5dB, Max ≤5.0dB )
- Built-in low noise pre-amplifier, substantially decreases the CNR and MER degradation.
- High performance, high reliability
- Optional dual optical input, built-in 2 – 1 optical switch
- Dual power supply, 1+1 backup
- Efficient space, flexible installation and simple operation
- Excellent P/P ratio
- SNMP
- Output Monitor Port
MAIN APPLICATIONS
- AM CATV
- Digital CATV
- RF Transport
- RFOG
- FTTx
- RF Overlays
