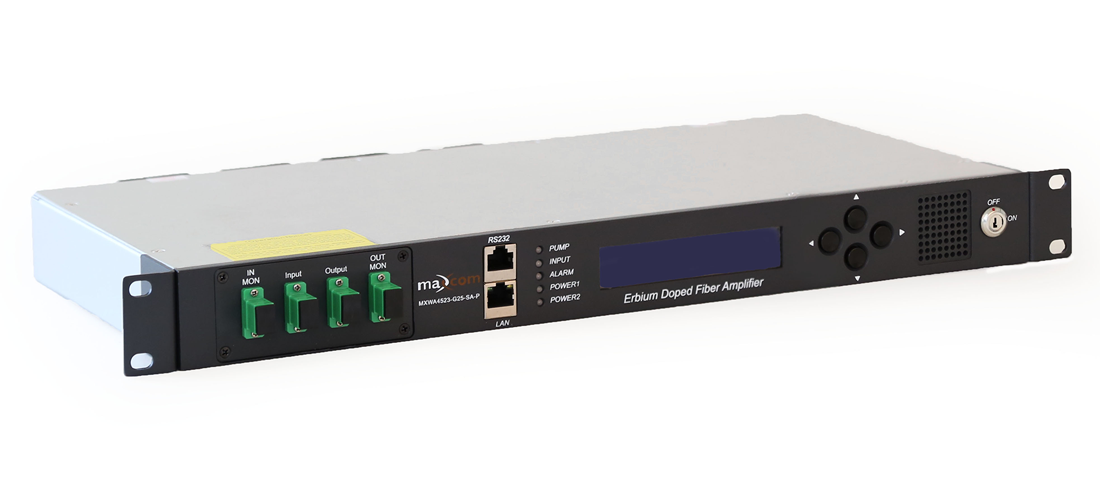

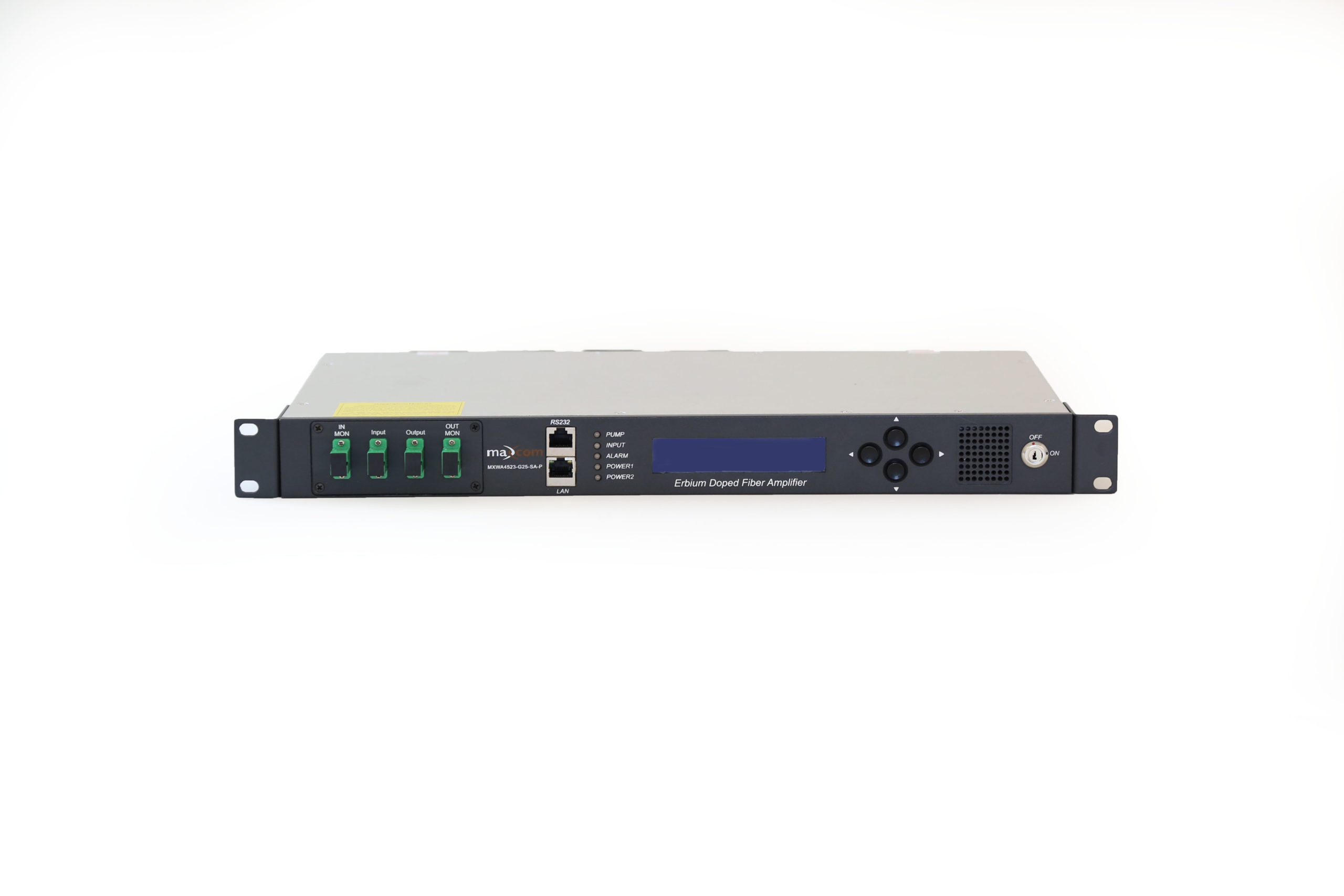

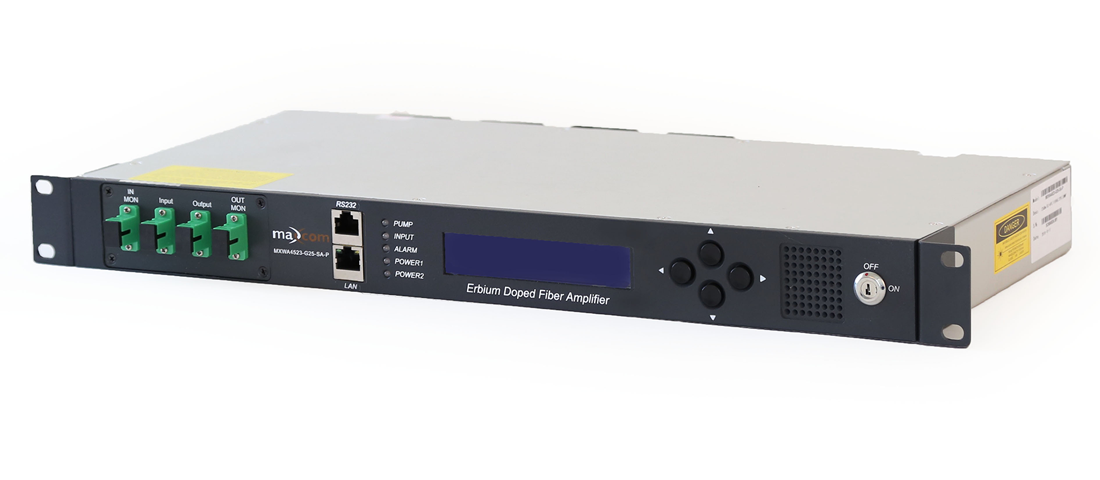

MX4500 Series is a Multi Wavelength DWDM Gain Flattened Variable Gain EDFA

MX EDFA Series – MX4500 – Multi Wavelength DWDM Gain Flattened Variable Gain EDFA. This EDFA is ideal for long distance DWDM transmissions and may be used as a Line Amplifier, Pre-Amplifier, and Booster Amplifier.

The Maxcom 4500 series is a next-generation variable gain EDFA. The series combines excellent performance along with superior functionality. The MX4500 series with excellent optical performance, gain flatness, advanced electronic technology and software function is one of the most versatile in today’s market. Robust transient suppression control technology and heat management control technology provide excellent environmental stability. The flexibility of Maxcom multifunction optical amplifiers allow for best in class architectures with increased reliability, scalability, and cost-effectiveness.

This next generation variable gain amplifier module is composed using two stages of amplifiers: variable gain pre-amplifier (PA) and variable gain booster amplifier (BA). Gain Flatness is achieved through the combining of the filter and the electronic circuit control algorithms.

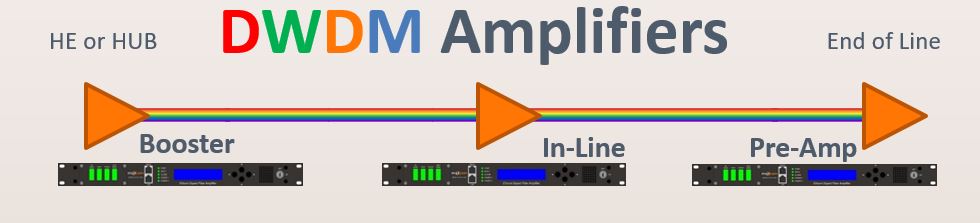

The MX4500 meets the demands of today’s multi wavelength communication networks. These EDFA’s support C-Band, up to 44 or 88 channel DWDM systems, commonly used in long distance and ultra-long distance transmission networks. Because of the MX4500’s flexibility, it can be used as a line amplifier, pre-amplifier, and booster amplifier.
