MX T1 E1 is a 1- 4 Port T1/E1 Fiber Optic, Single Fiber Media Transport (Transceiver) and Multiplexer
MX T1 E1 is a multiplexer for four (4) E1 or T1 (selectable) transmission over a single fiber optic link.
- General Details
MX T1 E1 is a multiplexer for four (4) E1 or T1 (selectable) transmission over a single fiber optic link. It connects 2 sides, transports bi-directionaly up to 4 independent T1/E1 signals over 1 single mode fiber for up to 120KM . It is 1U , half-rack format. All channels provide completely transparent transmission of E1 or T1 regardless of frame mode, clock source or timeslot assignment. Available in either AC or DC models, the AC supplies operate from 100~240VAC while DC supplies operate from 18~72VDC. Additional options include “Order Wire” phone connection (FXS port) and an SNMP option.

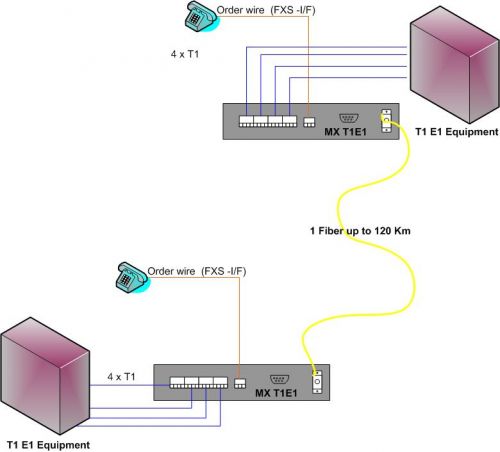

- Example Application
- Model Selection
- MX T1 E1
– 1 T1/E1 Single fiber transceiver 40Km - MX T1 E1 -80 -1 T1/E1 Single fiber transceiver 80Km
- MX T1 E1 /4 – 4 T1/E1 Single fiber transceiver 40Km
- MX T1 E1 /4-80 – 4 T1/E1 Single fiber transceiver 80Km
- MX T1 E1
- Specifications
FEATURES
- 1 – 4 T/1E1 independent ports
- Single fiber , bi-directional transmission for up too 120KM
- Standalone unit (1U, 1.75″). An optional mounting kit is available for single or side-by-side mounting in a 19″ rack
- Channel service setting and remote loop-back setting via front panel DIP switch
- Far End Fault (FEF) on fiber link, selectable
- On-line Bit Error Rate monitor feature with four error-rate classes
- Provides 2 color based LEDs for clear indication
- Provides one optional dedicated order wire phone port, (FXS, RJ-11 port)
- Provides one supervisory port (DB9 connector) for ASCII terminal and one alarm relay contact
- SNMP management (Optional) with additional support
for Telnet or Web based local or remote configuration - Single mode or multimode fiber link distance up to 120Km
depending on ordered model. Supports : M/M or S/M with ST, SC, FC, LC, or WDM(SC), CWDM, DWDM
T1 INTERFACE MODE
- Standards : ITU-T G.703, G.736, G.775, G.823
- Ports : up to 4 ports
- Framing : Transparent (clear channel)
- Data rate : 1.544 Mbps
- Line code: B8ZS/ AMI
- Receive Level : -36dB
- Line impedance : 100 ohms ±5%
- Connector : RJ-45 for 120 ohms
- Pulse amplitude : Nominal 3.00V ± 20%
- Zero amplitude : ±0.1V
E1 INTERFACE MODE
- Standards: ITU-T G.703, G.736, G.775, G.823
- Ports : up to 4 ports
- Framing : Transparent (clear channel)
- Data rate : 2.048 Mbps
- Line code : HDB3/ AMI
- Receive Level : -43dB
- Line impedance : 75 ohms ±5% / 120 ohms ±5%
- Connector: RJ-45 for 120 ohms , BNC for 75 ohms
- Pulse amplitude: Nominal 2.37V ± 10% for 75 ohms
- Nominal 3.00V ± 10% for 120 ohms
- Zero amplitude ±0.1V
OPTIONAL
- Optional Phone (FXS) module
- Optional SNMP agent module
CONSOLE INTERFACE
- Interface : RS-232D (RJ-45) Asynchronous
- Bit rate :19200,8,N,1
POWER
- AC 90 — 260 VAC
- DC 20 — 60 VDC
POWER CONSUMPTION
- 20W
DIMENSIONS (WxDxH)
- 195mm x 45mm x 255 mm
WEIGHT
- 3 lb
ENVIRONMENT
- Temperature: 0oC to 55oC (Operating)
- 0oC to 70oC (Storage)
- Humidity: 10% to 95% non
COMPLIANCE
- FCC, Part 15, Sub B (Class A) European
standard EN55022:
1994/A1 : 1995/A2 : 1997 Class A,
EN61000-3-2:1995, EN61000-3-3:1995
and EN50082-1:1997
