MPEG-2 Encoder and MPEG-2 Decoder

THE MAXCOM MX MPEG-2 digital video encoding/decoding equipment offers multiple network interfaces and comes equipped with advanced professional level encoding circuitry. Ideal for digital TV broadcasting (DVB).

SKU: MX MPEG-2 E/D Category:
  1. General Details

    THE MAXCOM MX MPEG 2 ENCODERS  innovated digital video encoder. Equipped with advanced professional level encoding chip, provides powerful encoding functions and multiple network interfaces options. It can be widely used in applications such as digital TV broadcasting (DVB) and digital TV program edit for TV stations.

    THE MAXCOM MX  MPEG-2  DECODERS with multiple network interfaces,  are able to receive A/V signals, control order and text message, or return answering message and transmit local message via the uniform network interface.

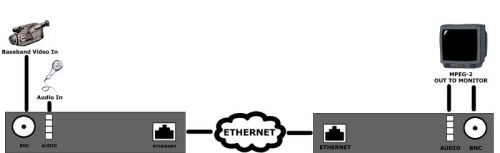

  2. Example Application

  3. Model Selection
    • MX MPEG 2 ENCODER
       – MPEG-2 Digital Video Encoder
    • MX MPEG 2 DECODER  – MPEG-2 Digital Video Decoder
  4. Specifications

    MAIN FEATURES ENCODER

    • Complying with ISO / IEC 11172 (MPEG-1) and ISO / IEC 13818 (MPEG-2) standards
    • Various A/V input modes
    • Forward filtering
    • Audio/video synchronization
    • MPEG-2 self-adaptive field/frame dynamic prediction and DCT
    • Motion prediction: 100 horizontal and 50 vertical searching
    • Semi-pixel precision motion statistics
    • TBC (Time Base Correct)
    • One RS-232 interface supporting independent low-rate data channel
    • Encoding parameters adjustment in accordance with the user’s requirements
    • Multiple network interfaces supported
    • Local/remote configuration and control supported
    • Communication protocol and remote control software package for third-party networking and application development
    • Luminance/chrominance adjustment
    • Network access permit issued by the National Radio & TV (General) Bureau

    MAIN FEATURES DECODER

    • Support a variety of network interfaces
    • Support ISO13818-1 TS demultiplexing (up to 32PID)
    • Support ISO13818-2 Main Profile @ Main Level video decoding
    • Support ISO11172-3 and ISO13818-3 audio decoding
    • Support graphic display up to 16 bits/pel (OSD)
    • English/Chinese Menu display, as well as display of teletext from the network
    • Execute control by panel keys and network interface
    • Configure and check working status over network
    • Configure and control the decoder by network interface
    • Communication protocol and remote control software package for third-party networking and application development
    • Update software version via serial port
    • Multi-program menu

    TECHNICAL SPECIFICATIONS: ENCODER

    VIDEO

    • Encoding Standards: ISO/IEC 13818 (MPEG-2) MP@ML and 422 P@ML; ISO/IEC 11172 (MPEG-1)
    • Image Format: PAL, NTSC
    • A/D Resolution: 10 bit
    • Picture Type: I, IP, IBP, IBBP
    • GOP Structure: adjustable
    • Screen size: D1, HD1, SIF, QSIF
    • GOP structure: adjustable, ensuring the picture quality in low bit rate
    • Vertical Resolution: 576 (PAL) and 480 (NTSC)
    • Horizontal Resolution: 720
    • Mode Supported: CBR
    • Encoding Output Bit Rate: 1.5 — 15Mbps (MP@ML) 1.5 — 50Mbps (422P@ML)
    • Aspect Ratio: 4:3 and 16:9
    • Digital Filter: horizontal, vertical, transversal

    AUDIO

    • Audio Encoding: MPEG-LII, ISO/IEC 11172 (MPEG-1) Layer I and II
    • Frequency Response: <3dB, 20Hz—20KHz
    • Audio Sampling Frequency: 32KHz, 44.1KHz, 48KHz
    • A/D Resolution: 16 bit or 24 bit
    • Encoding Bit Rate: 32 — 384Kbps
    • Audio Input: Analog: non-balanced analog stereo (default)/balanced stereo (optional) 2 or 3 pairs stereo (4 or 6 channels)
    • Digital: AES/EBU-SPDIF
    • Audio Mode: mono, stereo, dual mono, joint stereo

    VIDEO/AUDIO INPUT INTERFACE

    • Video Input: BNC:Y/C S-video(optional), composite (embedded VBI), SDI (optional)
    • Audio Interface: BNC: non-balanced stereo (default); CANNON: balanced stereo (optional)

    NETWORK INTERFACE

    DVB ASI/SPI INTERFACE

    • BNC/DB-25:
    • 1.5 — 20Mbps(MP@ML)
    • 1.5 — 50Mbps(422P@ML)
    • Model No. MX-ASI/SPI

    10/100MBPS ETHERNET INTERFACE

    • RJ45:
    • 1.5 — 20Mbps
    • Model No. MX-IP

    DS3 INTERFACE (DEFAULT)/E3 INTERFACE (OPTIONAL)

    • BNC: DS3:
    • <43Mbps; E3: <33Mbps
    • Model No. MX-DS3/E

    TECHNICAL SPECIFICATIONS: DECODER

    VIDEO DECODING

    • Support ISO13818-2 Main Profile @ Main Level video decoding
    • Resolution: up to 720 576 (PAL), 720 480(NTSC)

    AUDIO DECODING

    • Support ISO11172-3 layer 2 audio decoding
    • Audio Modes: stereo, joint stereo, mono, dual mono



    NETWORK INTERFACE

    ATM

    • RJ45:
      25.6Mbps
      Model No. MX-ATM

    10/100MBPS ETHERNET:

    • RJ45:
      1.5Mbps—7Mbps
      Model No. MX-IP

    E1:

    • BNC, G.703:
      1.92Mbps
      Model No. MX-E1



    1~4 CHANNEL E1:

    • SMB:
      1.5Mbps—7.6Mbps
      Model No. MX-IMUX/E1

    DS3(DEFAULT)/E3(OPTIONAL) (1-CHANNEL ASI LOOP OUT)



    • BNC: ANSIT1.107/G.703;DS3:
      <43Mbps; E3: <33Mbps ASI: <50 Mbps
    • MODEL NO. MX-DS3/E3

    DVB-ASI (1-CHANNEL ASI LOOP OUT)

    • BNC:
      500Kbps—50Mbps
      Model No. MX-ASI

    DVB-SPI:

    • DB-25:
      800Kbps—70Mbps
      Model No. MX-SPI
