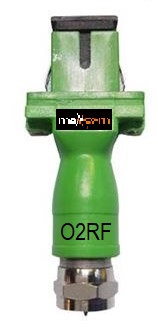

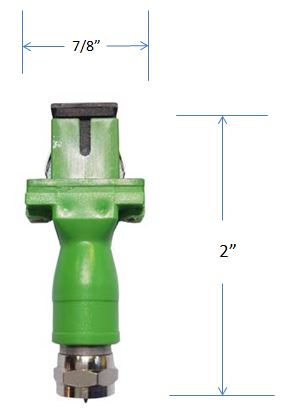

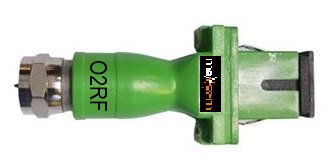

Mini Optical to RF Converter
The Maxcom MX-O2RF series optical receivers are versatile, low-cost and compact optical receivers are versatile, low-cost and compact optical receivers for use as a tool for test and measurement
- General Details
The MX-O2RF is an Optical to RF Converter. It requires no external power or batteries, it uses photoelectric energy from the laser source for power. This small, handy and inexpensive device can be carried by every technician. It presents a fast and simple tool for converting a fiber optic signal to an RF signal. Commonly used by CATV field and headend technicians where fiber is becoming more commonly used.

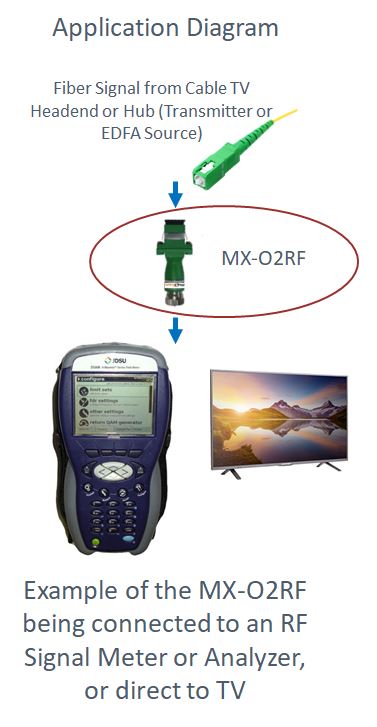

- Example Application

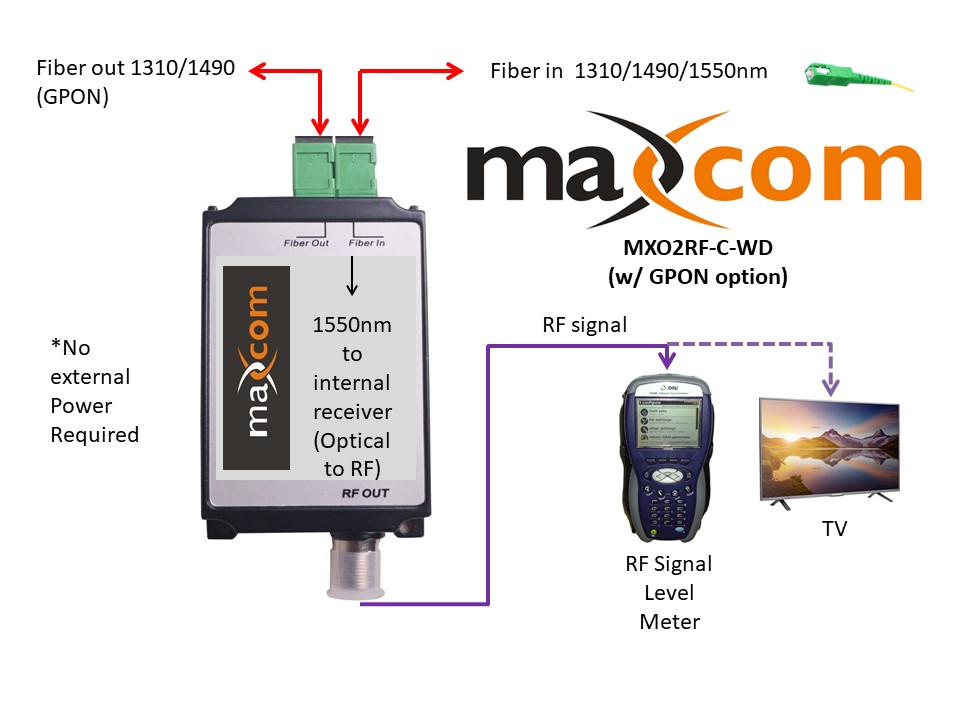

For networks that offer GPON with an RF Overlay or RFoG, Maxcom offers this device with a built-in GPON Filter:
- Model Selection
- MX-O2RF – Compact optical receiver for use in testing fiber RF systems.

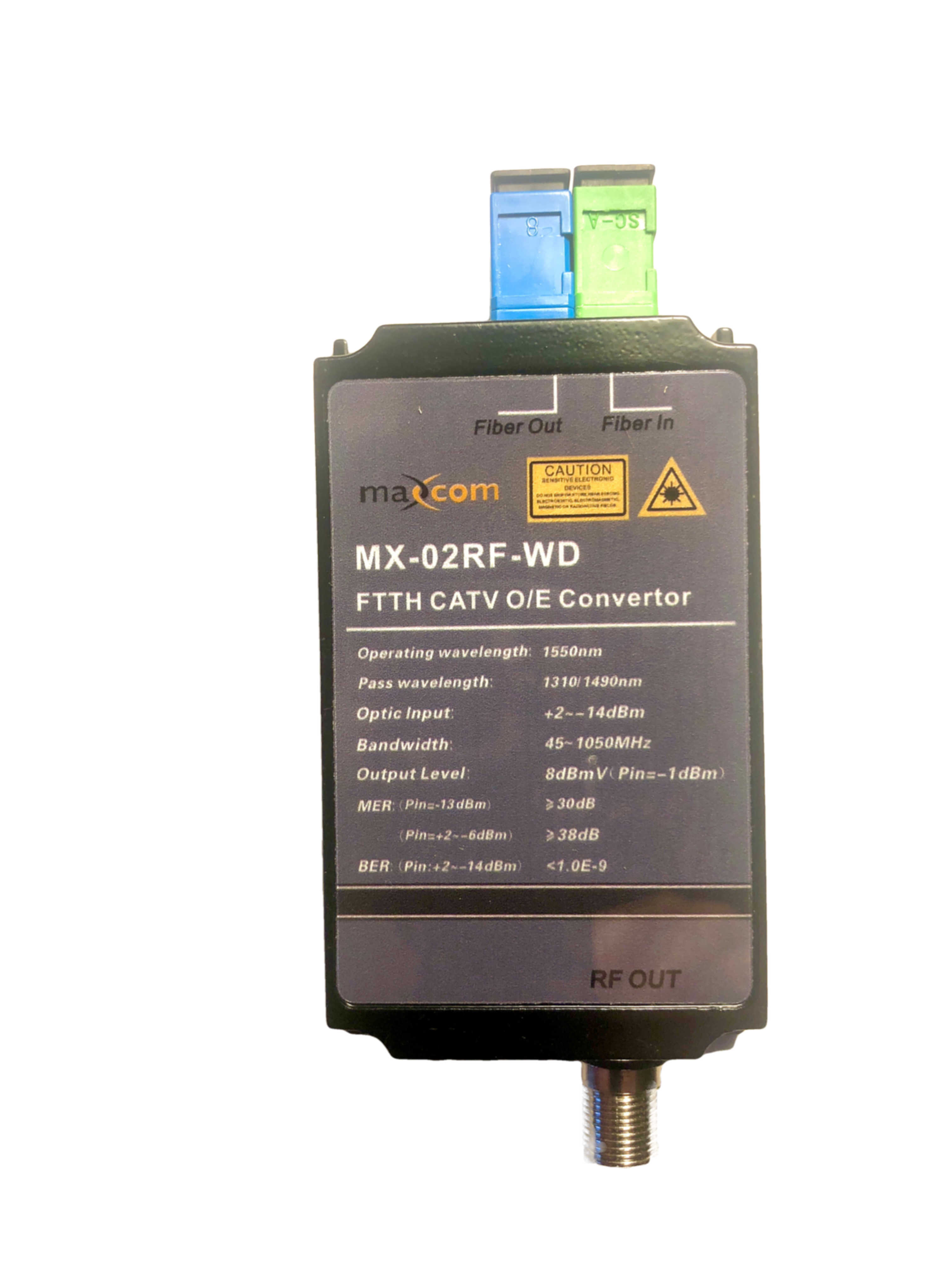

- MX-O2RF-WD-C – Compact optical receiver (with built-in GPON Filter) for use in testing fiber RF systems using GPON and an RF Overlay or RFoG
- Specifications
FEATURES
- No Power required
- Bandwidth of 45 – 1050 MHz
- Optical input wavelengths 1260-1620nm
- Converts Fiber/Optical signal to RF
*See Data Sheet for more details (located under the documents section)
- Order Inquiry
- Documents
- Related Products

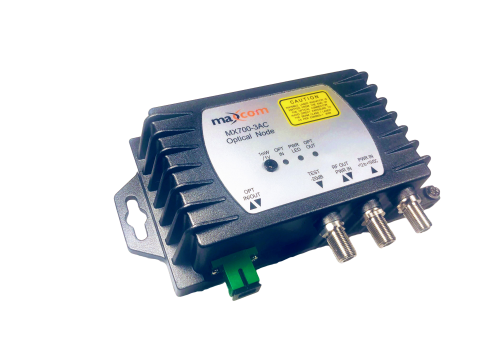

ONU RFoG Mini Node
The Maxcom MX700AC series ONU mini nodes offer enhanced features such as AGC (Automatic Gain Control), or PON ports to support GPON, EPON, xPON services. Maxcom offers highly reliable RFoG solutions.

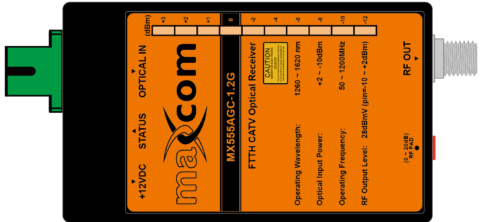

Mini Fiber Optic Receiver w/AGC
The Maxcom MX555 series optical receivers are versatile, low-cost and compact optical receivers for use in HFC fiber applications.
CATV Fiber Optic Receiver
The MX1000R is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output).

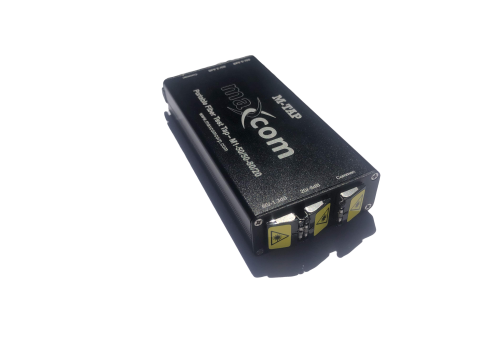

M-TAP Fiber Test Tap
The Maxcom Fiber Tap (M-TAP) is a portable optical test tool designed to minimize customer downtime. Two Splitters/Taps One Portable Device 80/20 split ratio 50/50 split ratio

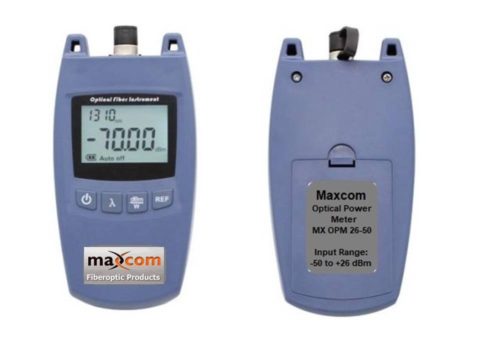

Optical Power Meter w/6 Wavelength Calibrating Spots
