The MX mini media converter provides one RJ45 10/100/1000Base-T connector supporting auto-negotiation, MDI/MDI-X, full-duplex and half-duplex.The other connector is a 1Gbps SFP slot, suitable for any 1Gbps SFP module.
MX-MC-1000S
Maxcom’s MX Series Mini Media Converter Solutions
- Plug and Play Simplicity
- Non-Managed – Auto Negotiate
- 10/100/1000Base-T
- RJ-45 to SFP port
- Available 1RU Rack Mount Option
Variety of Fiber SFP’s available:
Single Fiber BiDi
Dual Fiber
Singlemode or Multimode
CWDM and DWDM
Distances up to 180km
Data Rates:
10/100/1000Mbps (IEEE802.3U IEEE802.3z 1000Base-Tx)
1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)

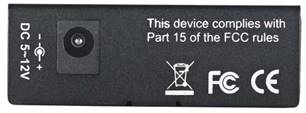

Input Power Requirements:
Input voltage DC 5-12V
Power consume 3 Watts maximum
Environmental Conditions:
Operating temperature 0℃ to 40℃
Cooling: free air convection
Storage temperature -20℃ to +85℃
Operating Humidity 90% max, non-condensing
Mechanical Specifications:
Case Material Steel/Iron
Case Color Black
Net Weight 150g approx. / unit
Dimensions 60 (W) x 20 (H) x 90 (L) (mm)*
*Does not include SFP transceiver module
1U Rack Mount, 12 Slot, Mini Media Converter Chassis
The Media Converter 1 RU 19" chassis is capable of housing up to 12 mini media converters. You can start with a single media converter, and grow to 12 Media Converters
