Mini Fiber Optic Receiver w/AGC
The Maxcom MX555 series optical receivers are versatile, low-cost and compact optical receivers for use in HFC fiber applications.
- General Details
The Maxcom MX-555-AGC series CATV optical receiver supports a bandwidth of 47~1200MHz, with an AGC feature. It will provide a typical output level 28 dBmV ±1.0dB when the input optical receive power is +2 to -8dBm. There is also a high output +40 dBmV version available. Works great for Residential, Business, Hospitality and Government applications. As an RF/ Cable TV optical receiver unit, it provides a high index, and low power consumption with exceptional performance at an exceptionally low cost.
- Example Application
- Model Selection
- Available Model Numbers and Options:

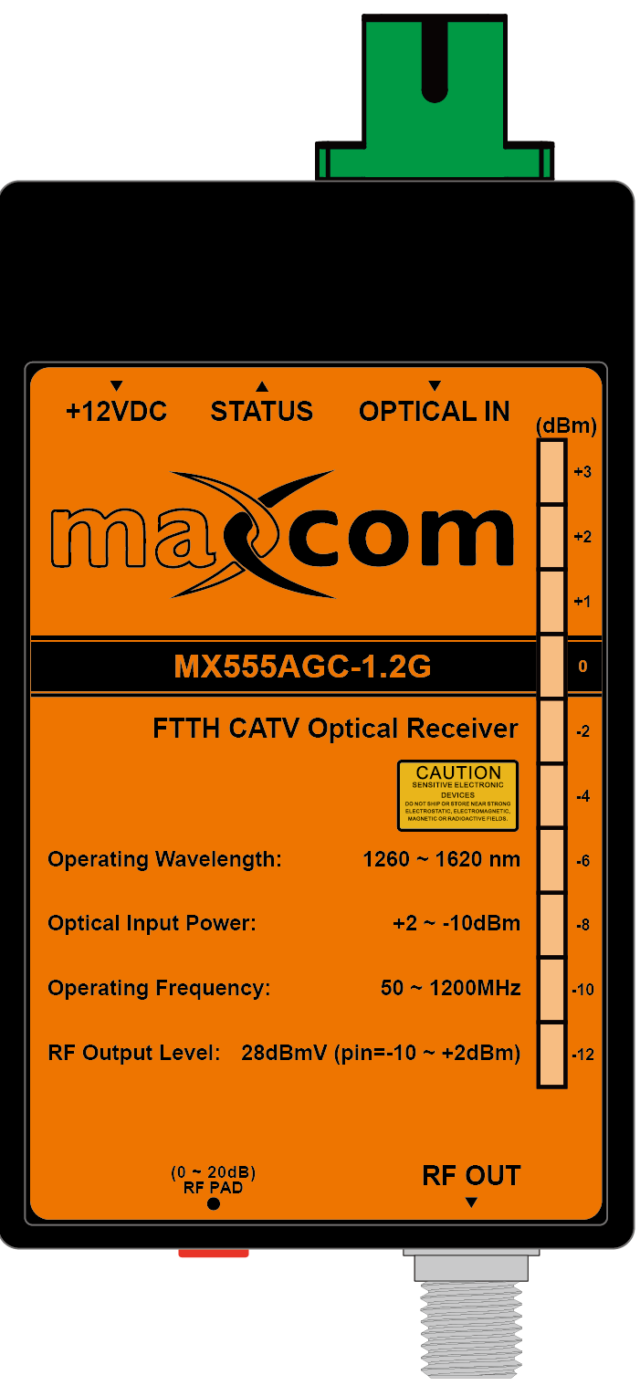

- MX555AGC.1.2G 47~1200MHz Optical receiver with AGC +28 dBmV output, with LED optical power display, includes standard PS – Mini Desk top style

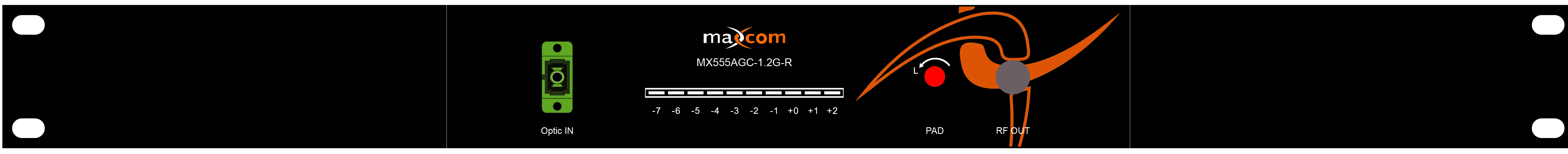

- MX555AGC.1.2G-R 47~1200MHz Optical receiver with AGC +28 dBmV output, with LED optical power display, includes standard PS – 19” 1RU Rack mount style
- MX555AGC.1.2G-WD 47~1200MHz Optical receiver with AGC +28 dBmV output, with built-in PON port (PON port passes G-PON and XGS-PON wavelengths of 1270, 1310, 1490, 1577nm) with LED optical power display, includes standard PS – Mini Desk top style
- MX555AGC.1.2G-HO High Output 47~1200MHz Optical receiver with AGC +40 dBmV output, with LED optical power display, includes standard PS – Mini Desk top style
- MX555AGC.1.2G-R-HO High Output 47~1200MHz Optical receiver with AGC +40 dBmV output, with LED optical power display, includes standard PS – 19” 1RU Rack mount style
- MX-C-Wall Wall mount bracket for Mini Desk top style
- MX-BP12VAA8 Battery Pack, holds (8) 1.5V AA batteries. Used to power MX555 series receiver
- Specifications
FEATURES
- Operating range u to 47-1200MHz, excellent flatness (FL<+ 1.0dB)
- Wide optical input range of +3dBm to -12dBm
- Supports NTSC and Digital channels loading
- RF output level of 28dBmV typical when input optical level is between +2 and -8dBm *40 dBmV high RF output version available
- Automatic Gain Control (AGC) for optimal RF output level control
- Compact, light weight with metal housing
- Order Inquiry
- Documents
- Related Products
ONU RFoG Mini Node
The Maxcom MX700AC series ONU mini nodes offer enhanced features such as AGC (Automatic Gain Control), or PON ports to support GPON, EPON, xPON services. Maxcom offers highly reliable RFoG solutions.
CATV Fiber Optic Receiver
The MX1000R is a Fiber Optics Receiver used to convert a fiber optic connection to RF (coax output).
Mini Optical to RF Converter
The Maxcom MX-O2RF series optical receivers are versatile, low-cost and compact optical receivers are versatile, low-cost and compact optical receivers for use as a tool for test and measurement
CATV Fiber Optic 1550nm Transmitter – Optimized for Long Distance with SBS Control
The MX-T8500HC series externally modulated transmitter delivers high performance signal transmission of NTSC, QAM, digital or compressed digital signals from 50-1000 MHz for CATV long distance applications.
CATV 1310nm Fiber Optic Transmitter
The MX1000T series direct modulated transmitter delivers high performance signal transmission of NTSC, PAL, QAM, digital or compressed digital information for CATV applications.

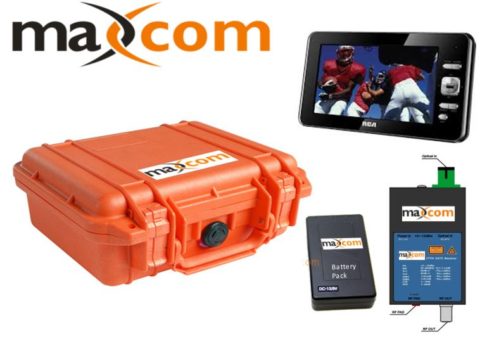

Portable Kit
