Fiber ONU – Fiber RF Receiver with optional PON pass through port

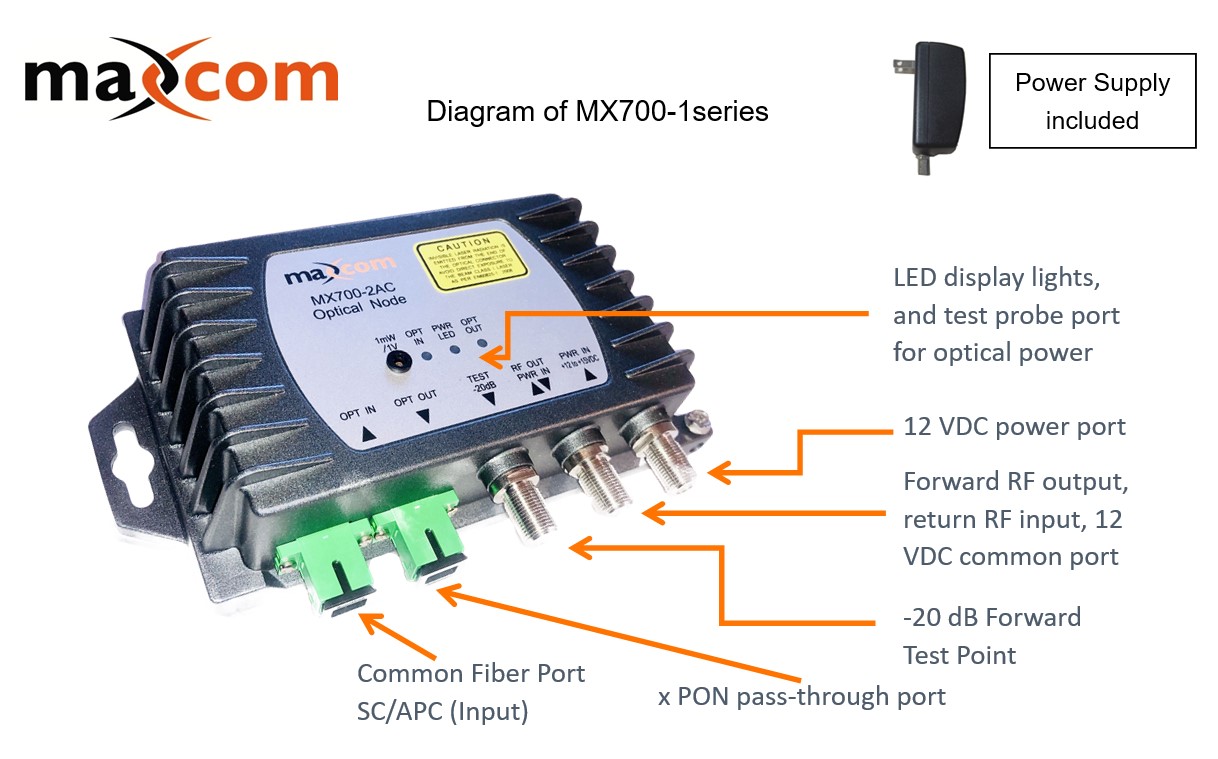

The Maxcom MX700-1 series receivers are ideal for use in fiber to the home and fiber to the business applications. A perfect platform for delivering downstream video service over FTTX applications. They are designed compliant to industry standards with PON transmission modes, they include an optical WDM MUX for pass through of the XPON downstream and upstream wavelengths between 1310 and 1490nm *PON pass through port may also be configured to pass XGS-PON wavelengths 1270 & 1577nm as an option. It can be used to overlay RF based services on to an existing PON network or expand an RF network with services delivered with GPON and XGS-PON transmission modes. The device uses a single fiber and receives downstream signals at 1550nm and offers a second port that is used to pass PON wavelengths to the GPON or XGS-PON ONU. Built with maximum toughness and the best warranty in its class.
