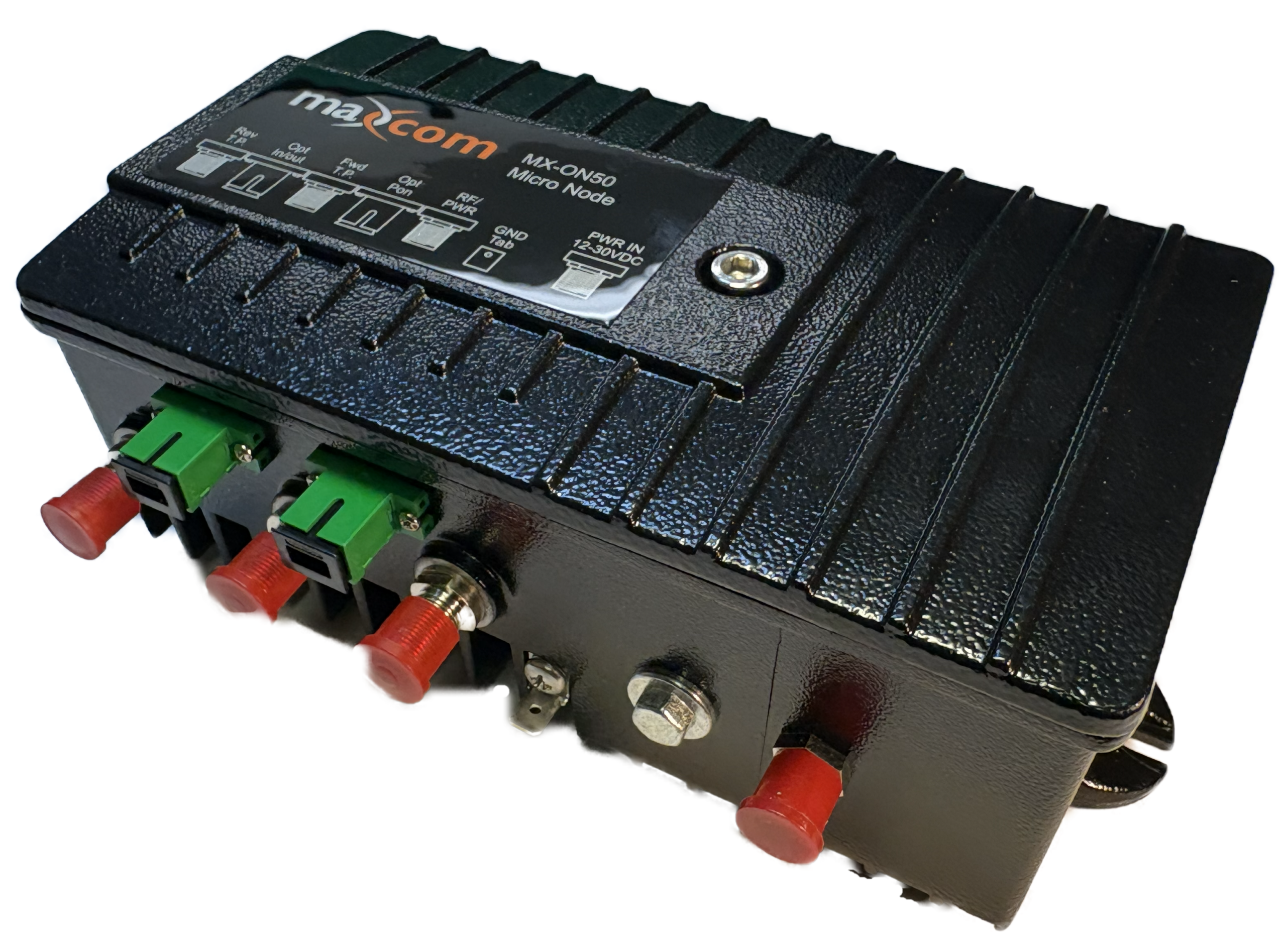

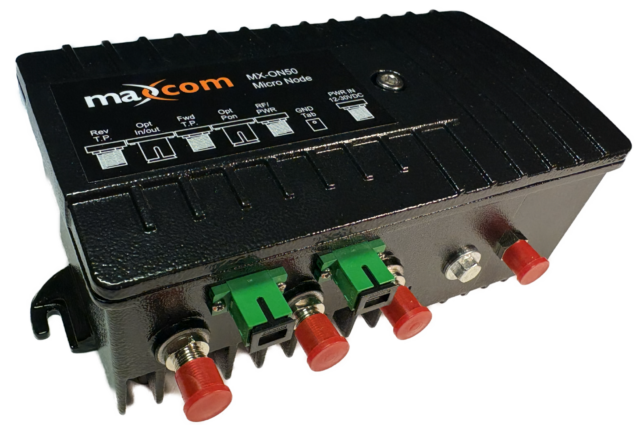

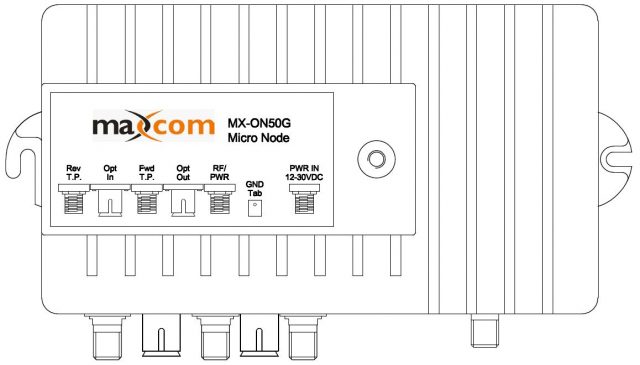

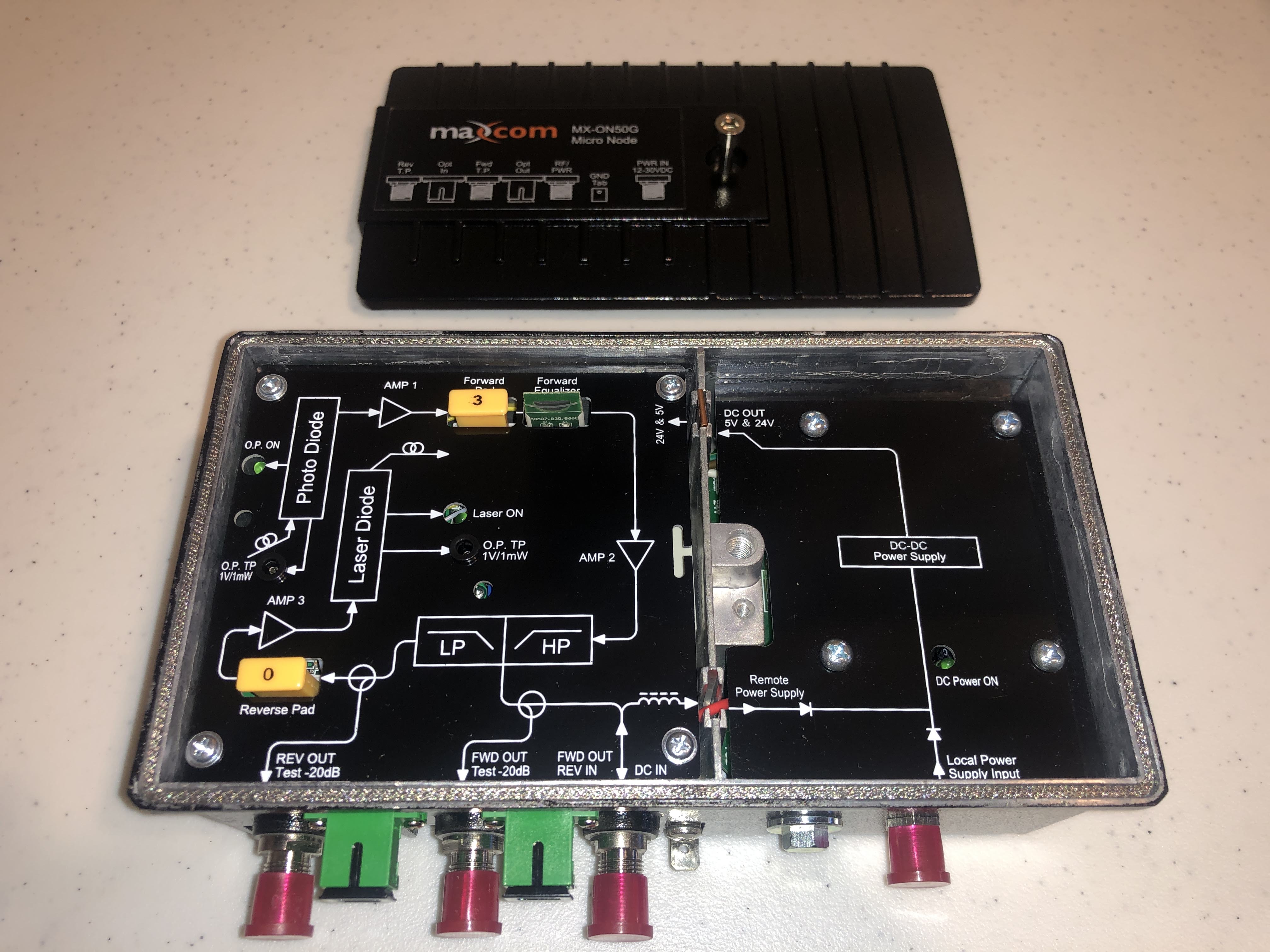

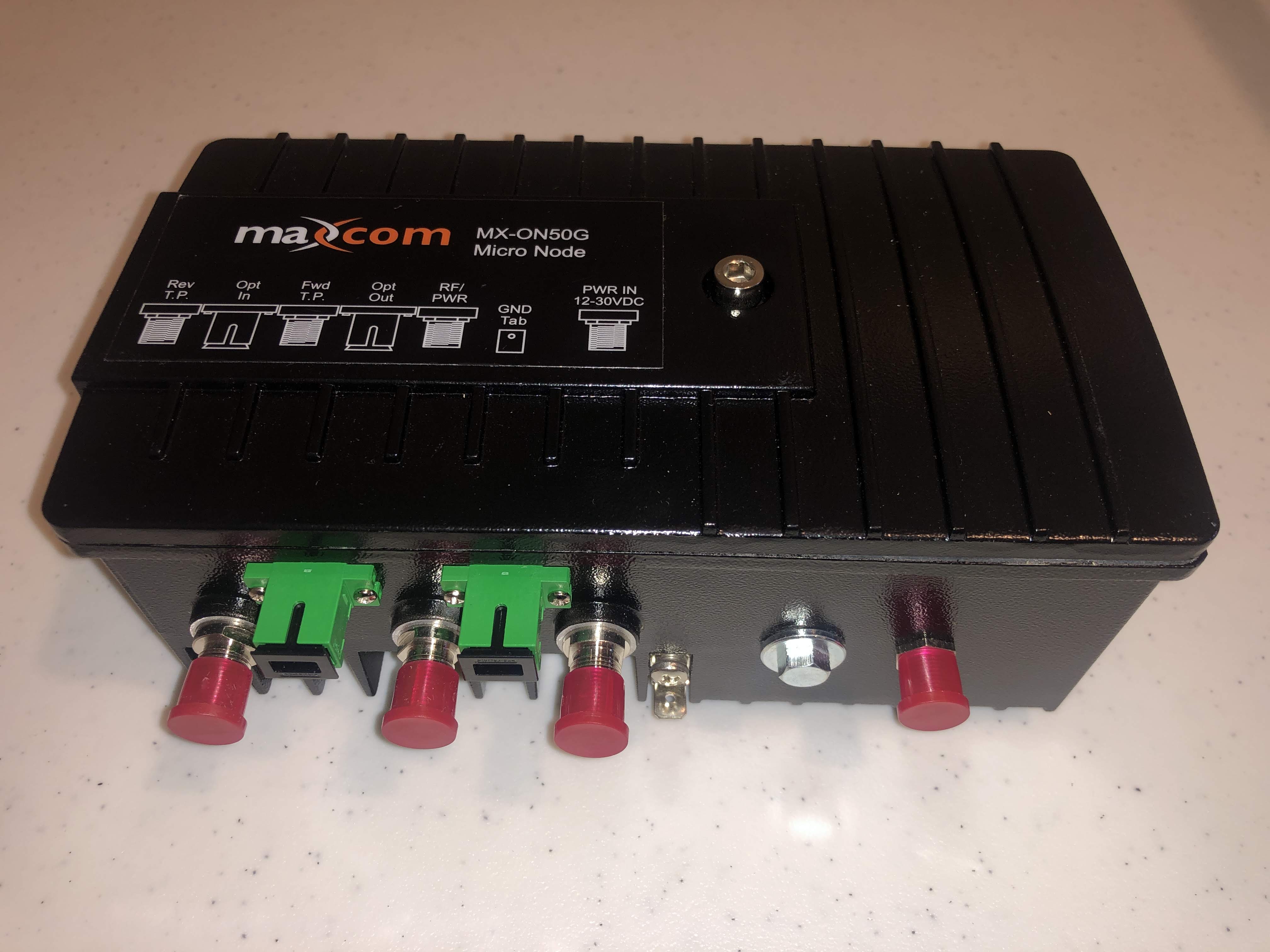

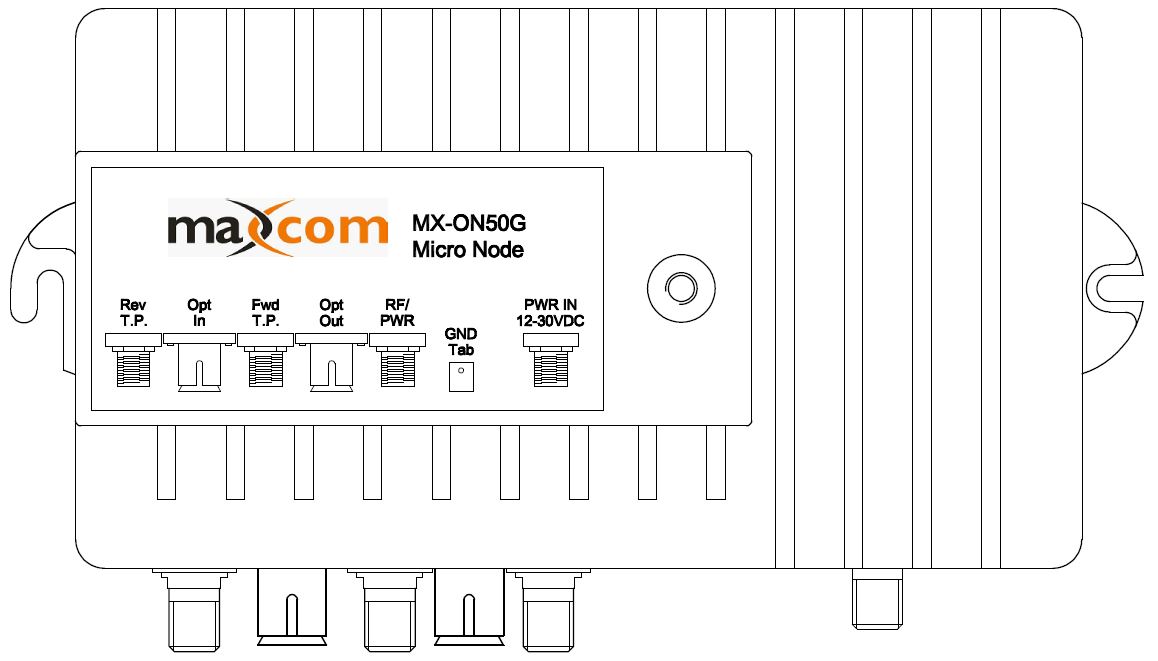

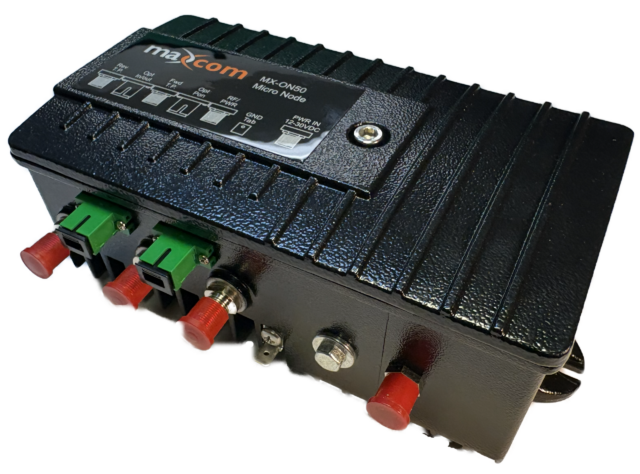

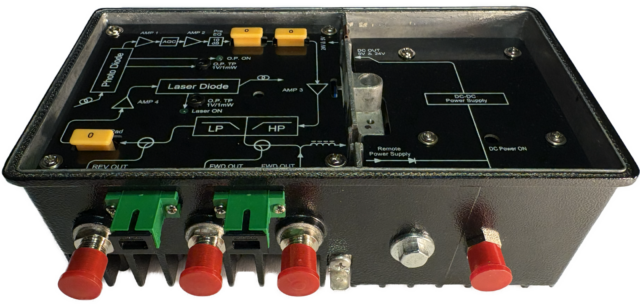

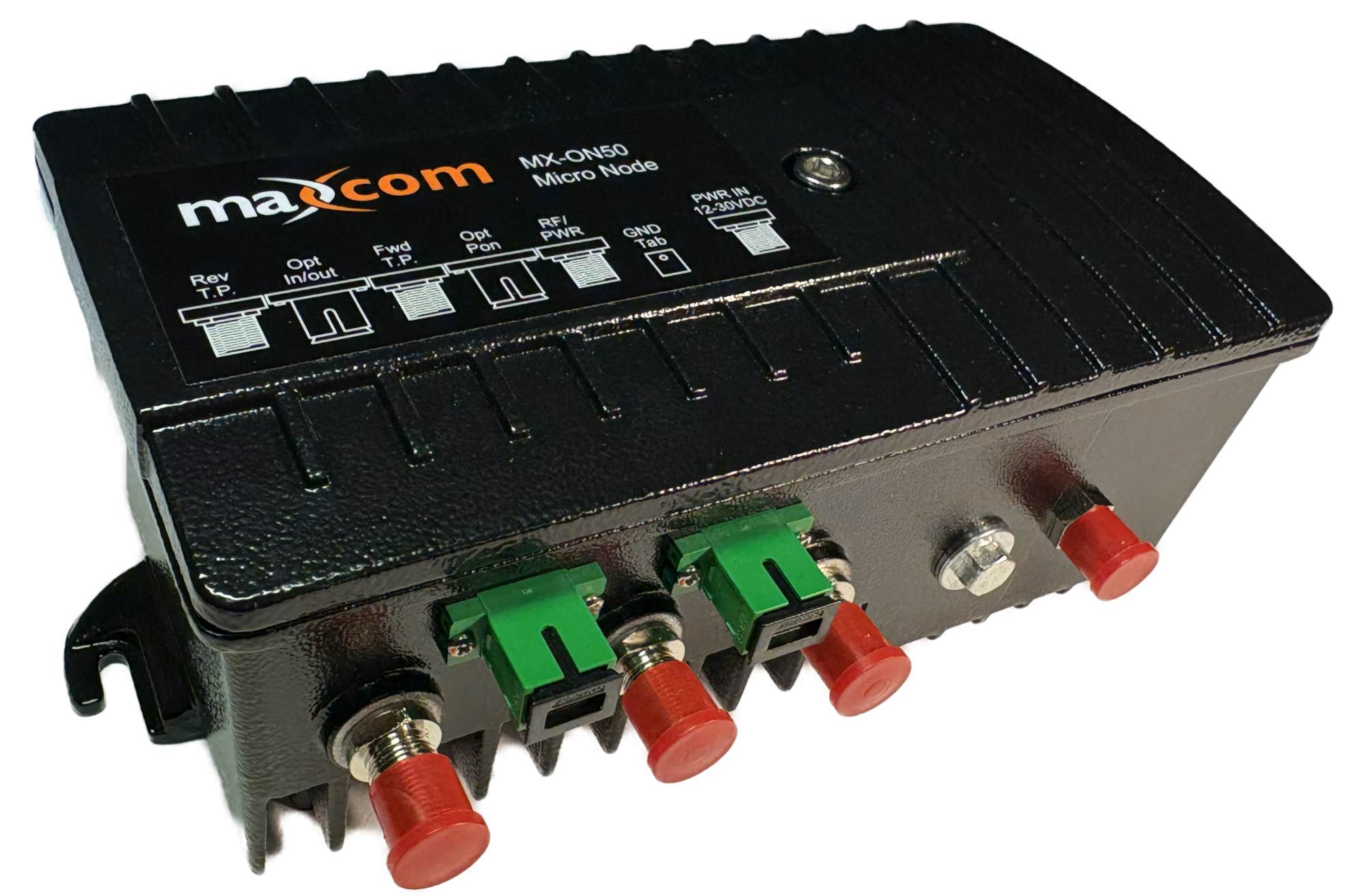

Mini Fiber Node – High Output RF Receiver & Return Path Transmitter

The MX-ON50 Series Optical Nodes are designed for maximum versatility and performance. They are ideal for fiber-to-the-building applications.

SKU: MX-ON50, MX-ON50G Categories: ,
  1. General Details

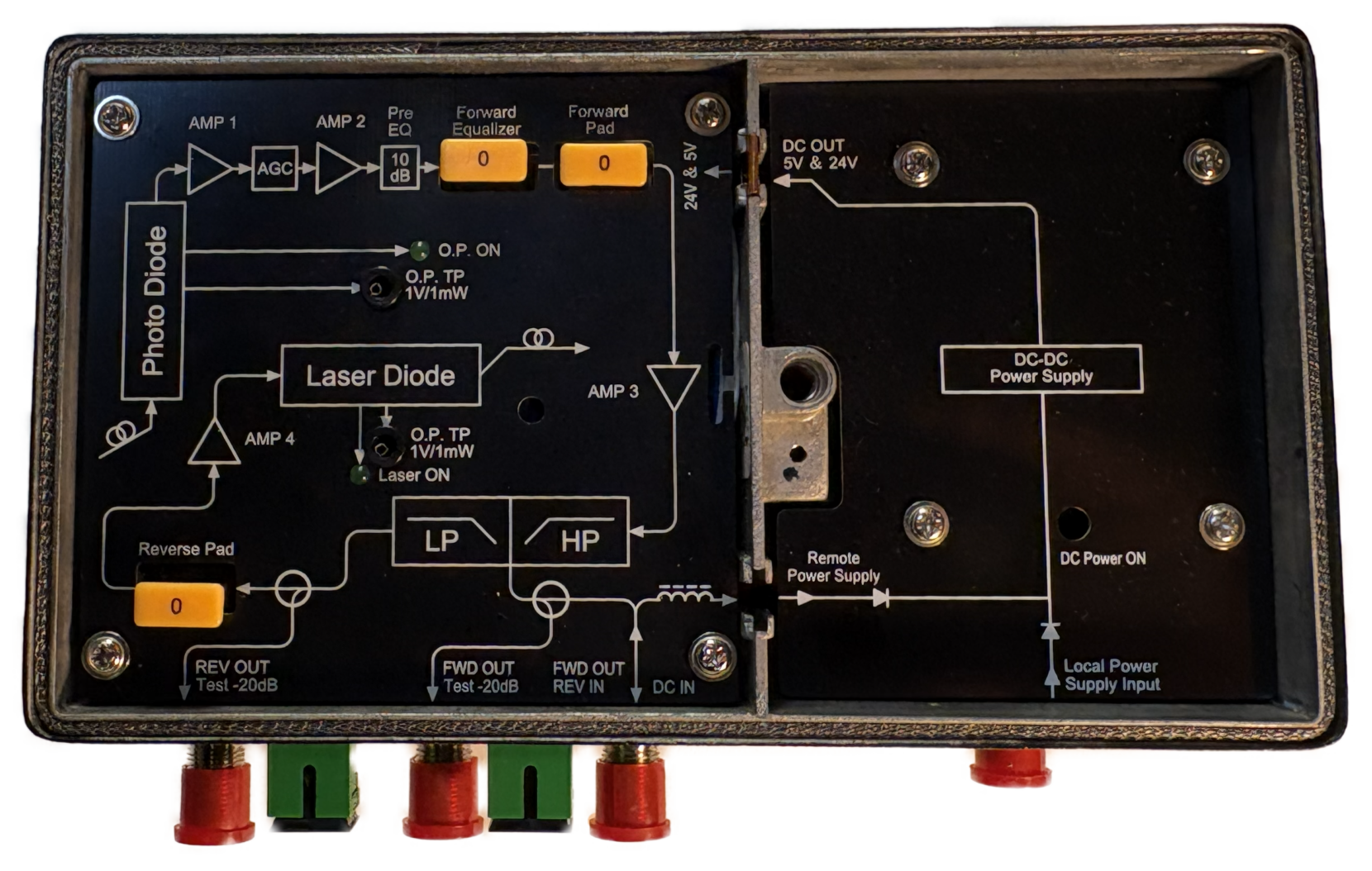

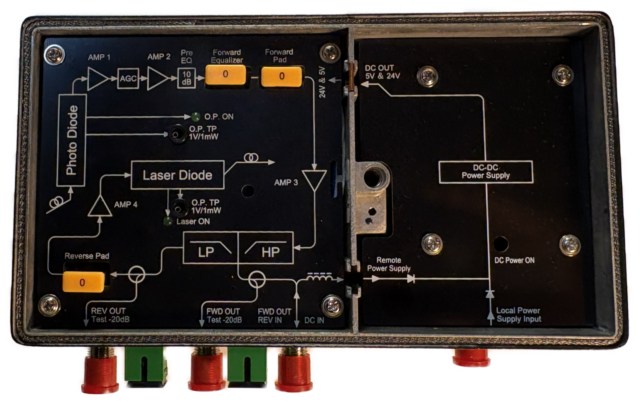

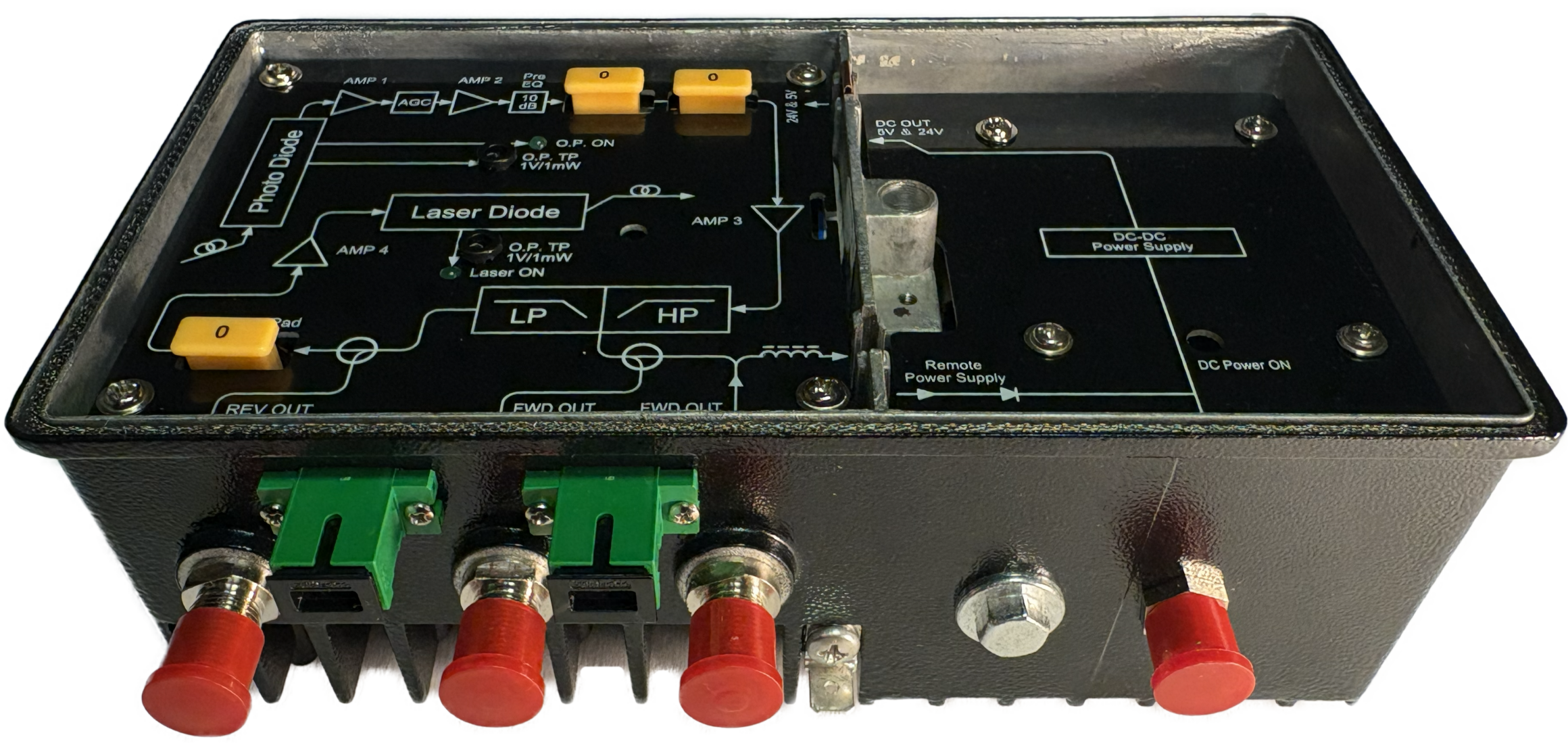

    The MX-ON50 Series Optical Nodes are designed for maximum versatility and performance. They are ideal for fiber-to-the-building applications. The high RF output, available CWDM Return DFB Lasers, Gain and Slope control (equalizers included), offer the Technician the Flexibility Needed for Individual Customer Situations and Installations.

    Features

    • 1 GHz with 50 dBmV output

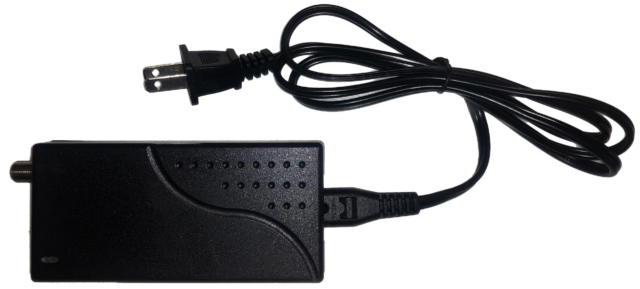

    • Flexible Powering (power supply included)
    • Flexible RF Level and Slope Control Features
    • DFB laser with 3mW Return Laser available
    • Available with optional 16 CWDM Wavelengths
    • LED indicators for optical status
    • Excellent Performance Specs

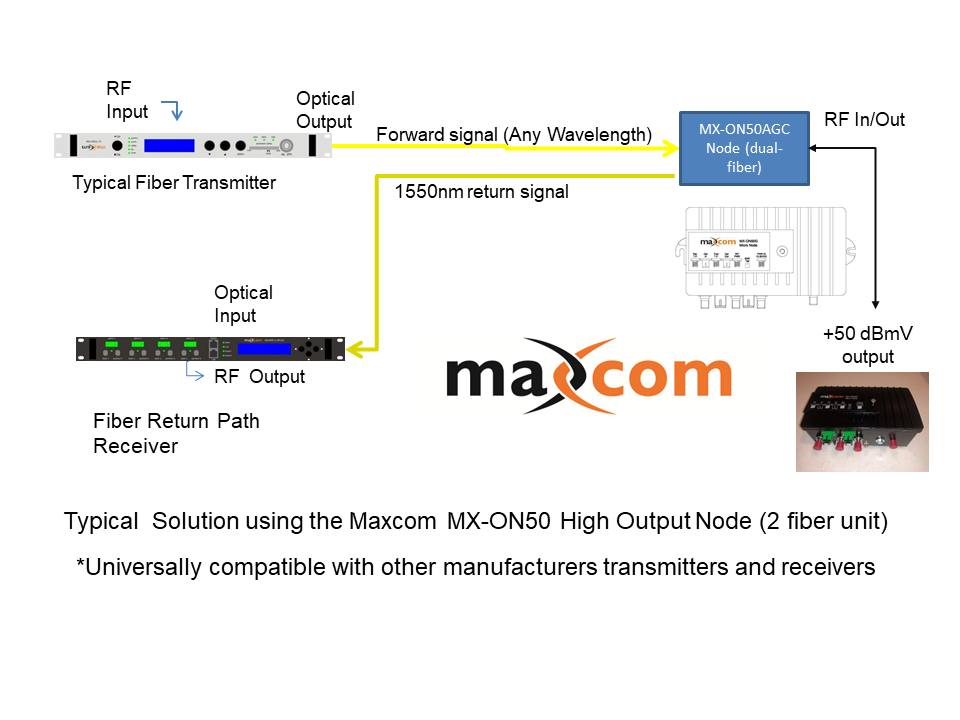

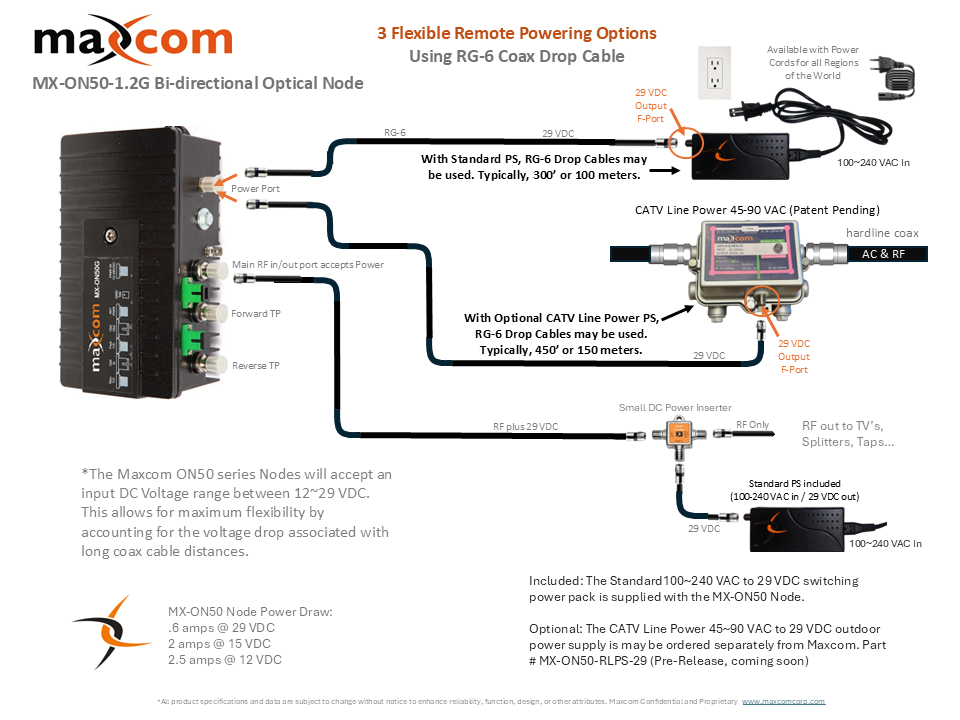

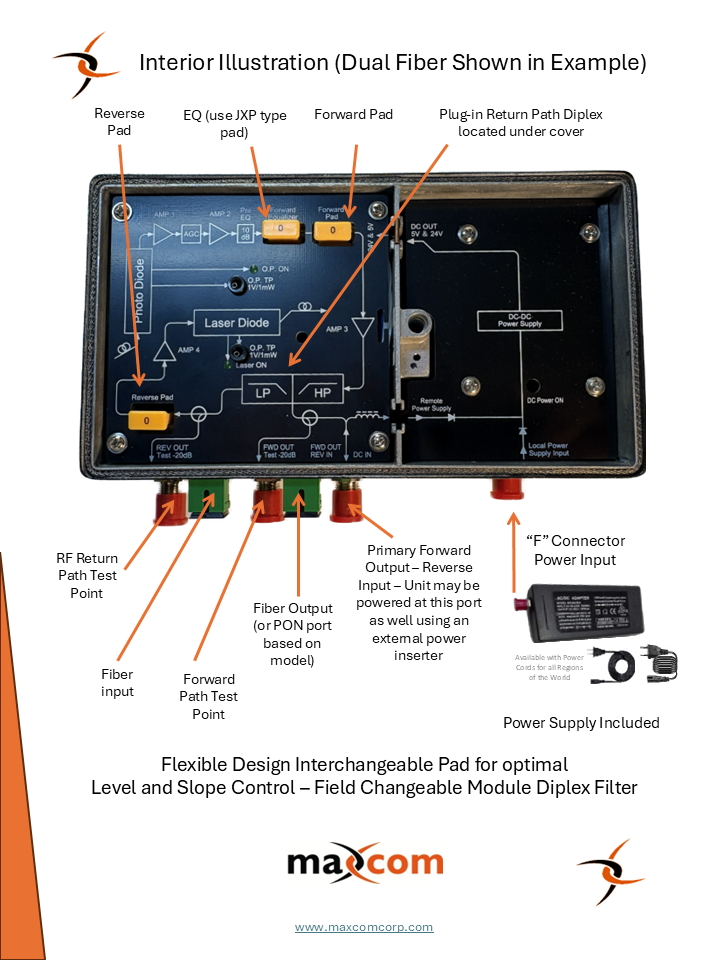

  2. Example Application

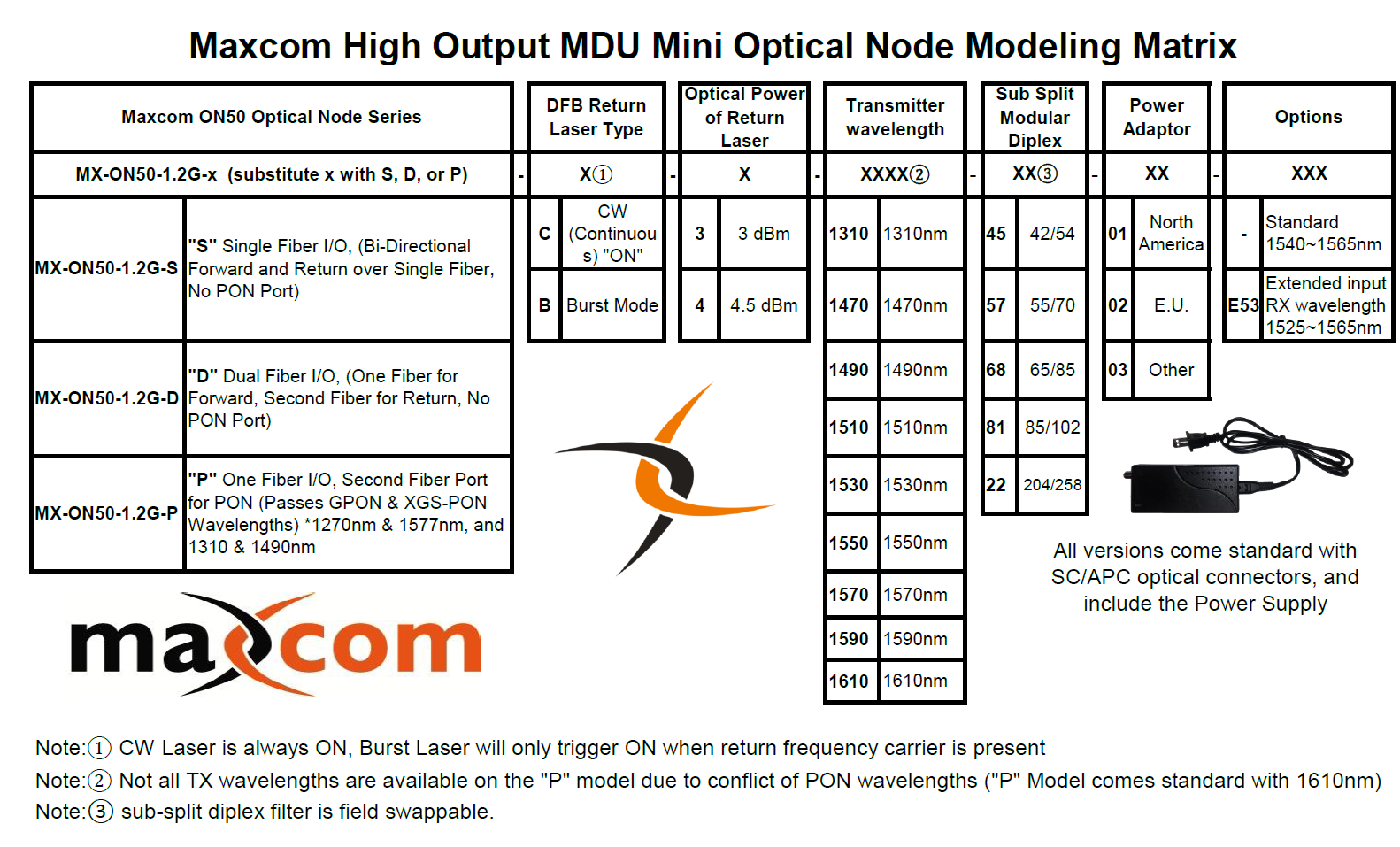

  3. Model Selection

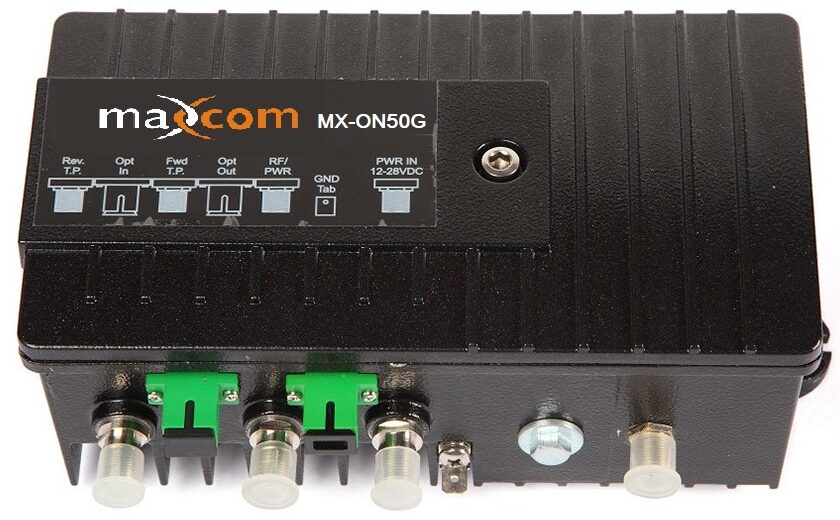

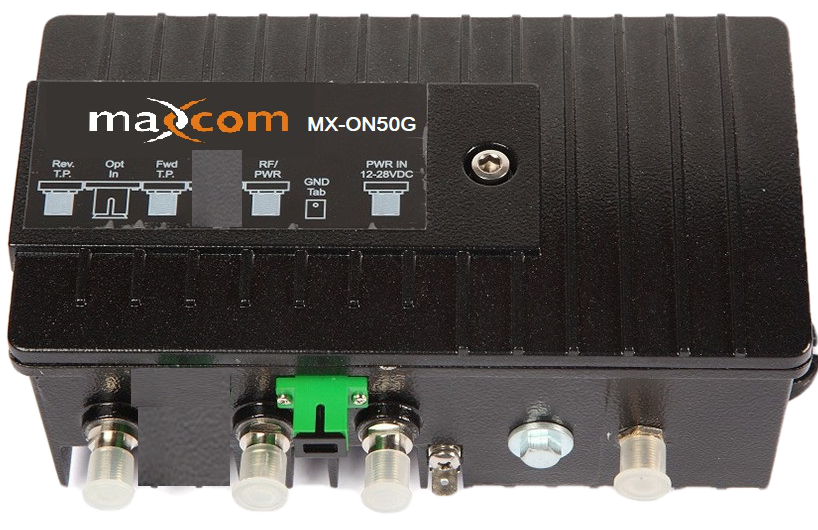

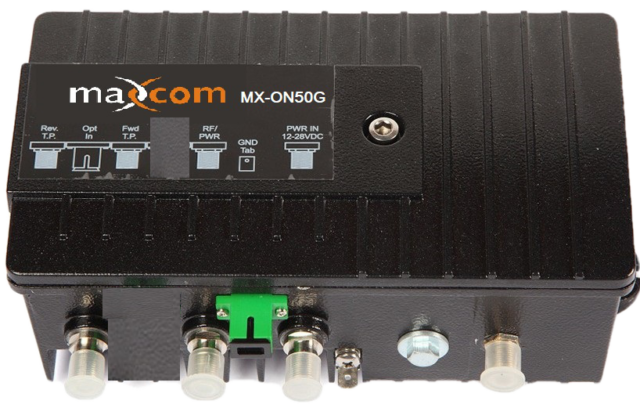

    • MX-ON50G, Mini Fiber Node – High Output RF Receiver & Return Path Transmitter

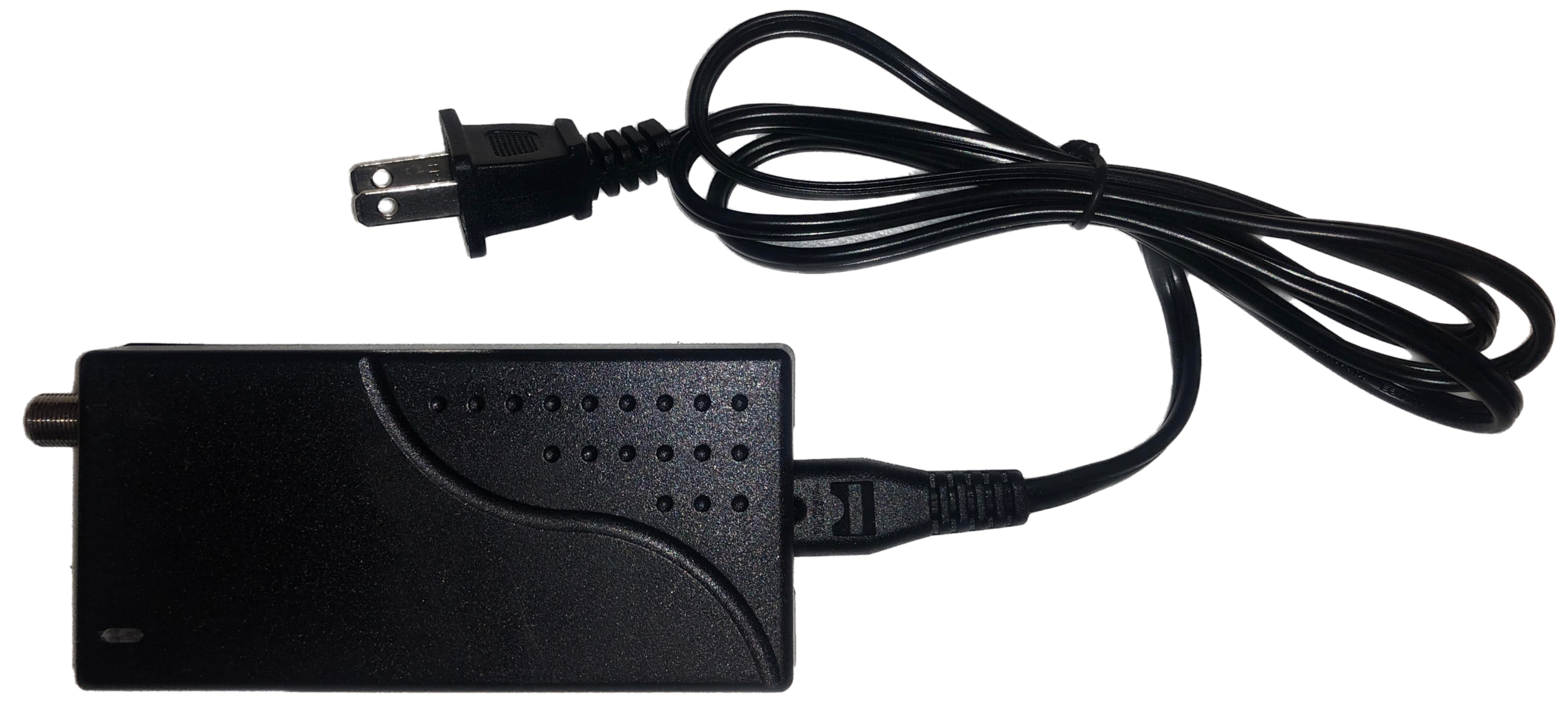

    Standard units are dual fiber, any input wavelength, 1550 return laser, 2mw output. 50dBmV RF output (w/ adjustable EQ and gain), sub split 42/54 MHz , 5-40 MHz return, 54-1002MHz forward. Units come standard with SC/APC connectors, 120VAC Power Supply (29 VDC output). Uses standard JXP style attenuator pads and EQ’s (1GHz)

    Diplex Sub-Split MHz: (Available)
    45: 42/54
    57: 55/70
    68: 65/85
    81: 85/105
    *comes standard w/ 45 (42/54 MHz)

    Reverse Wavelength

    Standard is 1550
    1310nm
    1470nm
    1490nm
    1510nm
    1530nm
    1550nm
    1570nm
    1590nm
    1610nm
    *1270 to 1450nm Also available

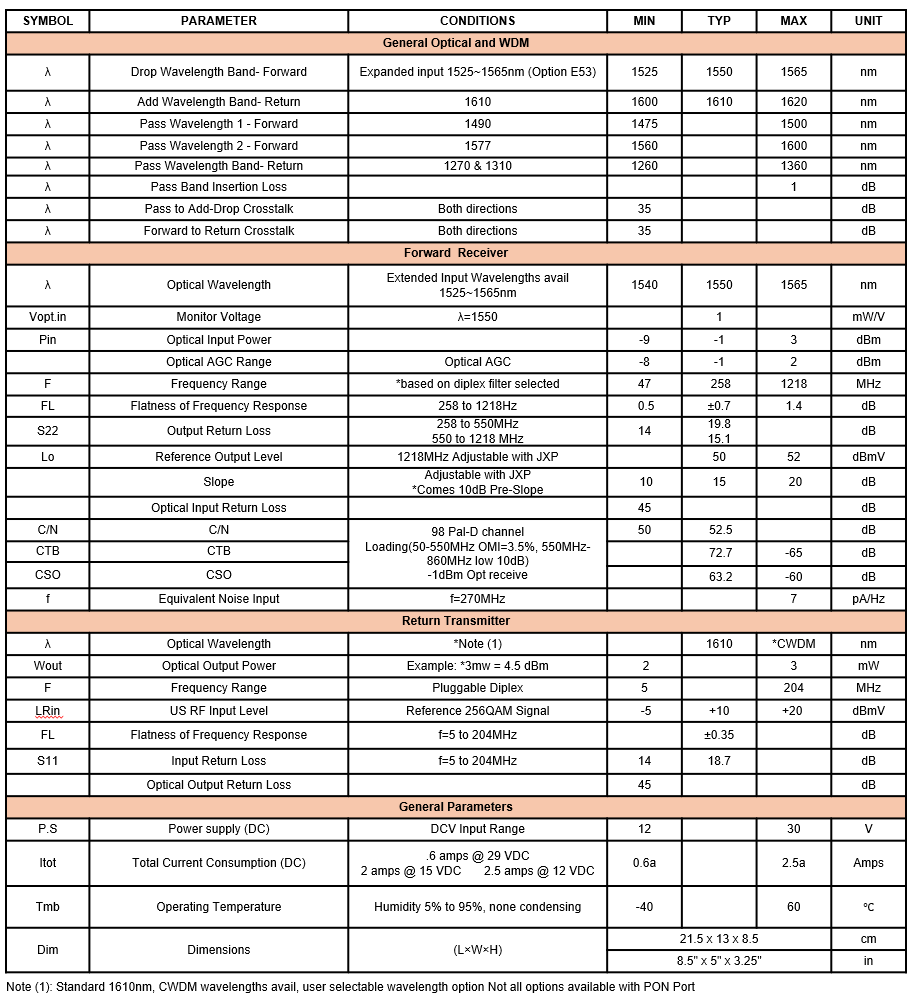

  4. Specifications

    OPTICAL PARAMETERS

    • Optical wavelength: 1200~1600nm
    • Optical input power range: -6~+2dBm
    • Optical connector type: SC/APC
    • Optical fiber type: Single Mode

    FORWARD RF PARAMETER

    • Frequency range: Return 5 to 42 / Forward 54 to 1003MHz (Other return frequency options available)
    • Return loss: 47~550MHz≥18 550~1003MHz≥16
    • Test point: -20dB
    • Gain adjustment (Standard JXP Pad type): 1~20dB JXP attenuator ( selected by user)
    • Slope adjustment (EQ included with unit): uses standard JXP style EQ’s
    • Flatness in band: ±0.75dB
    • RF impedance: 75Ω
    • Nominal output level: ≥50dBmV (with input range -6~+2dBm)

    CIRCUIT PERFORMANCE

    • CNR OMI=4%@42ch, CENELEC: ≥51dB at -2dBm receiving ≥45dB at -8dBm receiving
    • CTB: ≤-65dB
    • CSO 77 channels: ≤-60dB

    RETURN PATH

    • Isolated DFB laser: 1550 ±20nm 2 dBm (typical)
    • Isolated CWDM laser: 1270~1610nm ±3nm 20nm stepping, 2 dBm (typical)
    • RF Input Level (OMI=4%): 20dBmV ~ 30dBmV
    • RF Input Test Point: -20dB
    • Optical Power Indication: LED

    GENERAL

    • Power : AC 90~265V, 47~63Hz
    • Operating temperature: -4~131℉ or -20~55 ℃
    • Storage temperature: -40~158℉ or -40~70℃
    • Size: 8.9” X 5” X 3.3” (225mm X 122mm X 85mm)
    • Weight: 1KG or 2.1lb.
    • Power consumption: 10W DC
