Industrial Grade Media Converter – Switch
Media Converters and switches convert copper ethernet data to fiber optic signals and vice versa at speeds of 10/100/1000Mbps.
- General Details
The Maxcom Industrial Ethernet switch/media converter series uses the latest IC technology from the USA, with highly stable performance, high quality and reliability in harsh environments. Used to convert copper ethernet data to fiber optic signals and vice versa at speeds of 10/100/1000Mbps. Units are available as standalone modules that can be wall mounted or DIN-Rail mounted. Unmanaged, plug and play, no configuration, easy to use. Available in several configurations, optional POE, one or two SFP slots and one to eight RJ45 ports. Built for Maximum Reliability.

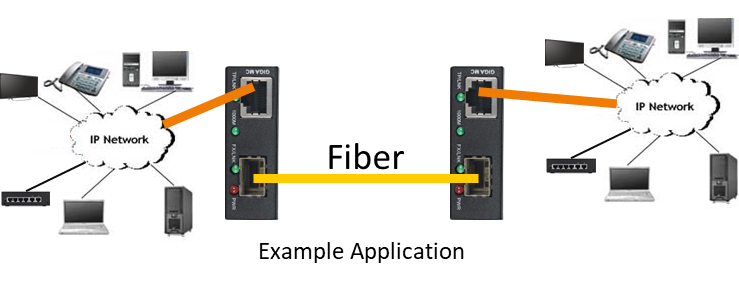

- Example Application
- Model Selection
Ordering Information
MXi-SFP0101G 10/100M/1000M, (1) SFP to (1) RJ45
MXi-SFP0104G 10/100M/1000M, (1) SFP to (4) RJ45
MXi-SFP0108G 10/100M/1000M, (1) SFP to (8) RJ45
MXi-SFP0204G 10/100M/1000M, (2) SFP to (4) RJ45
MXi-SFP0208G 10/100M/1000M, (2) SFP to (8) RJ45
POE Option: Add “POE” to the end of part numbers above
DIN Rail: Part# MXi-DIN19-1R – Optional 19” 1RU DIN Rail
Power Supply: Flexible devices work with External DC power between 12~56 Vdc
*If ordering with POE option, use a 48~56 Vdc power supply
- Specifications
Product Features
- Ports: 10/100/1000Mbps RJ45’s with Auto Uplink , and 1000Mbps SFP Slots
- Automatic MAC address learning and aging
- Automatically supports IGMP (Multicasting)
- 10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports 10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation
- Super lightening protection, IP40
- Excellent heat elimination without cooling
- Flexible powering 12 ~ 48Vdc *(48Vdc with POE)
- Harsh industrial environments
- Operating temperature range -45ˇ~ 85ˇC (-40 ~ +167 F)
*see detailed specifications under documents section
