LGX Mounting Plates / Frames
19" Rack mount plates enable optical fiber cable management and mounting of LGX fiber modules or muxes in a compact 1 or 3 RU space.
- General Details

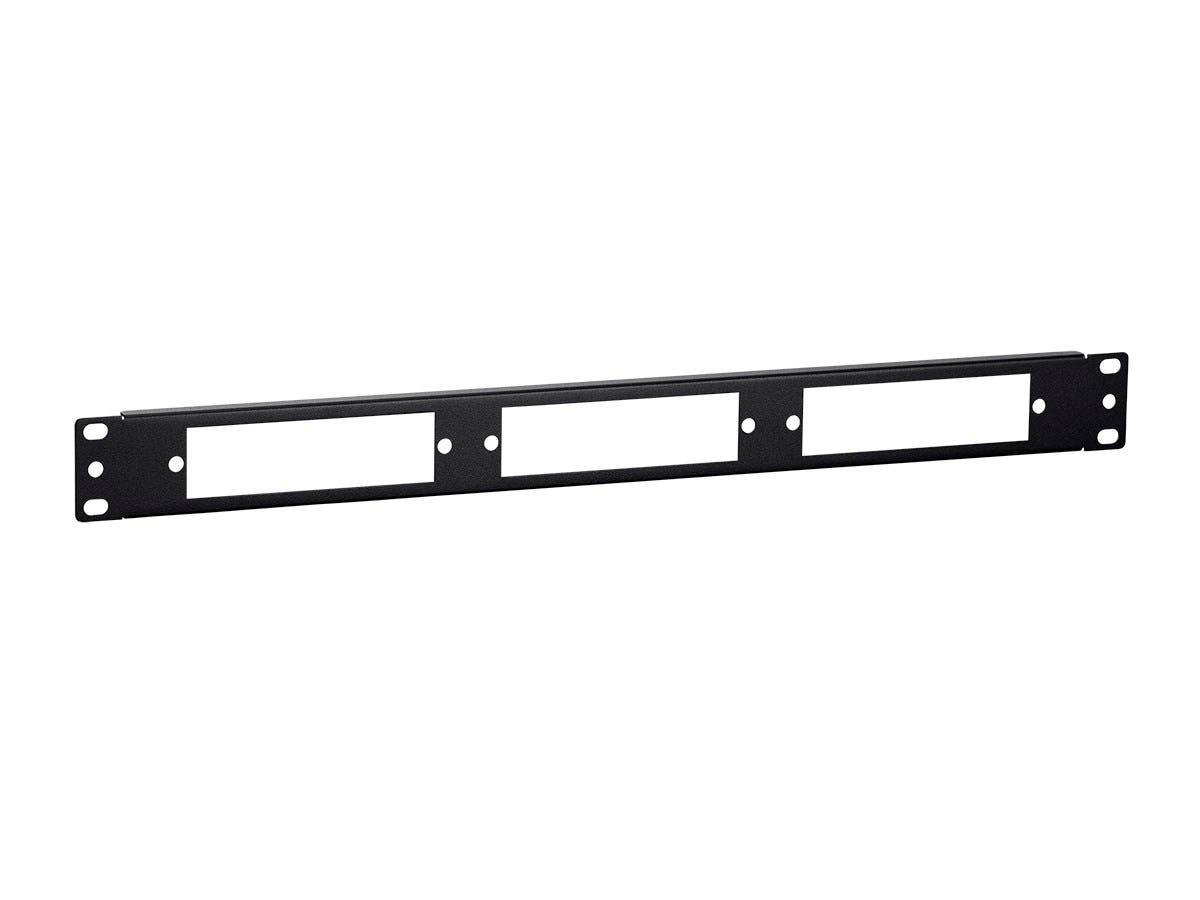

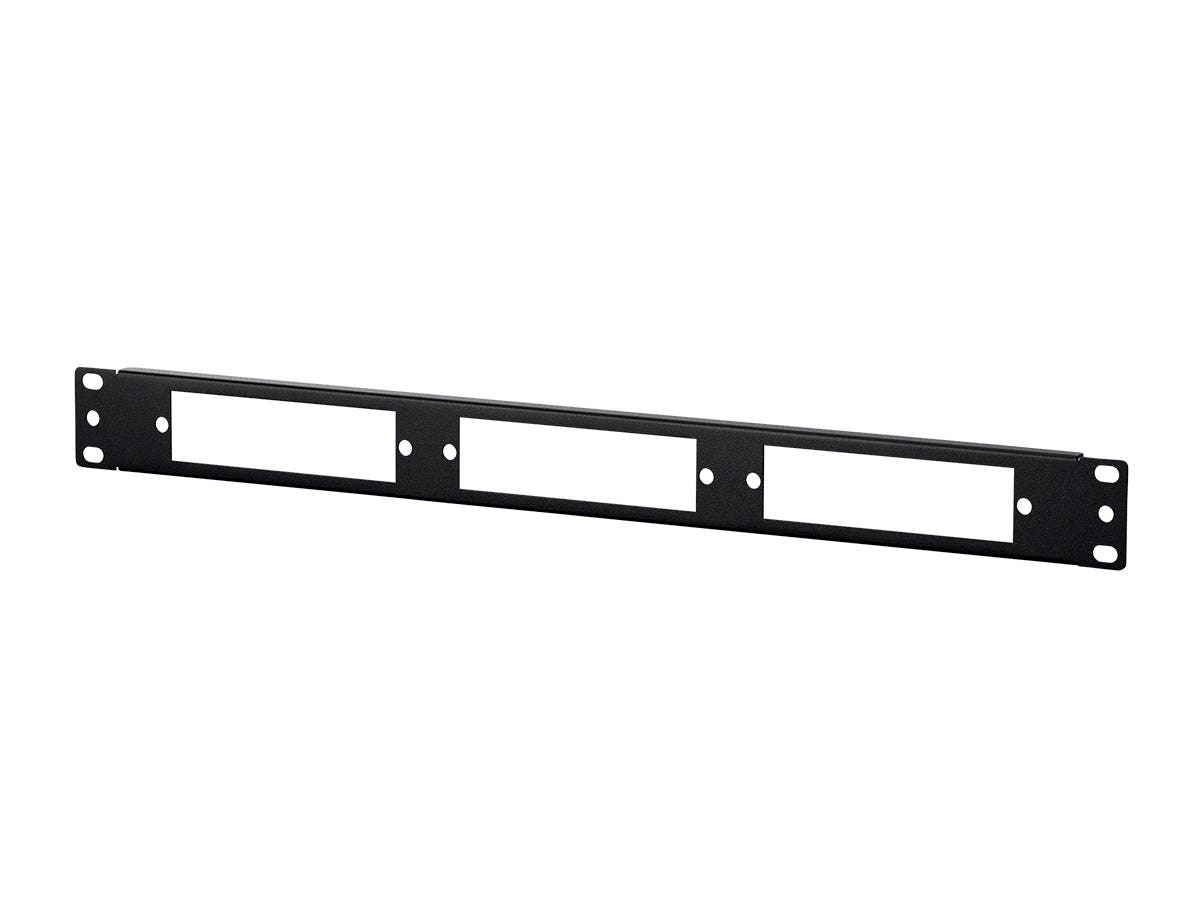

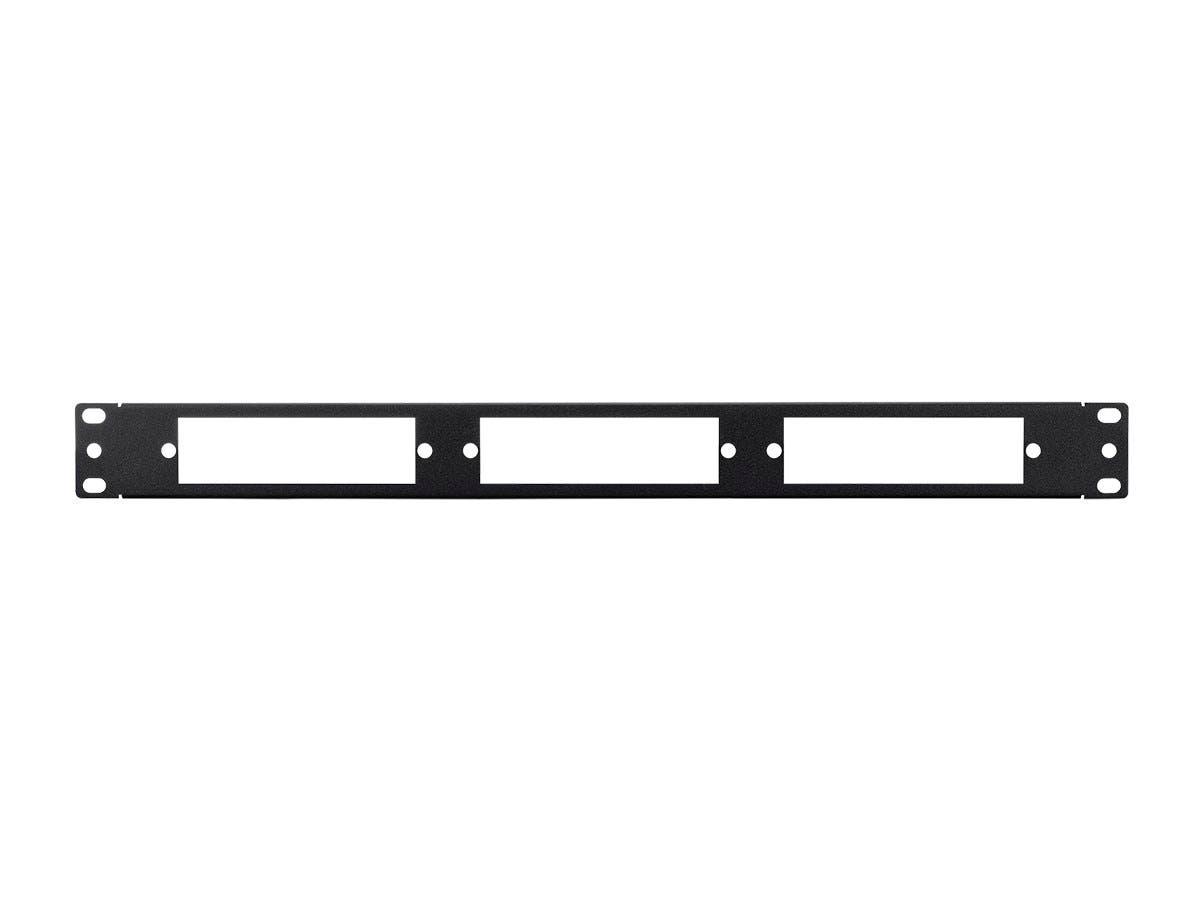

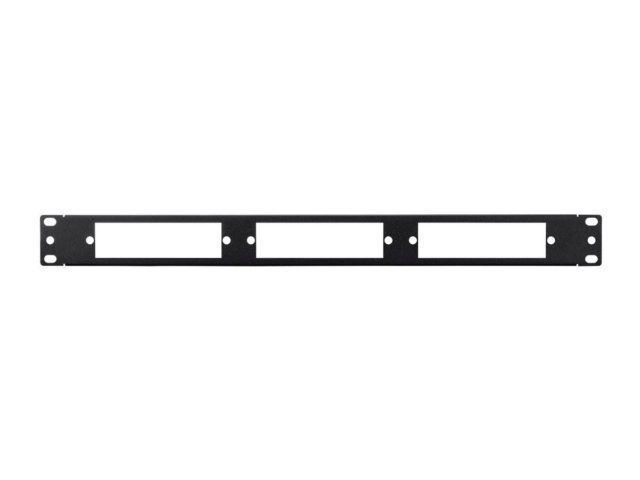

LGX Chassis 1U
The 1RU and 3RU rack mount models hold standard LGX Fiber modules and plates. They are compatible with any standard LGX, MPO, MPT footprint adapter plates or modules.
An economic way to rack mount and manage LGX modules.
Front adapter plate allows easy & quick installation by means of fasteners (snap-in locking style). Black powder-coated 16-guage steel plate.

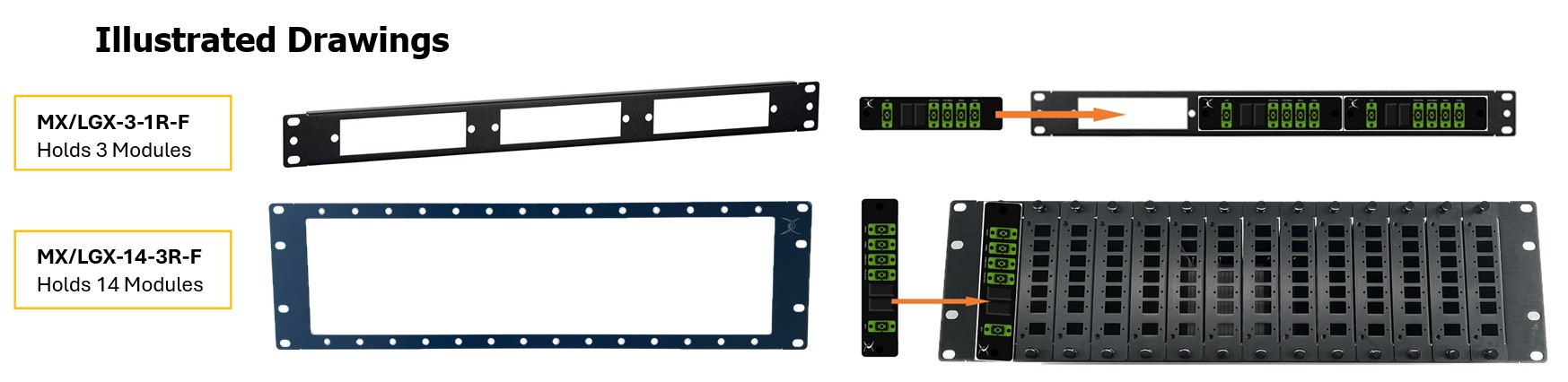

- Example Application
- Model Selection
Model Number Description Size MX/LGX-3-1R-F 3 Module Capacity in a 1-RU 19” Rack Mount Frame 19” X 1.75” MX/LGX-14-3R-F 14 Module Capacity in a 3-RU 19” Rack Mount Frame 19” X 5.25” - Specifications
FEATURES
- Rack Mountable
- Standard EIA 19″ Rack Rails
- Ideal for panel access management
Available in two sizes
- 1RU holds up to 3 LGX Modules
- 19″ X 1.75″

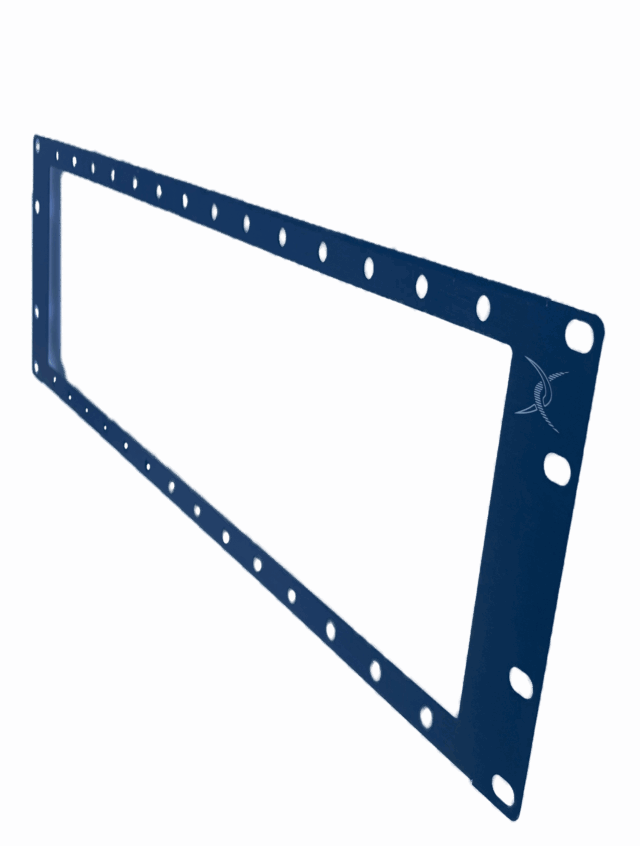

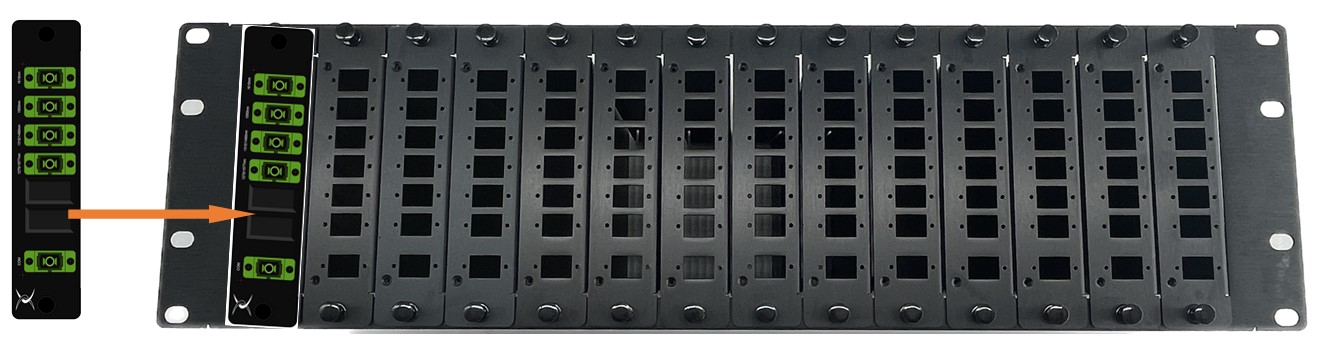

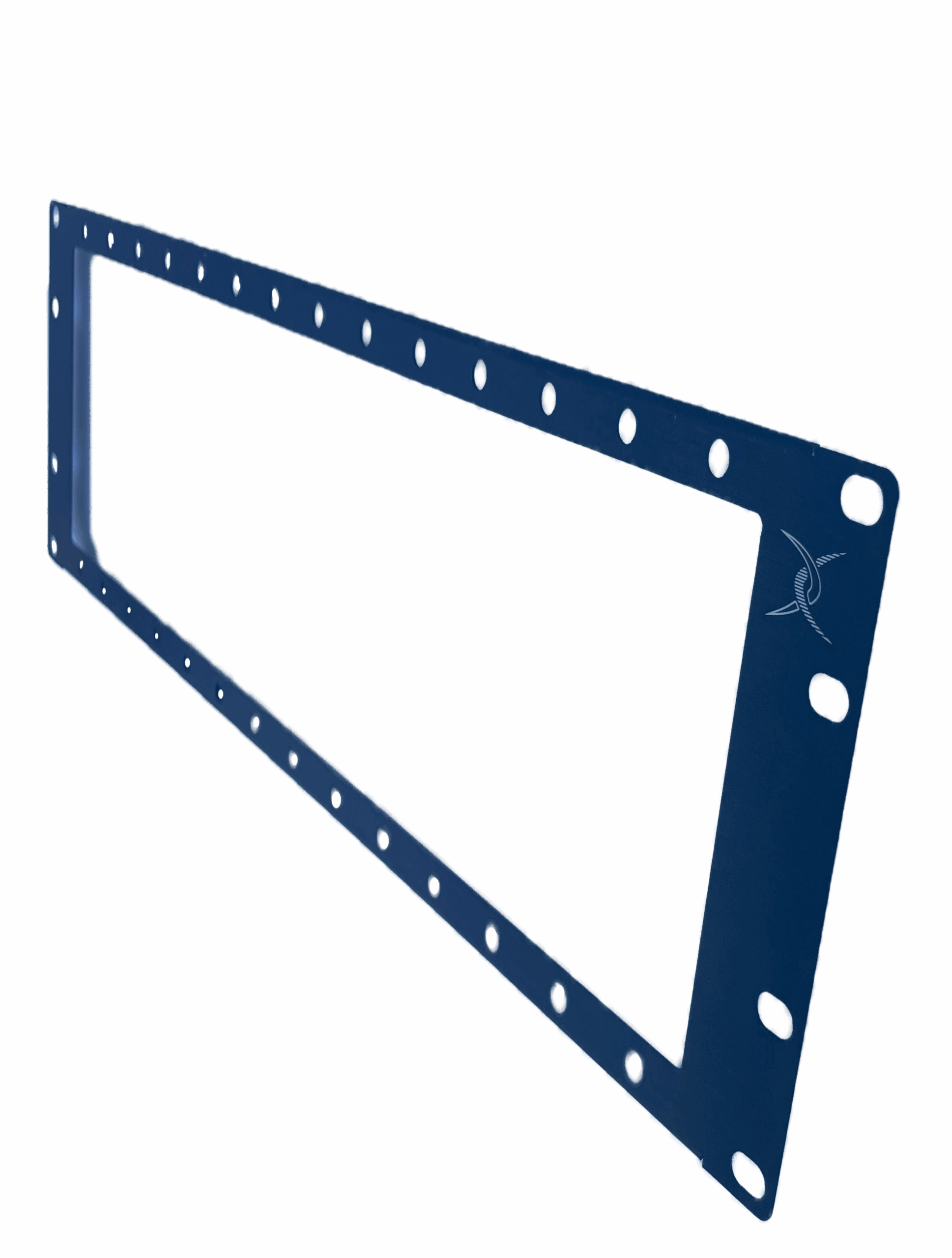

- 3 RU holds up to 14 LGX Modules
- 19″ X 5.25″
- Order Inquiry
- Documents
- Related Products
Coexistence Filter for RF Overlay, GPON and XG(S)PON
The Maxcom Coexistence mux allows systems to offer a combination of services over single fiber FTTx archetectures. These external muxes support a combination of E or GPON, XG(S)PON, and RF Overlay. 1550, 1270, 1577, 1310, 1490 nm

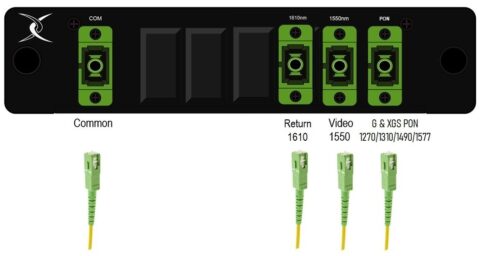

Coexistence Filter for RFoG, RF Overlay, Combo GPON and XG(S)PON
The Maxcom Coexistence mux allows systems to offer a combination of services over single fiber FTTx archetectures. These external muxes support a combination of E or GPON, XG(S)PON, RF Overlays, RFoG forward and return paths. 1550, 1610, 1270, 1577, 1310, 1490 nm

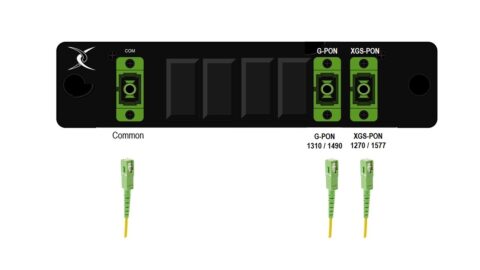

MUX for GPON and XG(S)PON
The Maxcom MX-G-X-PON Mux allows systems to offer a combination of services over single fiber FTTx architecture's. These external muxes support a combination of E or GPON and XG(S)PON. 1270, 1577, 1310, 1490 nm

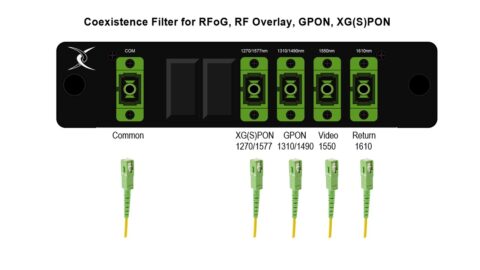

Coexistence Filter for RFoG, RF Overlay, GPON, XG(S)PON
The Maxcom Coexistence mux allows systems to offer a combination of services over single fiber FTTx archetectures. These external muxes support a combination of E or GPON, XG(S)PON, RF Overlays, RFoG forward and return paths. 1550, 1610, 1270, 1577, 1310, 1490 nm
Fiber Optic Splitters
Maxcom Fiber Optic Splitters are available in various configurations and sizes, and are customizable

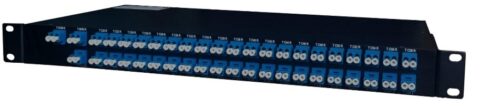

DWDM Mux
Dense wavelength division multiplexing (DWDM) incorporates multiple light wavelengths to transmit and-or receive signals over a single optical fiber. DWDM is a very efficient component of optical networks because it maximizes the use of existing fiber cable and allows new services to added.

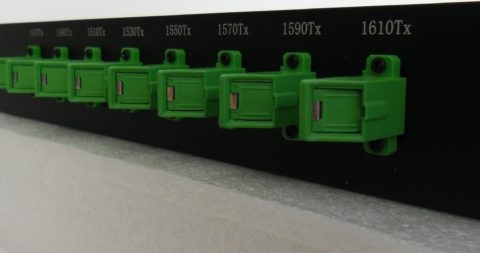

CWDM Mux
