HD Component Video/Audio Inserter to Clear QAM
MX6700 - component HD video inserter enables cost-effective distribution of digital signage and HD subscriber sources using existing broadband coax cabling in sports, retail and entertainment facilities, corporate offices, colleges, schools and worship centers.
- General Details
MX6700 – component HD video inserter enables cost-effective distribution of digital signage and HD subscriber sources using existing broadband coax cabling in sports, retail and entertainment facilities, corporate offices, colleges, schools and worship centers.
Create your own on-site HDTV broadband distribution system using a variety HD, SD, and AV sources.
Distribute digital signage, satellite, cable, and media as HD digital cable channels over existing broadband wiring.
View HD sources at any destination using HDTV displays or tuners.

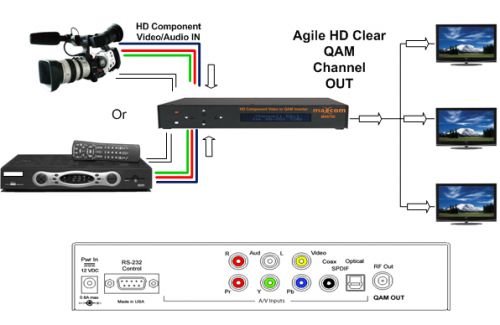

- Example Application
- Model Selection
- MX6700 – HD component video/audio inserter to Clear QAM
- Specifications
FEATURES
- Accepts 720p/1080i VGA, Component, or S-Video/Composite video
- Presents 480p/480i video as full-screen image
- Employs pro-grade HD encoding that minimizes artifacts for motion video and signage “tickers”
- Merges audio with video from analog stereo, digital optical and coax inputs
- Creates a high-definition 720p/1080i MPEG-2 stream for broadcast
- Delivers a fully agile QAM 64/256 digital cable channel 2-135
- Amplifies for distribution over an on-site broadband cable system with adjustable output level to 29 dBmV, compatible with all cable format broadband systems
- Sets up with front-panel buttons and easy to use menus, including inputs,
encoding, channel, and RF options - Integrates with RS-232 control and feedback with simple ASCII commands
- Saves power and rack space using efficient design, fan-free cooling, and compact
enclosure - Includes compact switching power supply
- Mounts in optional 1RU single (RK1) or dual (RK2) 19” rack kits
- Meets RoHS safety and California energy standards
INTEGRATION
- Connect one source to VGA, Component, or S-Video/Composite inputs
VGA sources usually require a VGA scaler to provide 720p/1080i scan conversion and image scaling - Connect audio to digital optical, coax, or stereo audio inputs
- Select inputs, channel, resolution, and RF output parameters from front-panel menus
GENERAL
- Integrated HD/SD A/D converter/modulator/single QAM channel inserter
ENCODING
- MPEG2 Profile:MP@HL for HD, MP@ML for SD
1080i, 720p, 480p, and 480i resolution, depending on input - Video Encoding bitrate 18 or 25 Mbps
- MPEG1, Layer 2 audio
MODULATION
- Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1) , MER 38 dB typical
VIDEO INPUTS
- RGB: RGBHV DB-15 female (1080i/720p/480p/480i), 59.94/29.97 Hz
- Component: RCA Y, Pb, Pr (1080i/720p/480p/480i) , 59.94/29.97 Hz
- S-Video: Y(Composite), C (Blue Pb) 480i, 29.97 Hz
- Composite Video: RCA female (480i), 29.97 Hz
AUDIO INPUTS
- Digital SPDIF: Coax and TOSlink optical output, PCM 48K sample rate
- Analog L and R: 2 stereo RCA female jacks
- Inputs assignable to video inputs
RF
- F’, female, 75 ohm impedance
- Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing 6 MHz bandwidth fits any open channel without interference to adjacent channels
- 1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
- 29 dB typical output power, attenuated in 5 steps, approx 4 dB
RS-232 CONTROL
- DB-9 male, RS-232 data link to control system
- 300 to 19,200 baud (9600 default), 8 data bits, no parity, 1 stop bit
FRONT PANEL
- Power button
- Select and directional buttons for menu setup
- Menu LCD, 2 lines of 20 blue characters each
BACK PANEL
- POWER- 2.1mm coaxial jack (inside center conductor positive)
- 0.7 A maximum, 11.5 to 13.5 VDC, 12 VDC typical
COMPLIANCE
- FCC Class B, ROHS, meets California standards
