2×1 Auto Detect Optical Switch
A (2x1) optical protection switch provides two diverse routes for the same link. On detection of a failure, the unit automatically switches to the redundant route.
- General Details

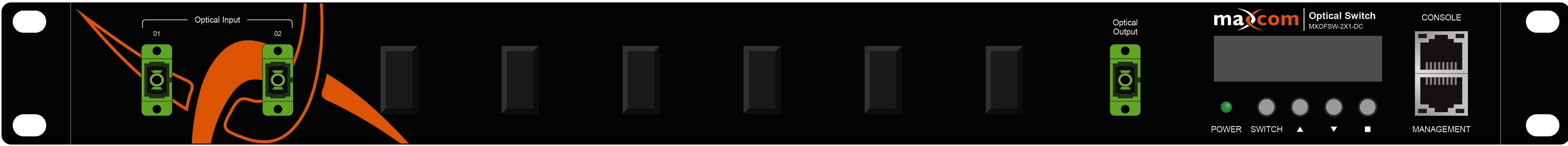

The MXOFSW-2X1 is a 2×1 auto detecting optical switch. It will support two optical fibers input and one fiber output with an auto detect switch function. The unit supports a wide operating wavelength range and a quick switching rate.

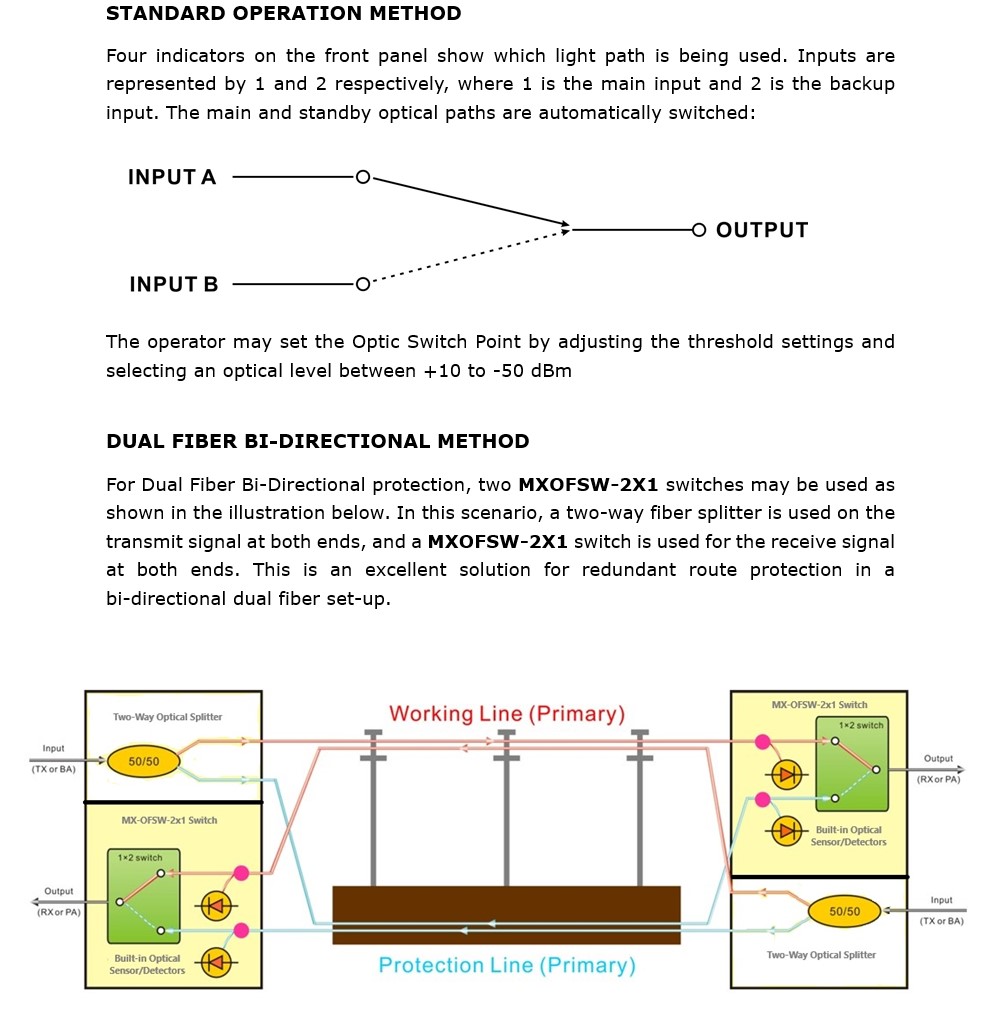

- Example Application

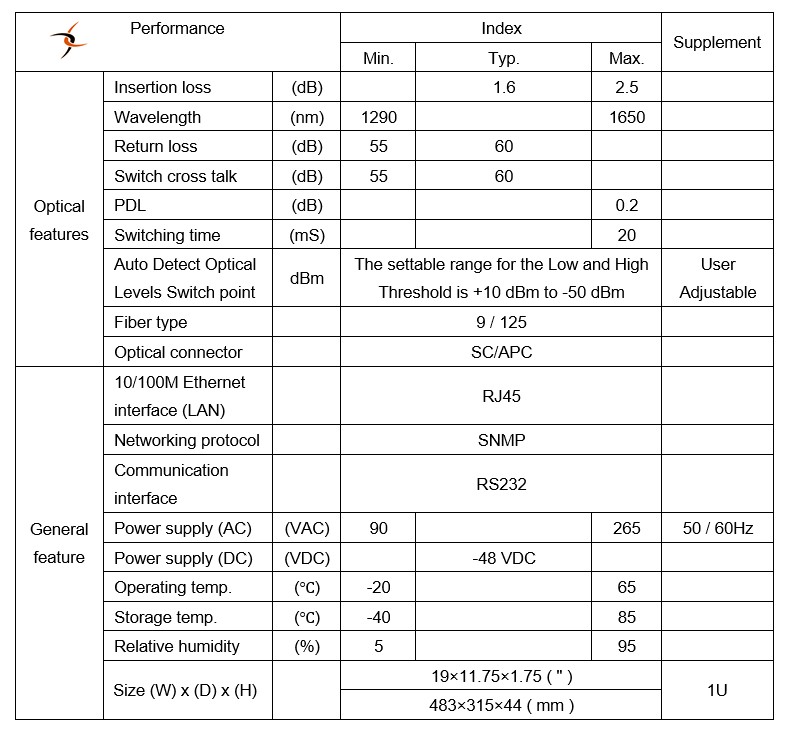

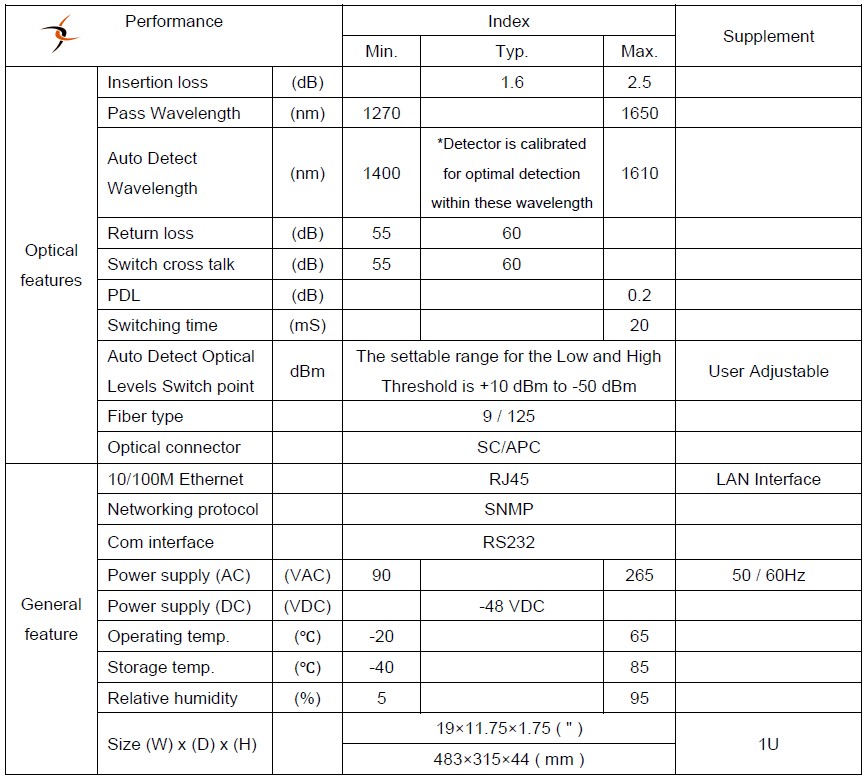

- Specifications
MAIN FEATURES
- Any Wavelength
- Auto Detecting of Optical Levels
- Highly Configurable to Fit Network Applications
- Simple, Plug-and-play Installation
- User-definable Thresholds and Alarms
- Latching Optical Switch
- Front Panel LED and Remote Alarm
- Web Interface
- Automatic and Manual Modes
- Order Inquiry
- Documents
- Related Products
2 x 1 RF Switch with Auto Detect
Auto detect 2×1 RF switch, used for simple automated switching or redundancy of the RF signal path.

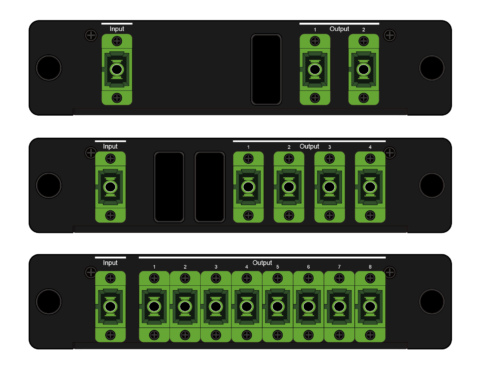

Fiber Optic Splitters
