Fiber Optic Multiplexer with Ethernet + 4xE1/T1 + RS232
MX100T1, a Fiber optic Multiplexer with Ethernet + 4xE1/T1 + RS232 interfaces, provides multiple broadband transmission capacities over one fiber optic strand for point-to-point connectivity.
- General Details
MX100T1, a Fiber optic Multiplexer with Ethernet + 4xE1/T1 + RS232 interfaces, provides multiple broadband transmission capacities over one fiber optic strand for point-to-point connectivity. With short/long haul optical transceivers, MX100T1 may provides short/long reach up to 11 Okm distance. The Ethernet interface is 100 Mbps auto negotiation and can be full/half duplex. The E1 is transparent and in full rate, which can support the E1 framed and unframed mode, including fractional E1. The RS232 interface is set at the rate of 115.2 Kbps, none parity, 8 data bit, 1 stop bit. A pair of CL-100T1 offers a cost effective solution for Fiber to the Building (FTTB) applications to meet various corporate/enterprise demands such as MTU/MDU. The MX100T1 is indeed an ideal FTTB broadband solution for LAN-to-LAN connectivity, InternetAccess, Serial RS232and multiple E1 Broadband Voice/data/video applications.

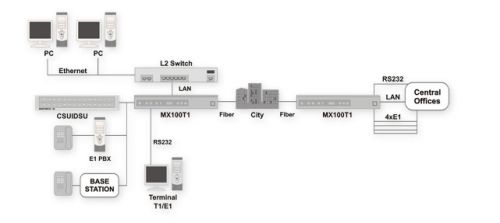

- Example Application
- Model Selection
- MX100T1 – Fiber Optic Multiplexer with Ethernet + 4xE1/T1 + RS232, 1 Fiber, 40km
- MX100T1/80 – Fiber Optic Multiplexer with Ethernet + 4xE1/T1 + RS232, 1 Fiber, 80km
- MX100T1/110 – Fiber Optic Multiplexer with Ethernet + 4xE1/T1 + Rs232, 1 Fiber, 110km
- Specifications
FEATURES
- Support 4xE1/T1+100 Mbps Ethernet+RS232 interface Port
- Low Bit Error Rate
- Transmission Range up to 110km
- Power suppiles: 110/240V AC and -48CV DC
E1 INTERFACE
- Line Interface: ITU-T G.703
- Line Rate: 2.048 Mbps +/- 50ppm
- Line Code: HDB3
- Frame Format: Unframed
- Line Impedance: 120 ohm
- Connectors: RJ-48C
T1 INTERFACE
- Line Interface: ANSI T1.403, ITU-T G.703
- Line Rate: 1.544 Mbps +/- 50ppm Line Code: B8ZS
- Frame Format: Unframed
- Line Impedance: 100 ohm
- Connectors: RJ-48C
ETHERNET INTERFACE
- High performance bridge for Ethernet extension
- 100BASE-T Ethernet interface
- Fully compatible with IEEE802.3, 802.3u
- Line Rate: up to 115200 bps
- Connects: RJ-45 to RS232 DB9 cable
DIMENSIONS
- 260mm x 151 mm x 44mm
ENVIRONMENT
- Operating temperature: 0oC to 40oC
- Storage temperature: -20oC to 70oC
- Operating humidity: 10% to 90% RH
- Storage humidity: 5% to 90% RH
POWER REQUIREMENTS
- Voltage: 110/240V Auto-sense Internal Power
REGISTRATION
- FCC Part 15 Class A, CE, UL, CUL, TUV
NETWORK MEDIA
- 10BASE-TX: UTP category 3 or better
- 100BASE-TX: UTP category 5
- 100BASE-FX: SC 62.5/125u or 9/125u fiber cable
CROSSOVER PUSH BUTTON
- 1 crossover button for the UTP port
LED INDICATORS
- Power, Link/Activity, Full or Half Duplex/Collision,10/100 Mbps
