Fiber Optic Gigabit Ethernet Transceiver (MX1250)
MX1250 is a Gigabit Ethernet transceiver that repeats optical signals between two fiber optic ports. The MX1250 can convert signals between multimode and singlemode fiber optic cable or it can act as a singlemode repeater.
- General Details
MX1250 is a Gigabit Ethernet transceiver that repeats optical signals between two fiber optic ports. The MX1250 can convert signals between multimode and singlemode fiber optic cable or it can act as a singlemode repeater. MX1250 can be configured to transmit over one or two fiber strands. MX1250 expands network data transmission distances beyond the 2km limitation of multimode optical fiber to a maximum of 110km by transmitting over singlemode fiber optic cable in full duplex mode. The MX1250 has easy-to-read diagnostic LED’s for continuous status reports on network speed, duplex media access control connection, and network traffic. The MX1250 uses standard SC or SC/APC fiber optic connectors and is IEEE 802.3z 1000BASE-FX compliant and operates with all devices that adhere to this standard.

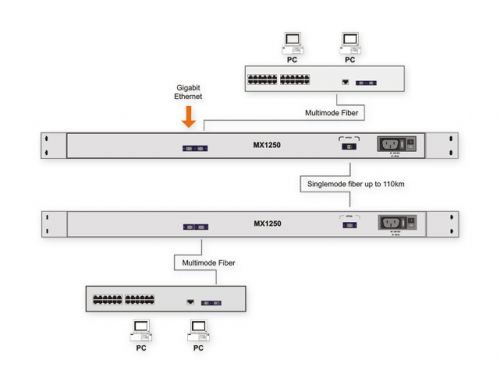

- Example Application
- Model Selection
- MX1250 – 1000BASE Fiber Optic Gigabit Ethernet Transceiver/Receiver, 2 Port, 1 Fiber, SC/APC Connector, 40km
- MX1250/80 – 1000BASE Fiber Optic Gigabit Ethernet Transceiver/Receiver, 2 Port, 1 Fiber, SC/APC Connector, 80km
- MX1250/110 – 1000BASE Fiber Optic Gigabit Ethernet Transceiver/Receiver, 2 Port, 1 Fiber, SC/APC Connector, 110km
- Specifications
FEATURES
- 1000 Mbps Full Duplex Gigabit Ethernet Transceiver
- 1 x 1000BASE-FX LAN Fiber Port (multimode or singlemode optics)
- 1 x 1000BASE-FX WAN Fiber Port (singlemode optics 1310, 1550, CWDM, DWDM)
- 110km Transmission Range
- 1 or 2 Fiber Strand Transmission
- Provide full wire-rate 2000 Mbps Duplex Transmission for greater network performance
- Plug-n-Play Gigabit Ethernet Mode Converter or Singlemode Repeater
- IEEE 802.3z compliant
- Guaranteed switch performance and hardware compatibility with other switches, hubs and adapters
STANDARDS
- IEEE 802.3z 1000BASE-FX Gigabit Ethernet (MX1250, MX1250C)
- IEEE 802.3ab 1000BASE-T (MX1250C)
CONNECTION PORTS
- 2 Fiber Port Transceiver: SC/PC or SC/APC
DIMENSIONS
- 480mm x 225mm x 44mm
ENVIRONMENT
- Operating temperature: 0oC to 50oC
- Storage temperature: -20oC to 70oC
- Operating humidity: 10% to 90% RH
- Storage humidity: 5% to 90% RH
POWER REQUIREMENTS
- Voltage: 110/240V Auto-sense Internal Power
REGISTRATION
- FCC Part 15 Class A, CE, UL, CUL, TUV
NETWORK MEDIA
- 62.5/125 microns muitimode fiber cable
- 9/125 micron singlemode fiber cable
LED INDICATORS
- Gig E: Power, Link
- Order Inquiry
- Related Products
Mini Media Converter
The MX Series Mini Media Converter can convert signals between RJ-45 Gigabit Ethernet connections and fiber optic cable via an SFP slot.

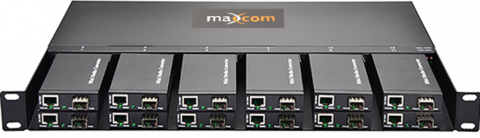

1U Rack Mount, 12 Slot, Mini Media Converter Chassis
