MUX for GPON and XG(S)PON

The Maxcom MX-G-X-PON mux allows systems to offer a combination of PON services over single fiber FTTx architectures. These external muxes support a combination of 1G and 10G PON (E or GPON, XG(S)PON).

Standard units are manufactured into a small LGX platform, and may be customized to accommodate customer requirements. Customized configurations are also available to support NG-PON2 ports or OTDR ports, contact Maxcom for available options or requirements. Transparent to incoming data, the mux/filter effectively increases existing cable capacity by multiplexing multiple separate wavelengths/channels over one single fiber.

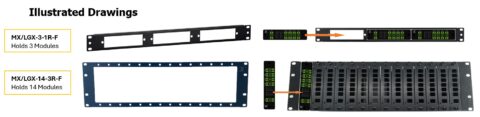

The Maxcom Mux comes standard with SC/APC or LC/UPC, but nay be ordered with other connector types. Because it is a passive device, it requires no power. Maxcom offers very economically priced mounting plates to allow 19″ rack mounting.

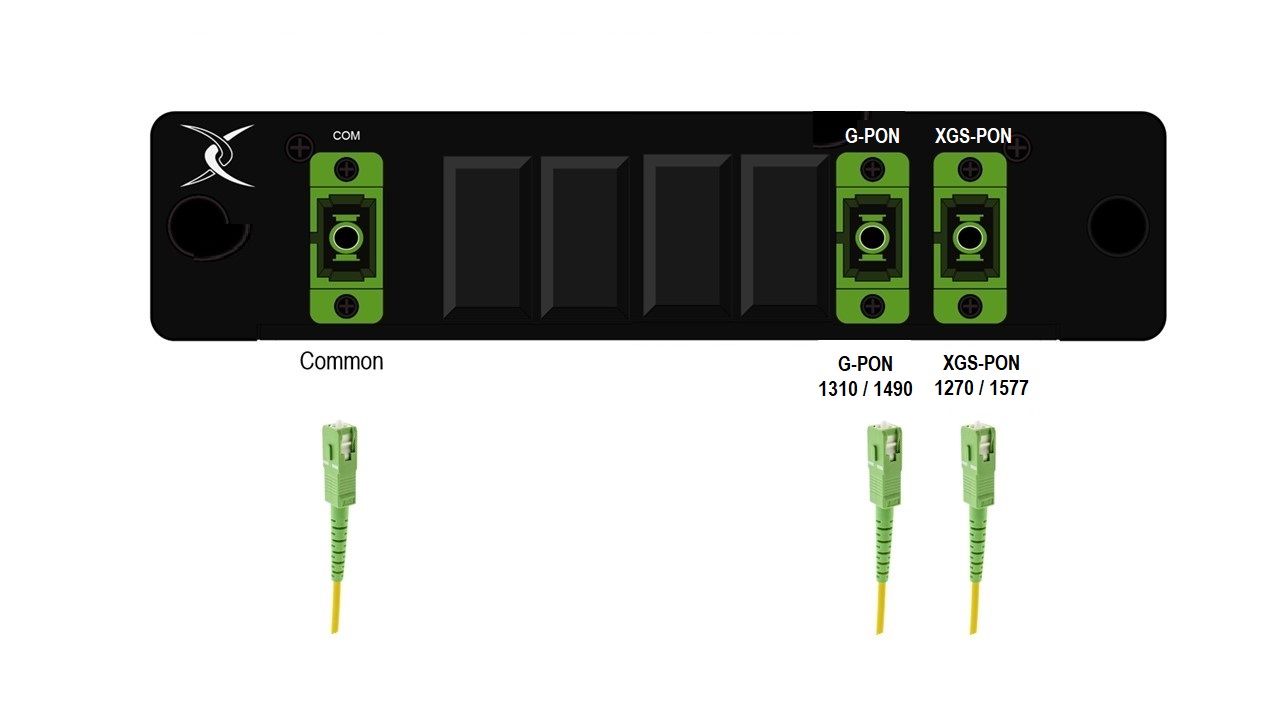

Standard Configuration:

• Common Port
• 1310/1490nm PON Port
• 1270/1577nm XGSPON Port

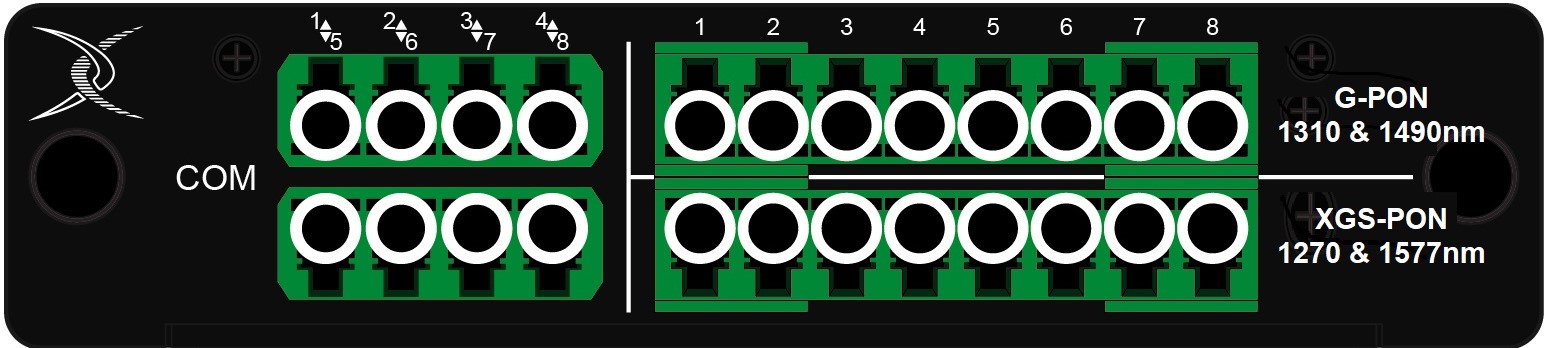

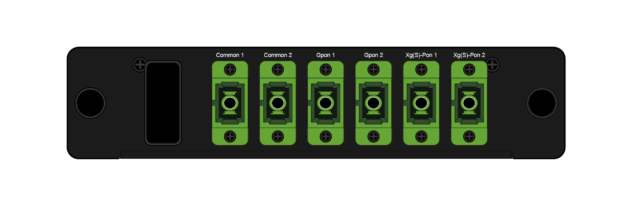

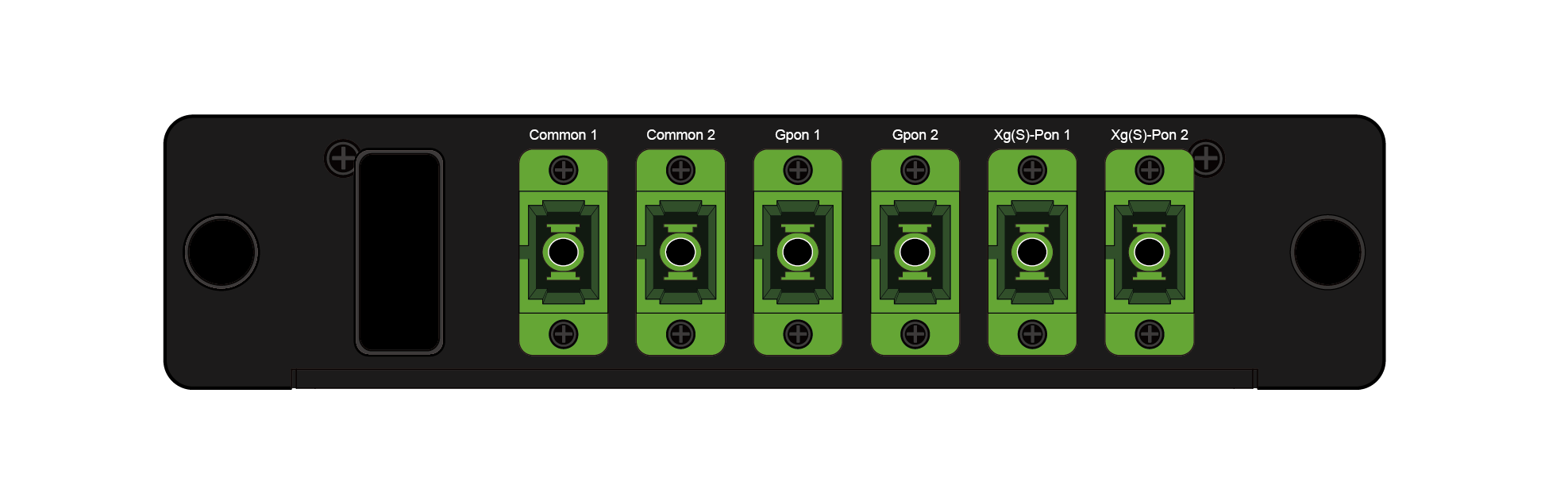

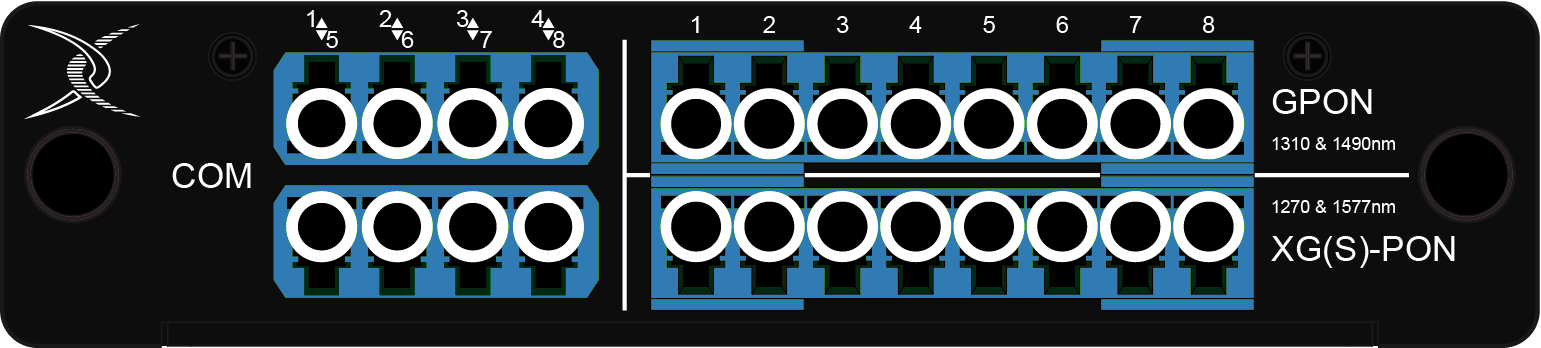

Available with Single, Dual, or Eight muxes built into a single module.
