Coexistence Filter for RF Overlay, GPON and XG(S)PON

The Maxcom Coexistence mux allows systems to offer a combination of services over single fiber FTTx architectures. These external muxes support a combination of E or GPON, XG(S)PON, RF Overlays, RFoG.

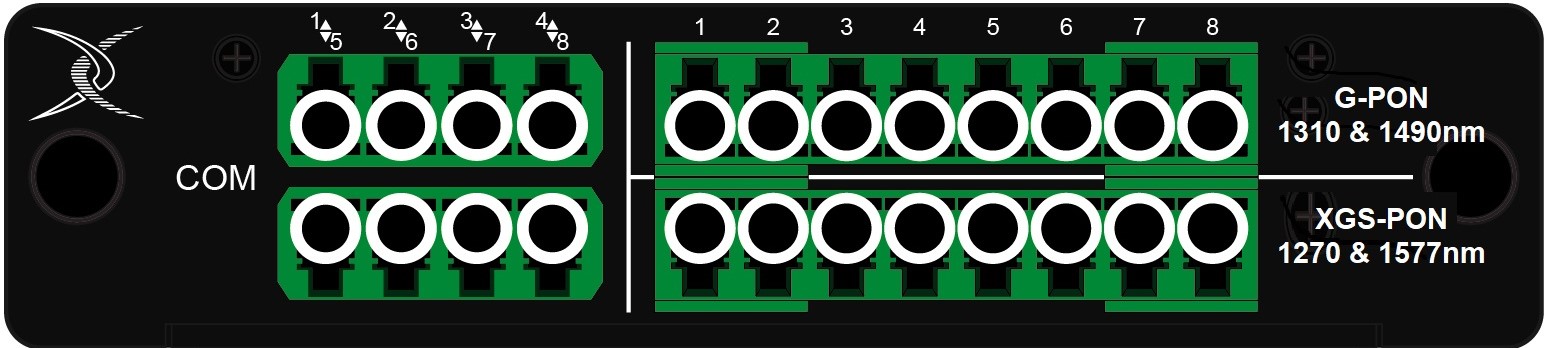

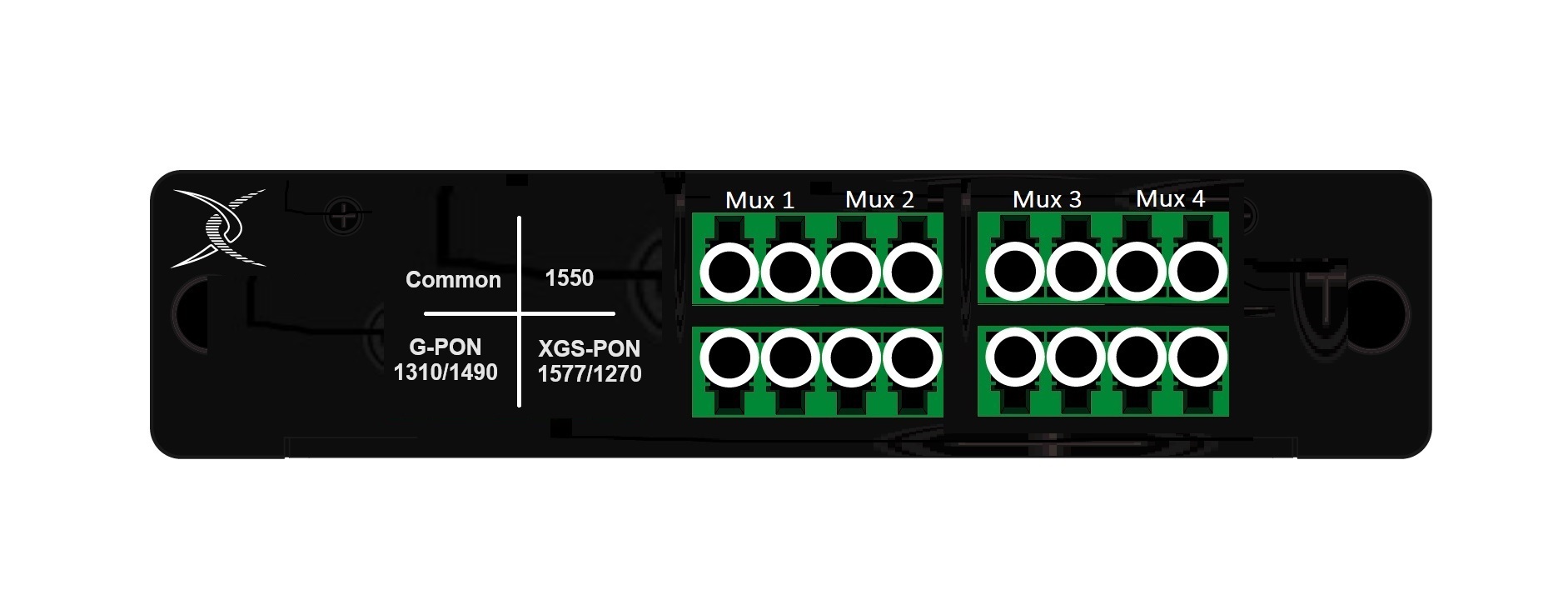

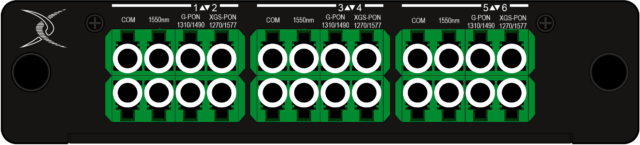

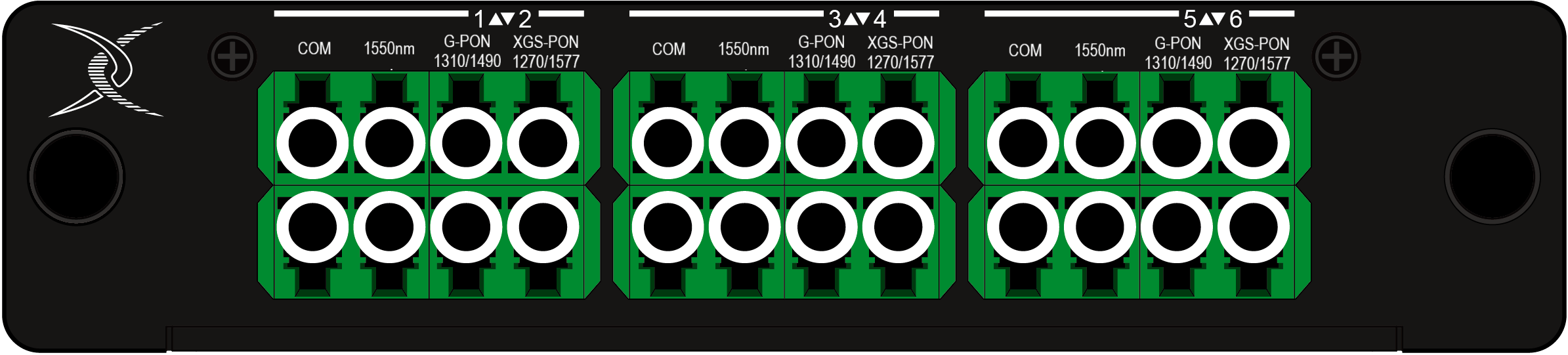

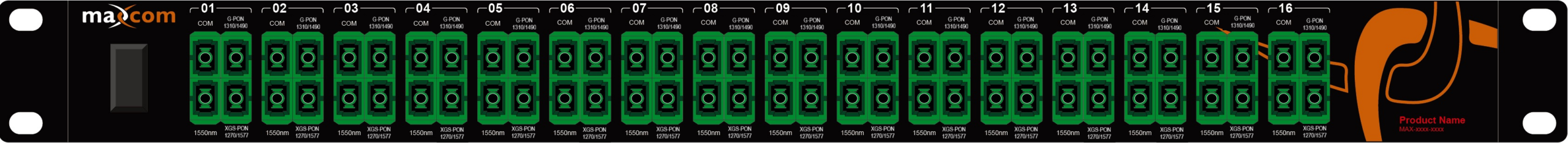

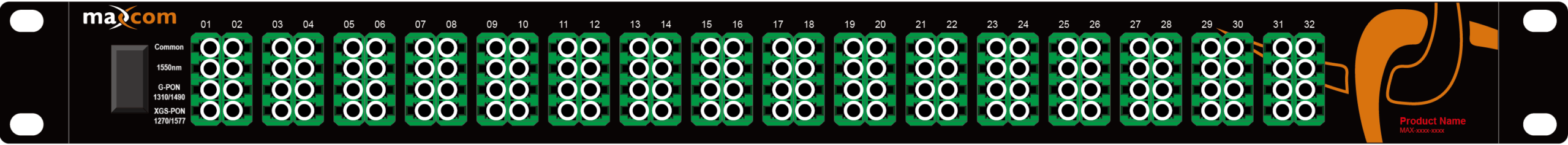

Standard units are manufactured into a small LGX platform, and may be customized to accommodate customer requirements. Customized configurations are available to support NG-PON2 ports or OTDR ports, contact Maxcom for available options or requirements. Transparent to incoming data, this MX coexistence mux/filter effectively increases existing cable capacity by multiplexing multiple separate wavelengths/channels over one single fiber.

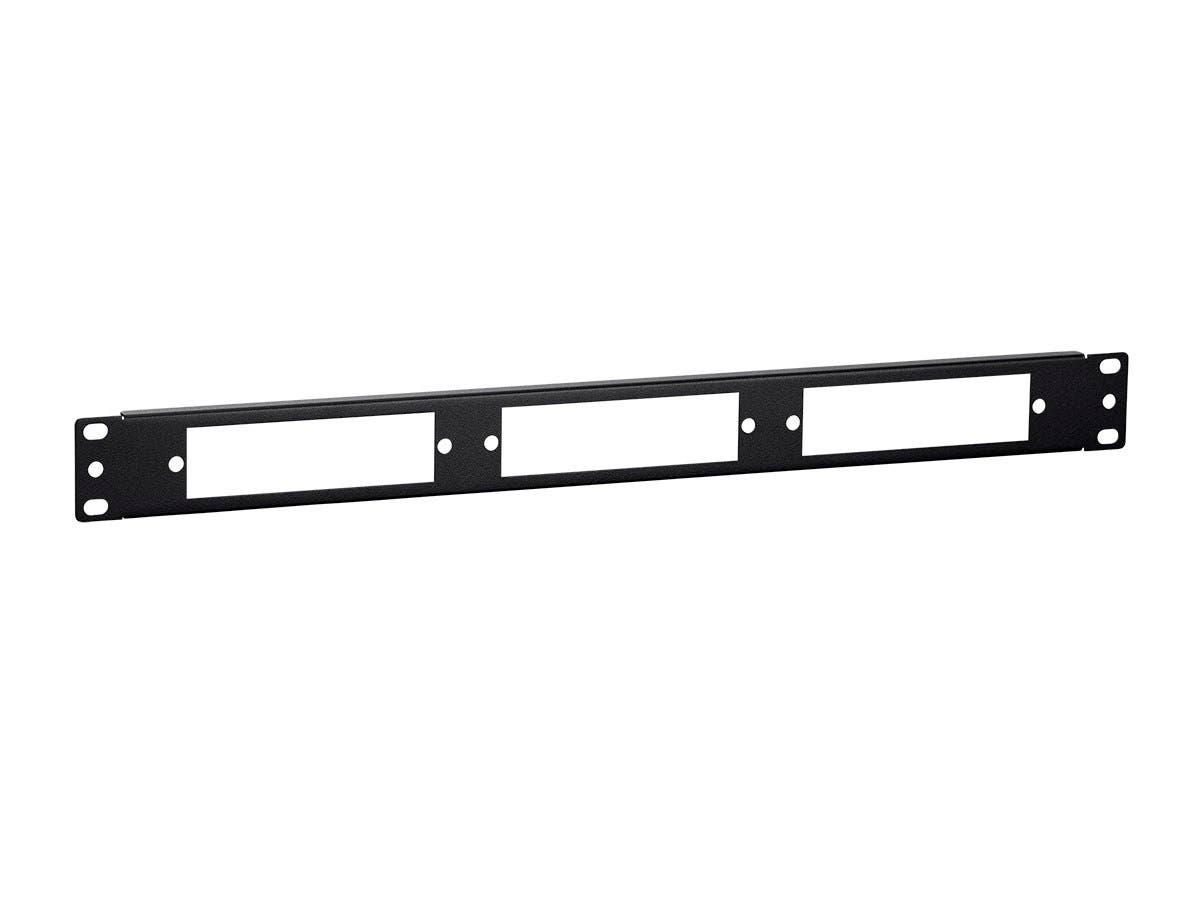

The Maxcom Coexistence Mux comes standard with SC/APC, but nay be ordered with other connector types. Because it is a passive device, it requires no power. Maxcom offers very economically priced mounting plates to allow 19″ rack mounting.

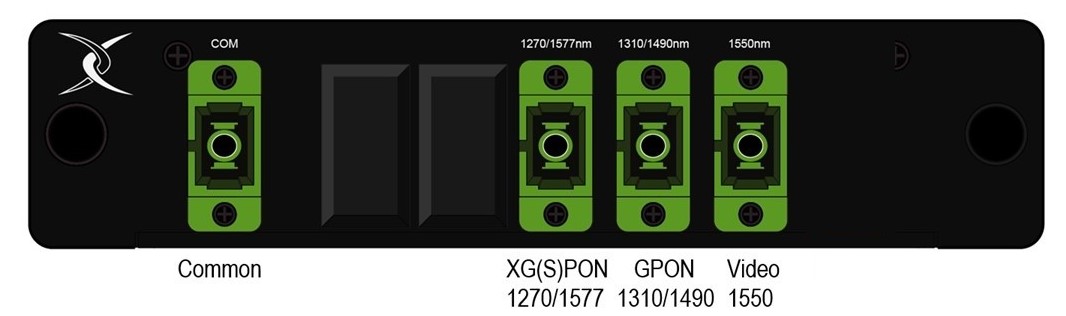

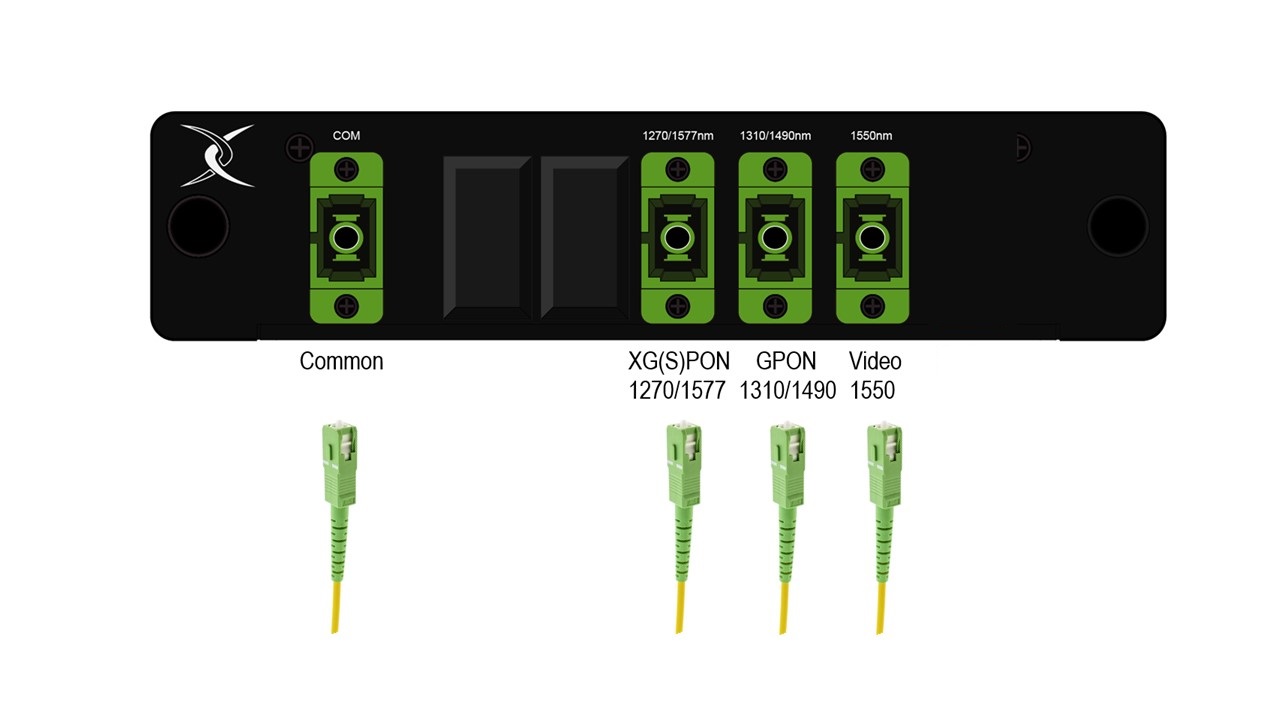

Standard Configuration:

• Common Port
• 1550nm Port
• GPON Port (1310/1490nm)
• XGS-PON Port (1270/1577nm)
