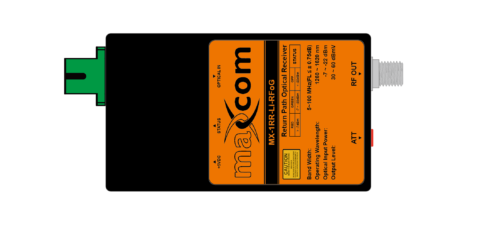

- 4 or 8 Way Fiber Optic Return Path Receiver (low optical input)
4 or 8 Way Fiber Optic Return Path Receiver (low optical input)
The MX RR-LI transforms return optical signals to RF signal output. The standard 1U chassis integrates 4 or 8 independent receiver modules, it can receive up to 256 return optical signals from burst mode mini-nodes or services for 256 RFoG optical network units (ONU)-Mini-Nodes.
- General Details
The MX RR-LI transforms return optical signals to RF signal output. The standard 1U chassis integrates 4 or 8 independent receiver modules, it can receive up to 256 return optical signals from burst mode mini-nodes or services for 256 RFoG optical network units (ONU)-Mini-Nodes.
High sensitivity for low optical input (to -32dBm) , provides flexibility for your optical link design. A front panel LCD displays the receiver’s operating status and parameters for ease of local operation and monitoring, in additional the optional SNMP network management interface comply with SCTE-HMS and IEC standards.

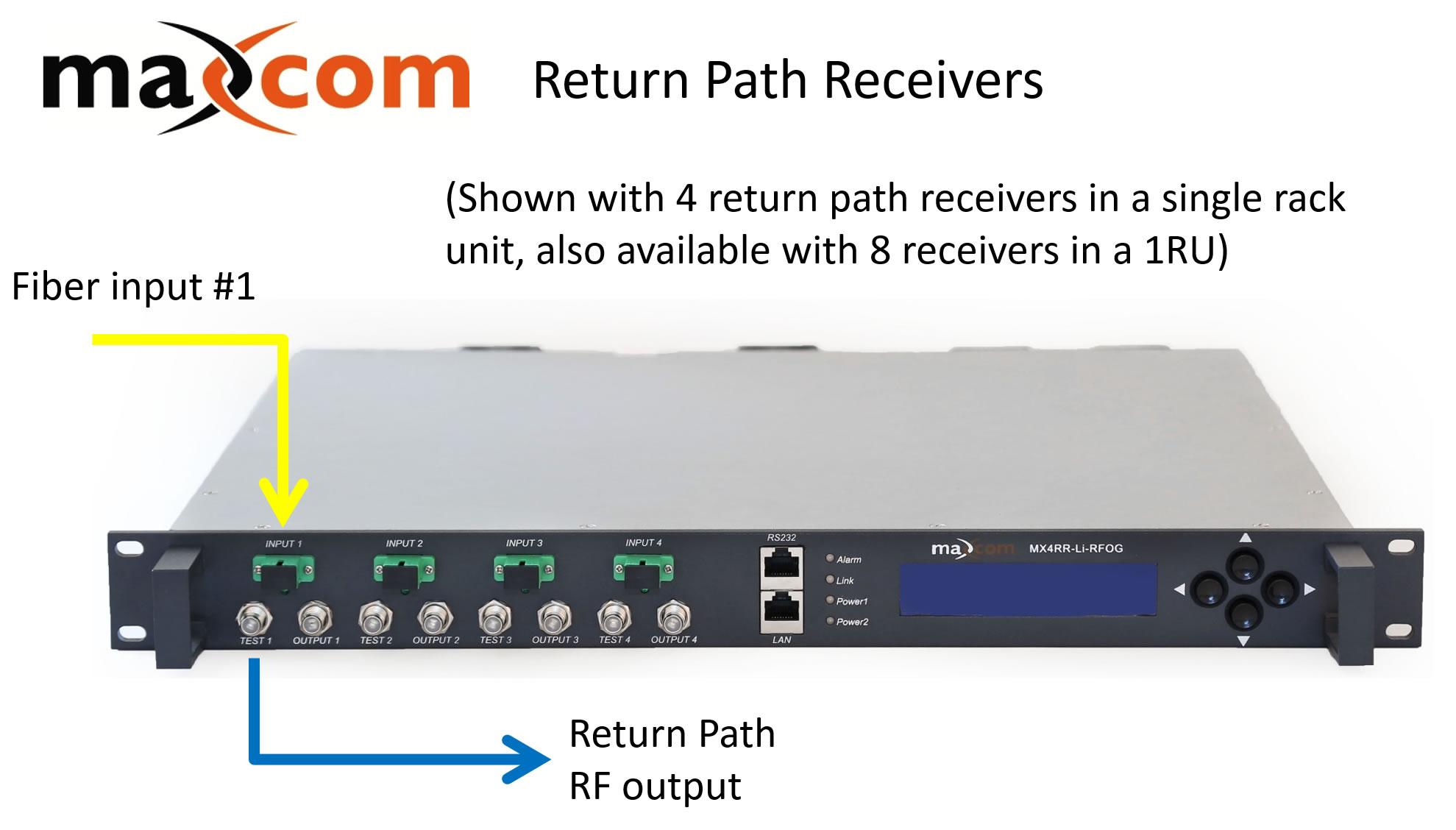

- Example Application
- Model Selection

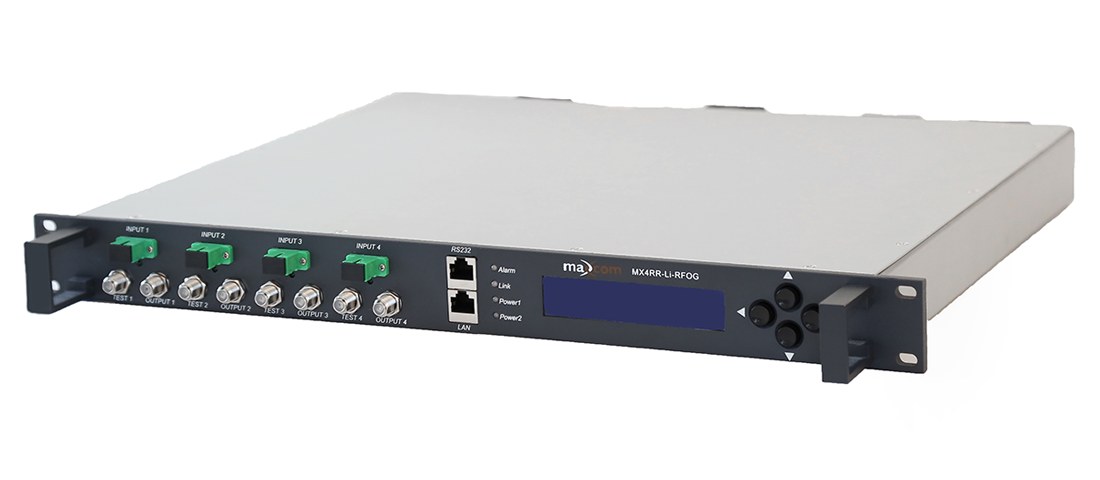

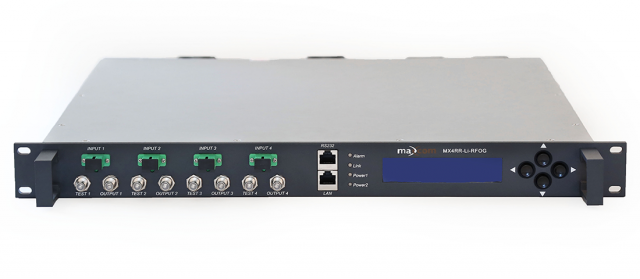

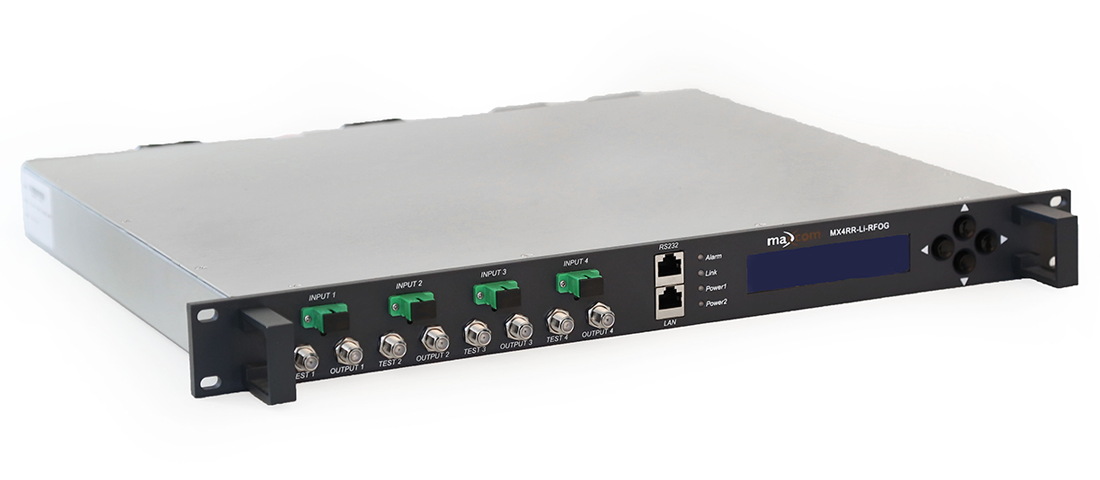

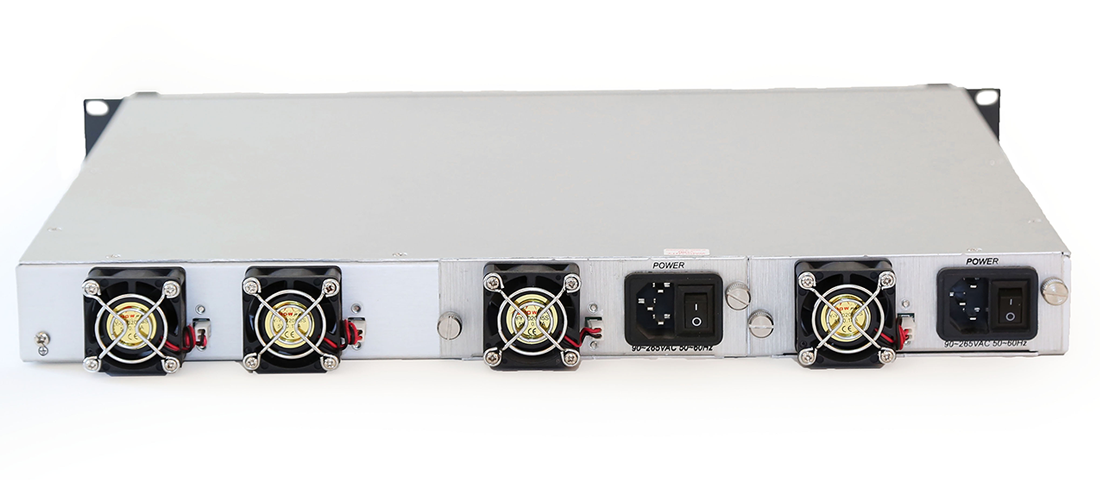

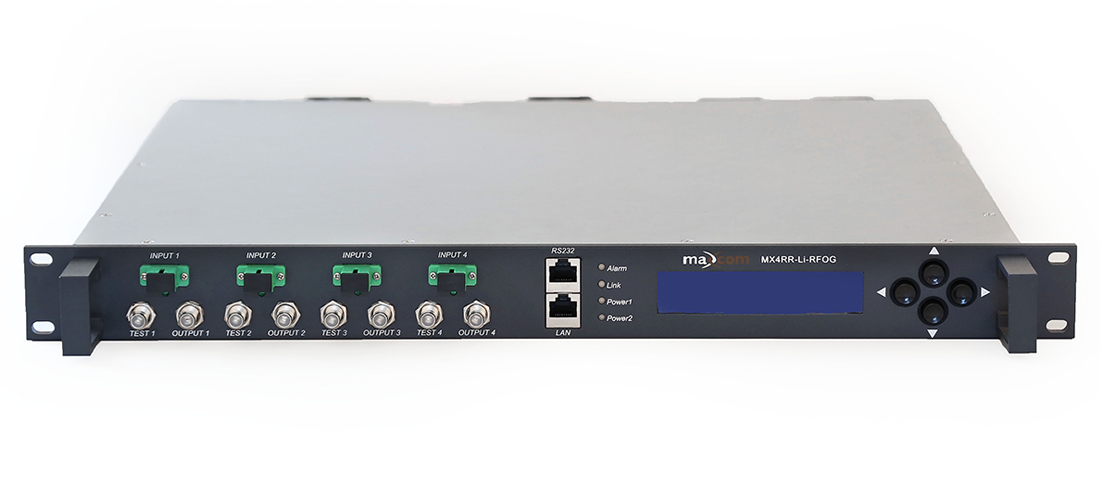

- MX4RR-LI – 4 Way Fiber Optic Return Path Receiver (low optical input)
- MX8RR-LI – 8 Way Fiber Optic Return Path Receiver (low optical input)
- Specifications
OPTICAL
- Wavelength: 1260~1620 (nm)
- Input Power Range: -16 to -23 (dBm) * Optimal recommended range, receiver will operate to -32 dBm
- Return Loss: >45.0 (dB)
- Power Instruction Precision: 5%
RF
- RF Passband: 5 MHz up to 204 MHz (5~204 MHz)
- Output Level: >= +30 to +60 (dBmV) when Input optical power is -20 dBm, ATT is 0dB, 4% OMI
- Flatness: <=+-0.75 (dB)
- Output Return Loss: >=16 (dB)
- Output Test Point: -20+-0.75 (dB)
- Isolation Between Channels: >-70 (dB)
- CNR: >=51 (dBc)
- CSO: >=60 (dBc)
- CTB: >=65 (dBc)
USER INTERFACE
- InGaAs PIN
USER INTERFACE
- Optical Connector: SC / APC
- Optical Fiber Type: Single-Mode Fiber
- RF Test Port Type: Metric F Head
- RF Output Port Type: Metric F Head
- Power Interface: AC 110V (-48 VDC optional)
GENERAL
- Dimension (W)x(H)x(L): 184x43x432 (mm)
- Power Supply: AC 60Hz 110/220V 30VA
