WDM Fiber Optic Multiplexer (Wave Division Multiplexer)
The MX WDM Fiber Optic Wavelength Division Multiplexer, enables 1310nm and 1550nm wavelengths to be transmitted simultaneously on the same fiber optic cable. The direction of the optical signals can be in the same direction or opposite directions.
- General Details
The MX WDM Fiber Optic Wavelength Division Multiplexer, enables 1310nm and 1550nm wavelengths to be transmitted simultaneously on the same fiber optic cable. The direction of the optical signals can be in the same direction or opposite directions.
Transparent to incoming data, the MX WDM effectively doubles existing cable capacity by multiplexing two separate channels over one single mode fiber. Dual two-channel units are also available. Each MX WDM unit separates incoming optical signals between 1310nm and 1550nm.
The MX WDM fiber optic connectors are SC or FC. Because it is a passive device, it requires no power.

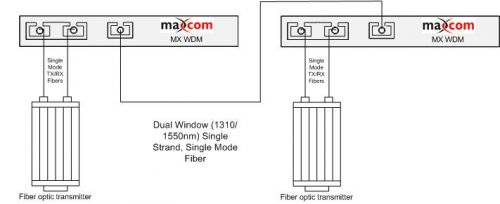

- Example Application
- Model Selection

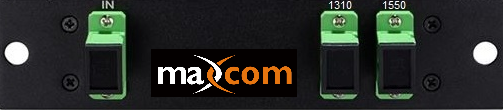

- MX WDM – 1310-1550 Fiber Optic Multiplexer
- Specifications
BANDWIDTH
- 1310/1550nm ± 15nm
- 1310nm 1
- 1550nm 1
- 1310nm+1550nm 1
OPTIC PORTS
- Connector *SC (LC optional)
INSERTION LOSS
- Standard <0.6dB
- High Isolation <0.6dB
